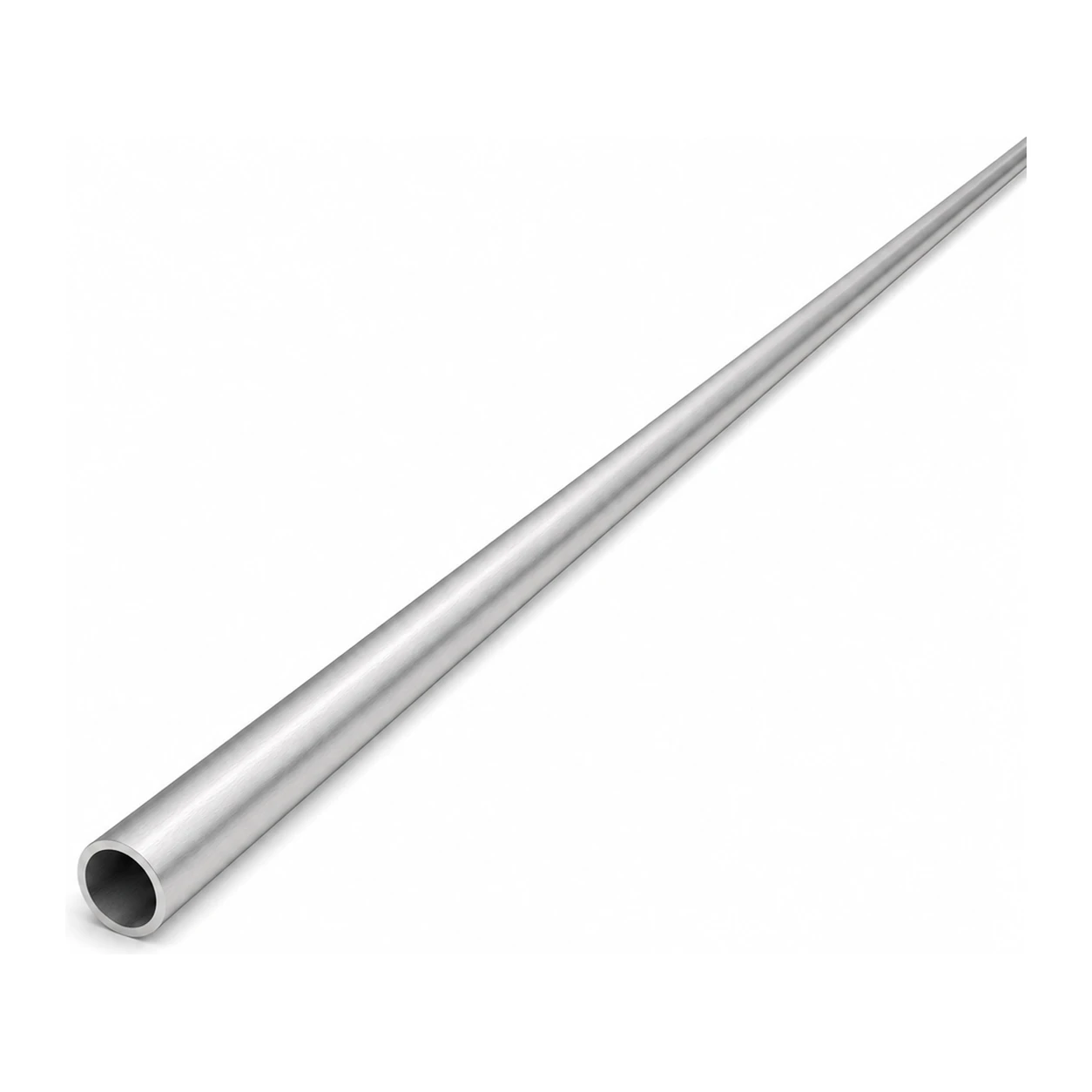

Round aluminium tube Ø10×1 mm – EN AW-6060 profile length 2000 mm
Leave feedback on the product
Round aluminium tube EN AW-6060 T6/T66 (AlMgSi0.5). Outer diameter 10 mm, wall thickness 1 mm, length 2000 mm. Weight 0.16 kg. Raw, non-anodised surface.
Product code: 001-639
Product features
[PIM] rury #146
- Material Aluminium
- Diameter 10
- Wall Thickness [mm] 1
- Length [mm] 2000
Description
Round aluminium tube Ø10×1 mm – EN AW-6060 profile length 2000 mm
Round aluminium tube Ø10×1 mm is a lightweight and durable closed profile with a circular cross-section, made from EN AW-6060 T6/T66 alloy (AlMgSi0.5 / PA38). With a net weight of just 0.08 kg/m and excellent corrosion resistance, it is ideal wherever structural longevity with minimal loading is required. The raw, non-anodised surface allows further processing – anodising, powder coating, or painting – depending on the project requirements.
6060 series aluminium in the T6/T66 temper combines good mechanical strength with excellent ductility. The tube can be easily cut, drilled, bent, and joined using standard workshop tools, resulting in shorter assembly times and reduced labour costs on site.
Technical specification
- Cross-section: closed round tube
- Outer diameter (D): 10 mm
- Wall thickness (T): 1 mm
- Length: 2000 mm
- Dimensions (W × H × L): 10 × 10 × 2000 mm
- Weight: 0.16 kg (0.08 kg/m × 2 m)
- Material: aluminium EN AW-6060 T6/T66 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
The round aluminium tube Ø10×1 mm is widely used in professional installation and structural applications. It is ideally suited as a component of aluminium structures, balustrades, handrails, frames, and load-bearing structures. Thanks to its elegant round profile, it is also popular in furniture manufacturing, decorative elements, as well as in model making and workshop projects. Availability across a range of diameters and wall thicknesses allows the optimal variant to be selected for any project.
Properties of EN AW-6060 alloy
- High corrosion resistance – no additional protective coatings required under standard operating conditions
- Excellent machinability – easy to cut, drill, bend, and join
- Low specific weight – approx. 2.7 g/cm³, significantly lighter than steel
- Good weldability – can be joined by TIG and MIG methods
- T6/T66 temper – precipitation hardening provides enhanced mechanical strength
