Round aluminium tube Ø100×5 mm – EN AW-6063 T6 profile length 2000 mm
0
Description

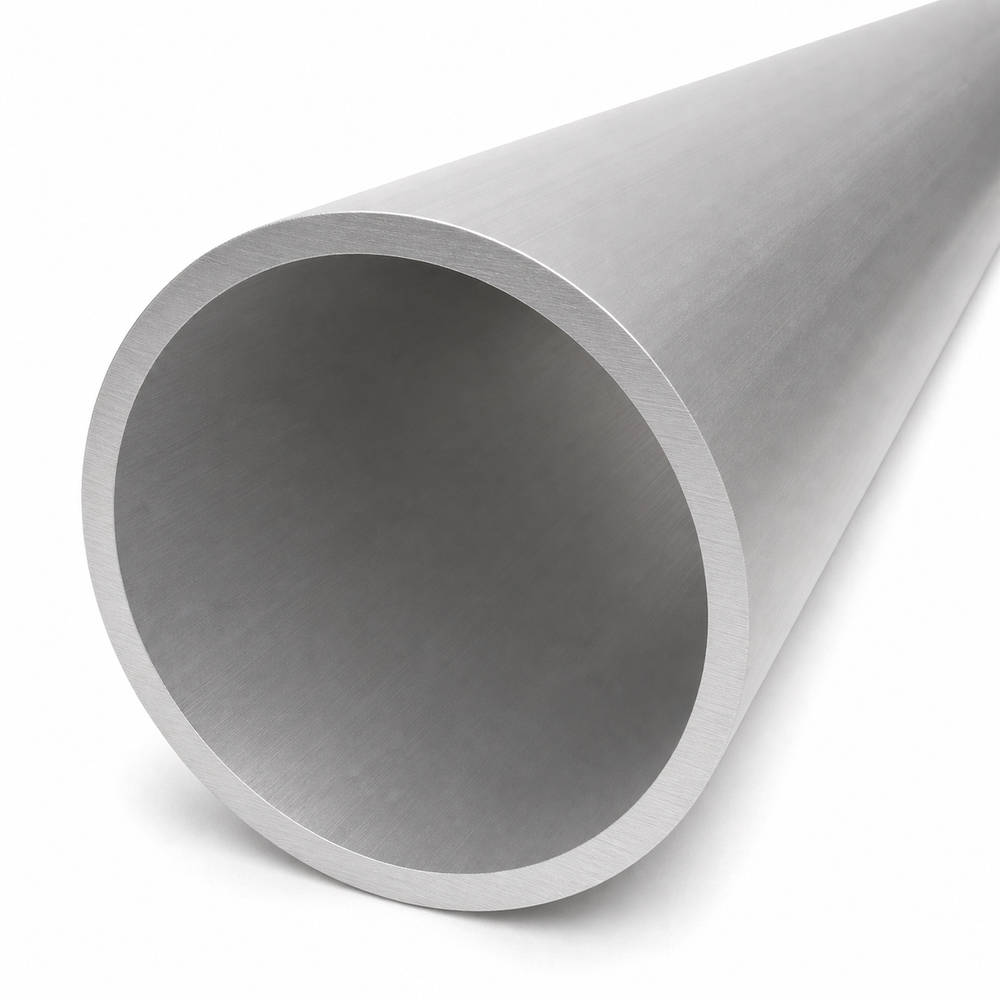

Round aluminium tube Ø100×5 mm – EN AW-6063 T6 profile length 2000 mm
Round aluminium tube Ø100×5 mm with a length of 2000 mm is a versatile closed profile made from EN AW-6063 T6 alloy (AlMgSi0.5 / PA38). Thanks to its excellent strength-to-weight ratio, this tube is suitable wherever lightweight construction, rigidity and corrosion resistance are required — from balustrades and handrails, through frames and load-bearing structures, to decorative elements and aluminium constructions.
The raw (non-anodised) surface allows for further processing — anodising, powder coating or polishing — depending on project requirements. The profile is easy to cut, drill, bend and join, which significantly speeds up assembly work on site.
Technical specification
- Cross-section: closed round tube
- Outer diameter (D): 100 mm
- Wall thickness (T): 5 mm
- Length: 2000 mm
- Dimensions (W × H × L): 100 × 100 × 2000 mm
- Weight: 8.06 kg (linear weight 4.03 kg/m)
- Material: aluminium EN AW-6063 T6 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and load-bearing frames
- Balustrades, handrails and barriers
- Frames, stands and furniture components
- Decorative and finishing elements
- Modelling and DIY projects
The EN AW-6063 T6 alloy offers excellent machinability and weldability, whilst providing high resistance to atmospheric corrosion. The tube is available in a range covering many combinations of diameters and wall thicknesses — making it easy to select the right profile for the specific requirements of your project.
Technical data
| Material | Aluminium |
| Diameter | 100 |
| Wall Thickness [mm] | 5 |
| Length [mm] | 2000 |
