Round aluminium bar 2017A T4 Ø160 mm – duralumin, L=2000 mm

Go to Product feedback

Round aluminium bar 2017A T4 (EN AW-2017A, AlCu4MgSi), Ø160 mm, length 2000 mm. Weight 112.60 kg. Raw, non-anodised surface. Duralumin alloy for CNC machining, turning, and milling.

Go to full description
with VAT without VAT
Price €1,257.37
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] prety-okragle #167

  • Material Aluminium
  • Diameter 160
  • Length [mm] 2000

Description

Round aluminium bar 2017A T4 Ø160 mm – duralumin, L=2000 mm

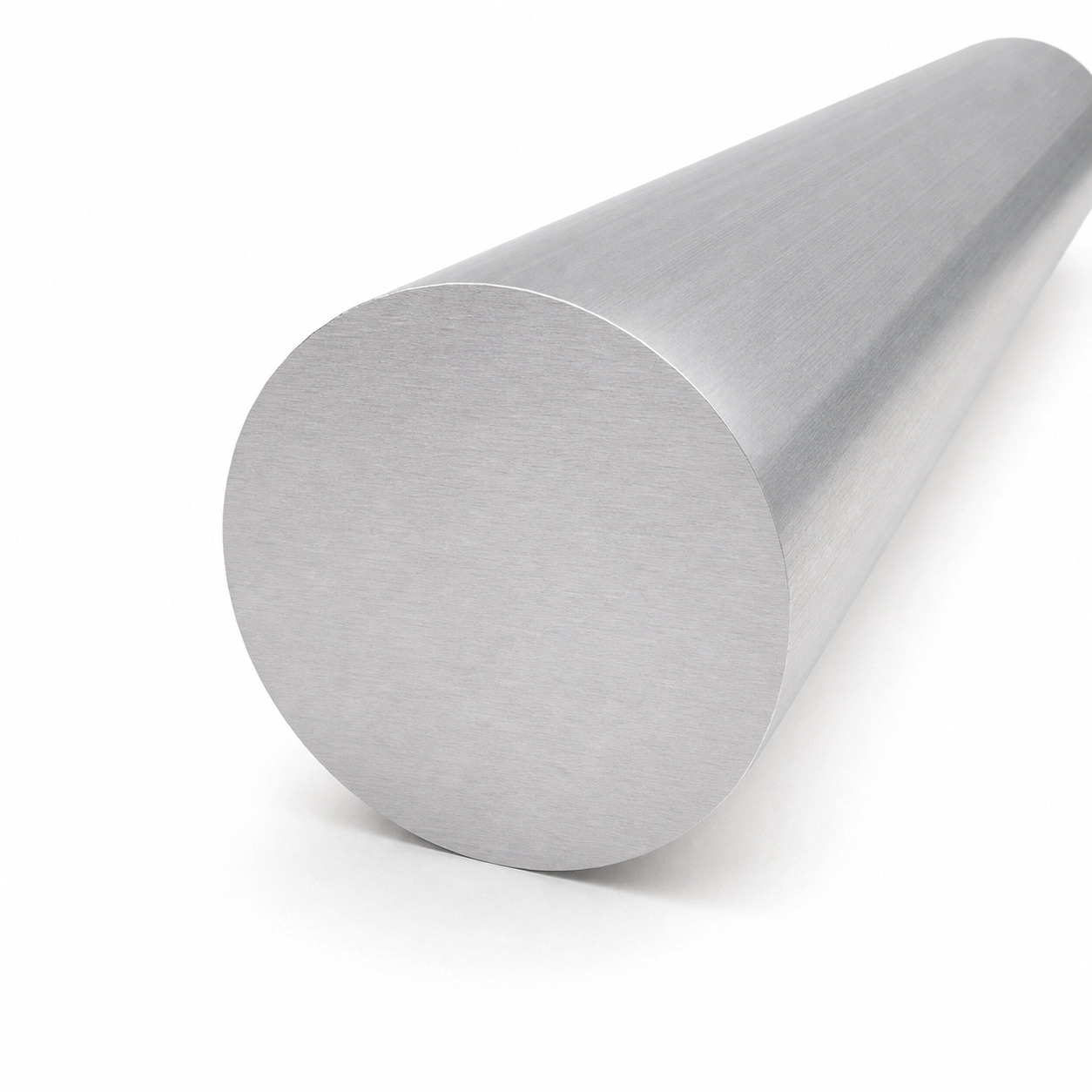

Round aluminium bar Ø160 mm in 2017A T4 alloy – view of full cross-section and raw surface
Round aluminium bar Ø160 mm in 2017A T4 alloy – view of full cross-section and raw surface

Round aluminium bar Ø160 mm in 2017A T4 alloy (duralumin) is a solid-section semi-finished product intended for advanced machining. The EN AW-2017A (AlCu4MgSi) alloy combines high mechanical strength with excellent machinability, making it an optimal choice for CNC workshops and manufacturing facilities producing machine components, shafts, pins, and bushings.

The bar is supplied in a 2000 mm length with a raw (non-anodised) surface, ready for further processing — turning, milling, drilling, and threading. Duralumin 2017A T4 is highly regarded in the engineering and structural industries for its favourable strength-to-weight ratio and dimensional stability after heat treatment.

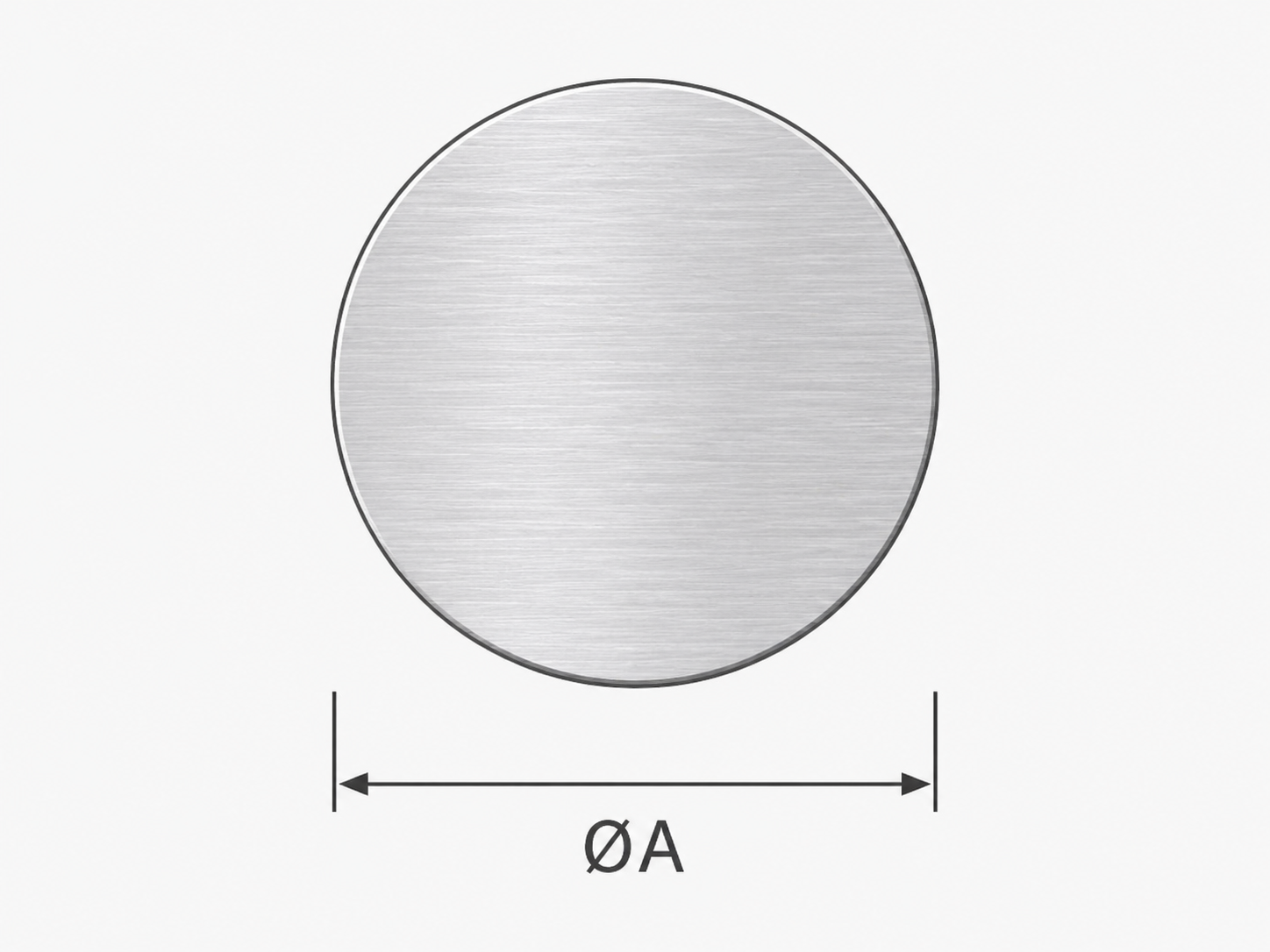

Cross-section diagram of a round bar with diameter ØA indicated
Cross-section diagram of a round bar with diameter ØA indicated

Technical specification

  • Section: solid round bar
  • Diameter (ØA): 160 mm
  • Length: 2000 mm
  • Dimensions (Ø × L): Ø160 × 2000 mm
  • Weight: 112.60 kg (56.30 kg/m)
  • Material: aluminium 2017A T4 (EN AW-2017A)
  • Alloy designation: AlCu4MgSi (duralumin)
  • Surface: raw (non-anodised)

Applications

  • Turning and CNC machining — excellent machinability of 2017A alloy
  • Production of shafts, pins, and bushings
  • Components for industrial machinery and equipment
  • Mechanical and structural assemblies
  • Modelling and prototyping

The EN AW-2017A alloy in T4 condition (solution heat-treated and naturally aged) provides an optimal combination of hardness, tensile strength, and ductility. It is one of the most widely used duralumin alloys in mechanical machining — also known under the designations PA6 and 3.1325. The bar is available in a range of diameters, allowing the optimal size to be selected for a specific project and minimising material waste.
