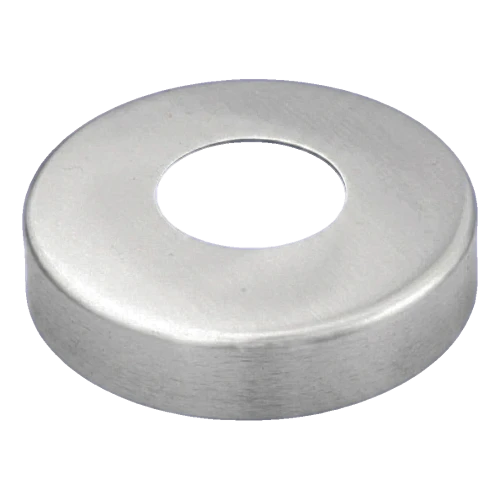

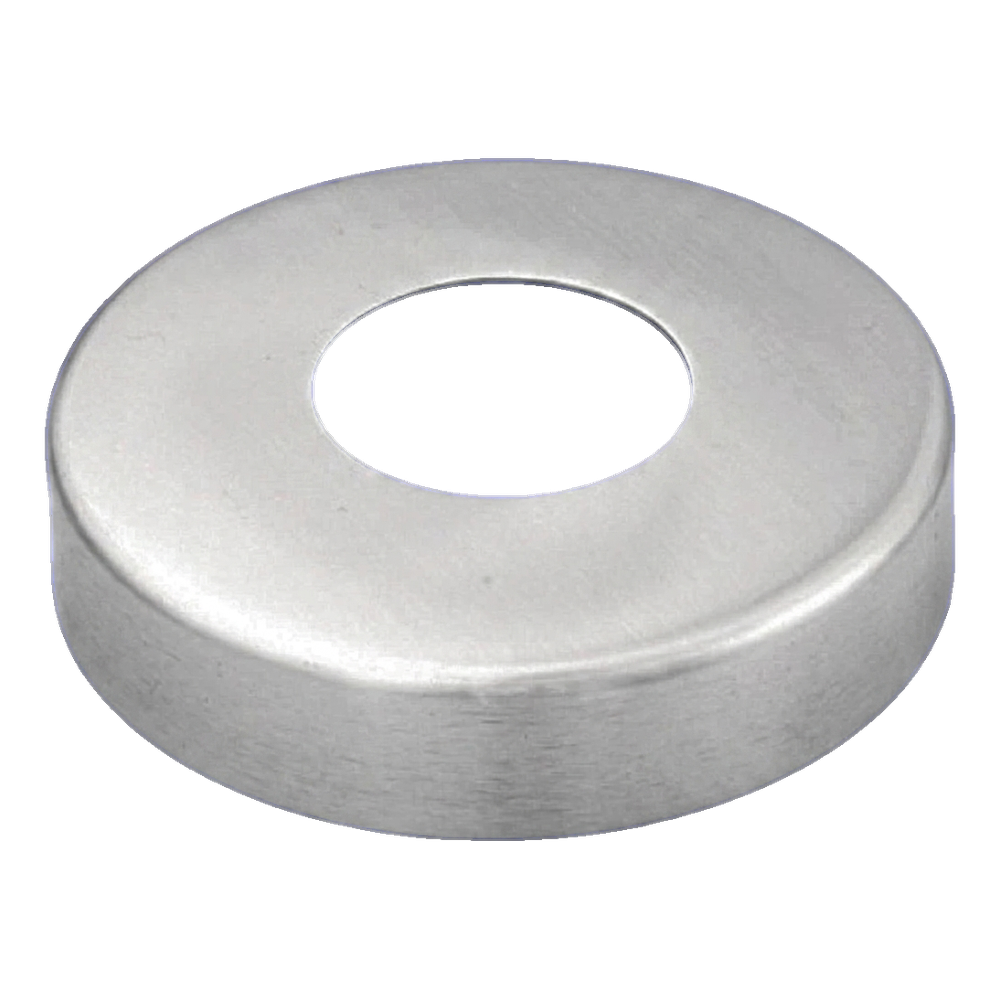

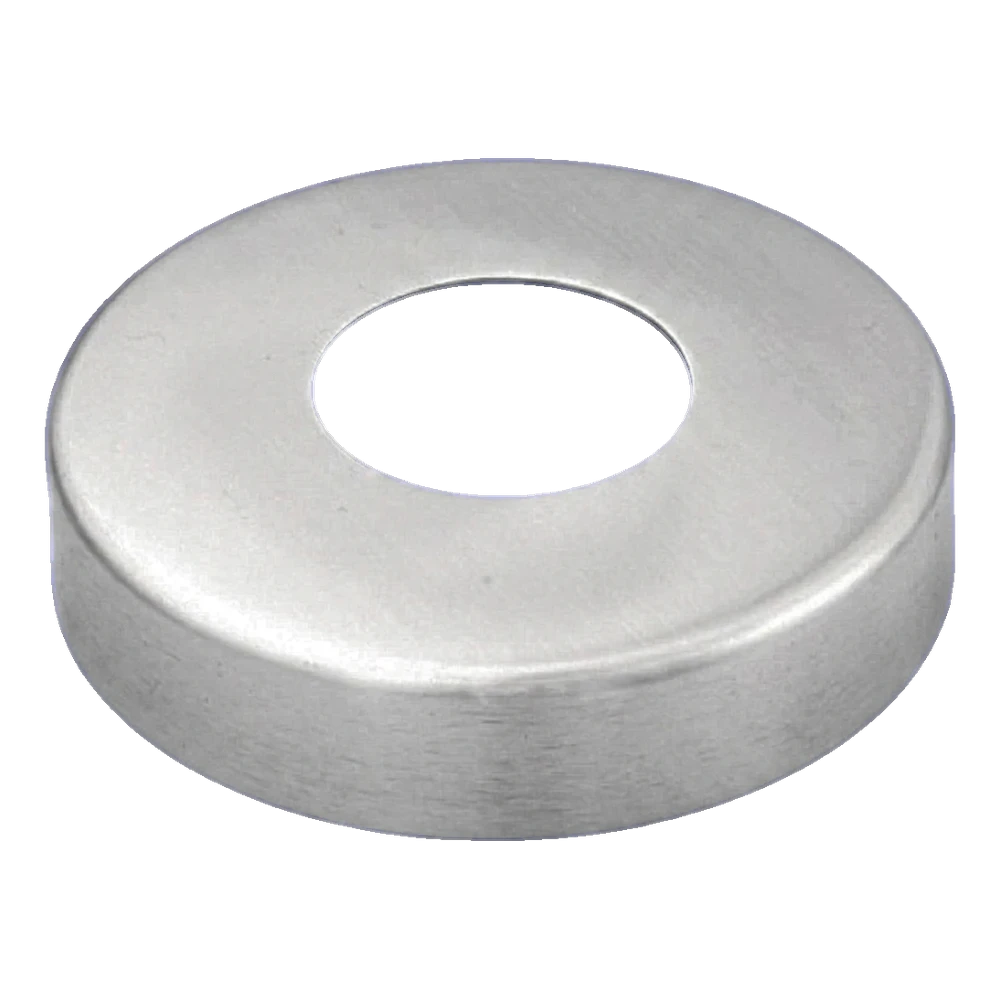

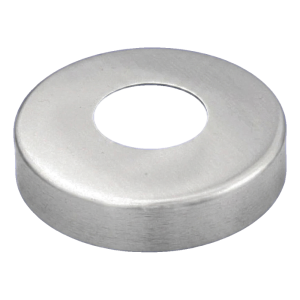

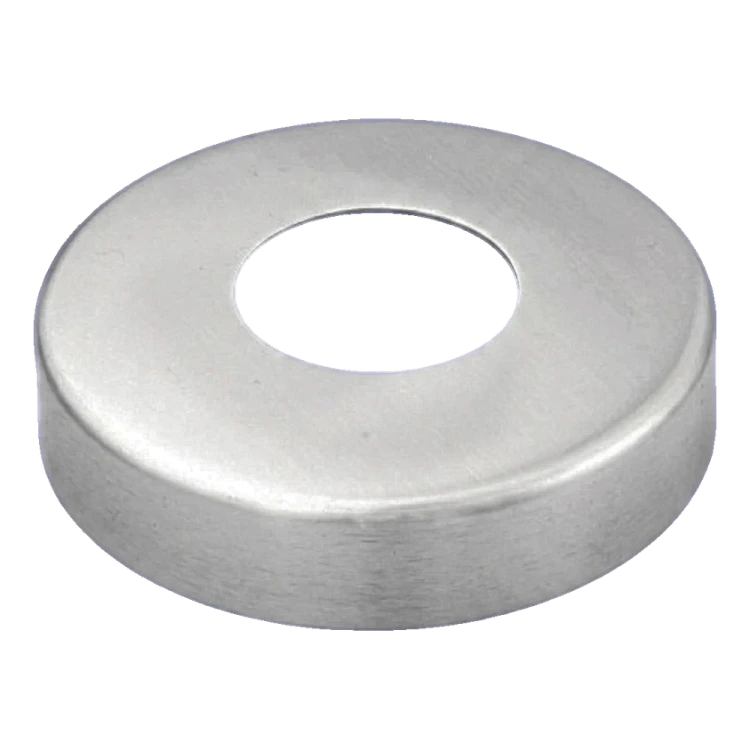

Round Concealing Rosette for Ø48.3 mm Tube – AISI 304 Stainless Steel, Satin
0
Description
Round Concealing Rosette for Ø48.3 mm Tube – AISI 304 Stainless Steel, Satin
Round concealing rosette designed to cover mounting holes around tubes with diameter Ø48.3 mm in stainless steel balustrades. Gives the structure an aesthetic, finished appearance — eliminates visible gaps and imperfections where the tube passes through floors, ceilings or load-bearing balustrade elements.
Made from AISI 304 stainless steel with satin (brushed) finish, which ensures corrosion resistance and visual consistency with other elements of stainless steel balustrade systems. The satin surface effectively masks minor scratches and operational soiling, allowing the cover to maintain its aesthetic appearance for years of use.
Compact form with external diameter of 105 mm and height of only 18 mm means the rosette discretely blends into the structure without visual dominance. Wall thickness of 1 mm guarantees appropriate rigidity with low weight — the element weighs only 0.09 kg, facilitating installation and not burdening the structure.

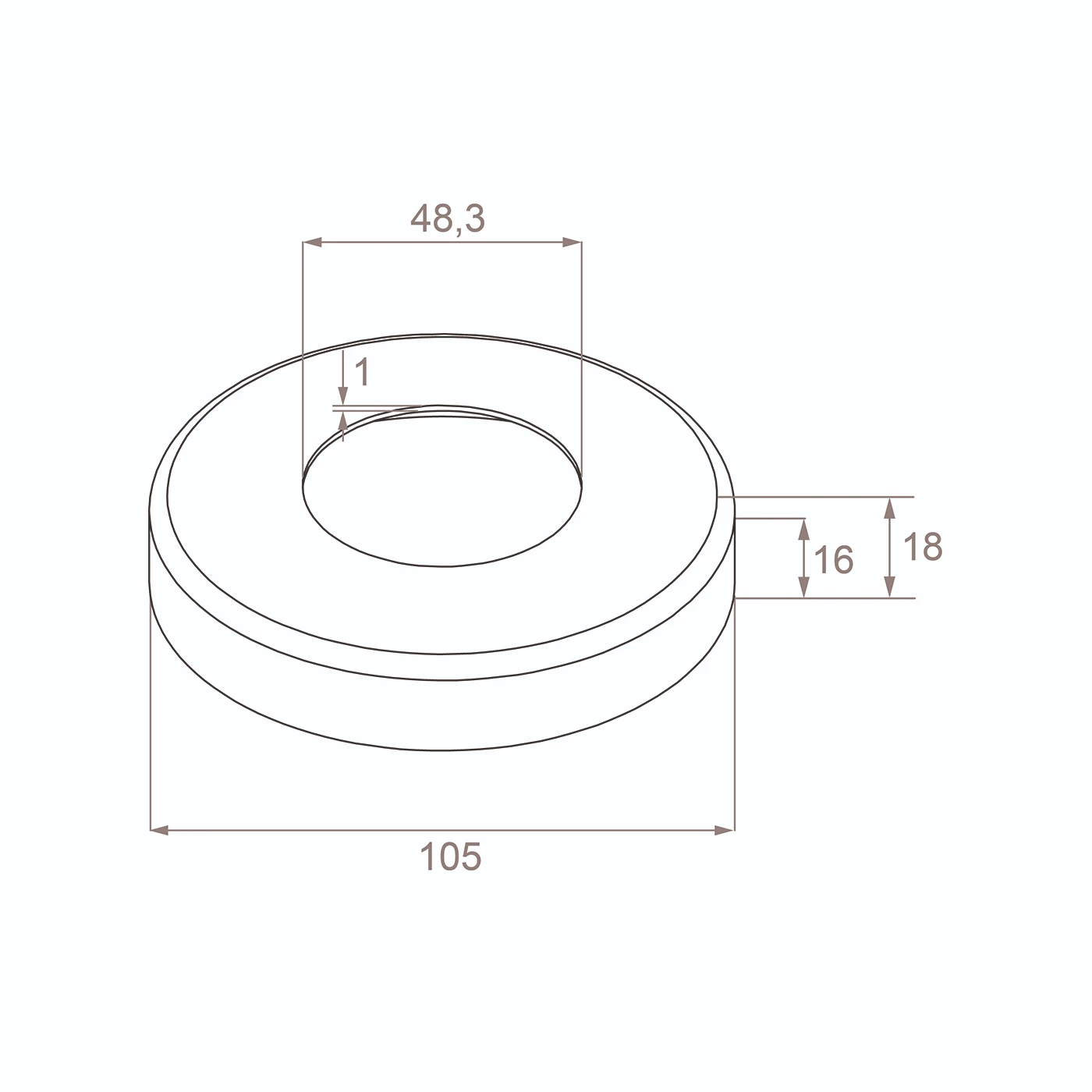

Dimensions and Technical Data
- External diameter (D): 105 mm
- Hole diameter (d): 48.3 mm
- Total height (H): 18 mm
- Side edge height: 16 mm
- Wall thickness (t): 1 mm
- Material: AISI 304 stainless steel
- Surface finish: satin (brushed)
- Shape: round
- Weight: 0.09 kg
- Compatibility: Ø48.3 mm balustrade system
- EAN: 5901289673877
Application
The rosette is dedicated to stainless steel balustrade systems based on tubes with diameter 48.3 mm. It serves as a finishing element masking mounting holes — in places where posts or tubes pass through floors, ceilings, floor anchors or other structural elements. Thanks to precisely matched hole diameter, the cover fits tightly around the tube, giving the connection a professional and clean appearance.
AISI 304 stainless steel ensures durability both indoors and in partially sheltered outdoor spaces. The satin finish harmonises with handrails, posts and connectors in analogous surface variants, creating an aesthetically cohesive balustrade whole.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 48.3 mm |
