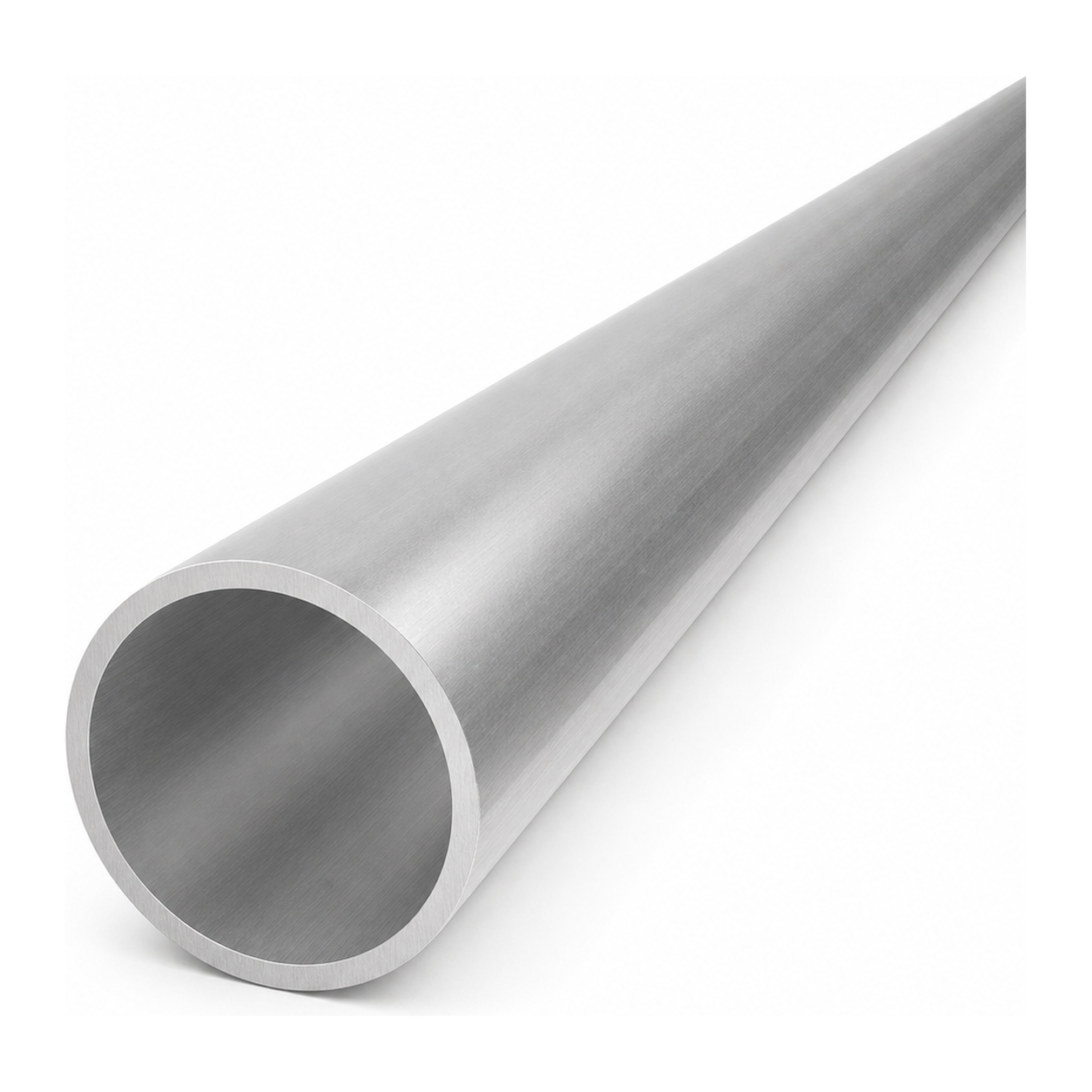

Round Aluminium Tube Ø50×3 mm – EN AW-6063 Profile, Length 2000 mm
Leave feedback on the product
Round aluminium tube EN AW-6063 T6 (PA38). Outer diameter 50 mm, wall thickness 3 mm, length 2000 mm. Weight 2.40 kg. AlMgSi0.5 alloy, raw surface, non-anodised.
Product code: 001-824
Product features
[PIM] rury #146
- Material Aluminium
- Diameter 50
- Wall Thickness [mm] 3
- Length [mm] 2000
Description
Round Aluminium Tube Ø50×3 mm – EN AW-6063 Profile, Length 2000 mm
Round aluminium tube Ø50×3 mm is a versatile closed profile with a circular cross-section, designed for constructing lightweight and durable structures. Thanks to the use of EN AW-6063 T6 (PA38) alloy, the tube combines high rigidity with low self-weight and natural corrosion resistance — without the need for additional protective coatings.
The profile, with a length of 2000 mm and a weight of just 2.40 kg, is easy to transport and process. It can be freely cut, drilled, bent, and joined mechanically or welded, making it an ideal component for installation companies undertaking bespoke structures.
Applications
- Aluminium structures and load-bearing frames
- Balustrades and handrails
- Frames and supports for installations
- Furniture and fixture components
- Decorative and finishing elements
- Modelling and prototype projects
Technical Specification
- Cross-section: closed round tube
- Outer diameter (D): 50 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Dimensions (W × H × L): 50 × 50 × 2000 mm
- Weight: 2.40 kg (1.20 kg/m)
- Material: aluminium PA38 (EN AW-6063 T6), alloy AlMgSi0.5
- DIN standard designation: 3.3206
- Surface: raw (non-anodised)
The EN AW-6063 T6 alloy is characterised by excellent workability — it is suitable for anodising, powder coating, and welding. The tube is available in a range covering many diameter and wall thickness variants, allowing the optimal profile to be selected for a specific project.
