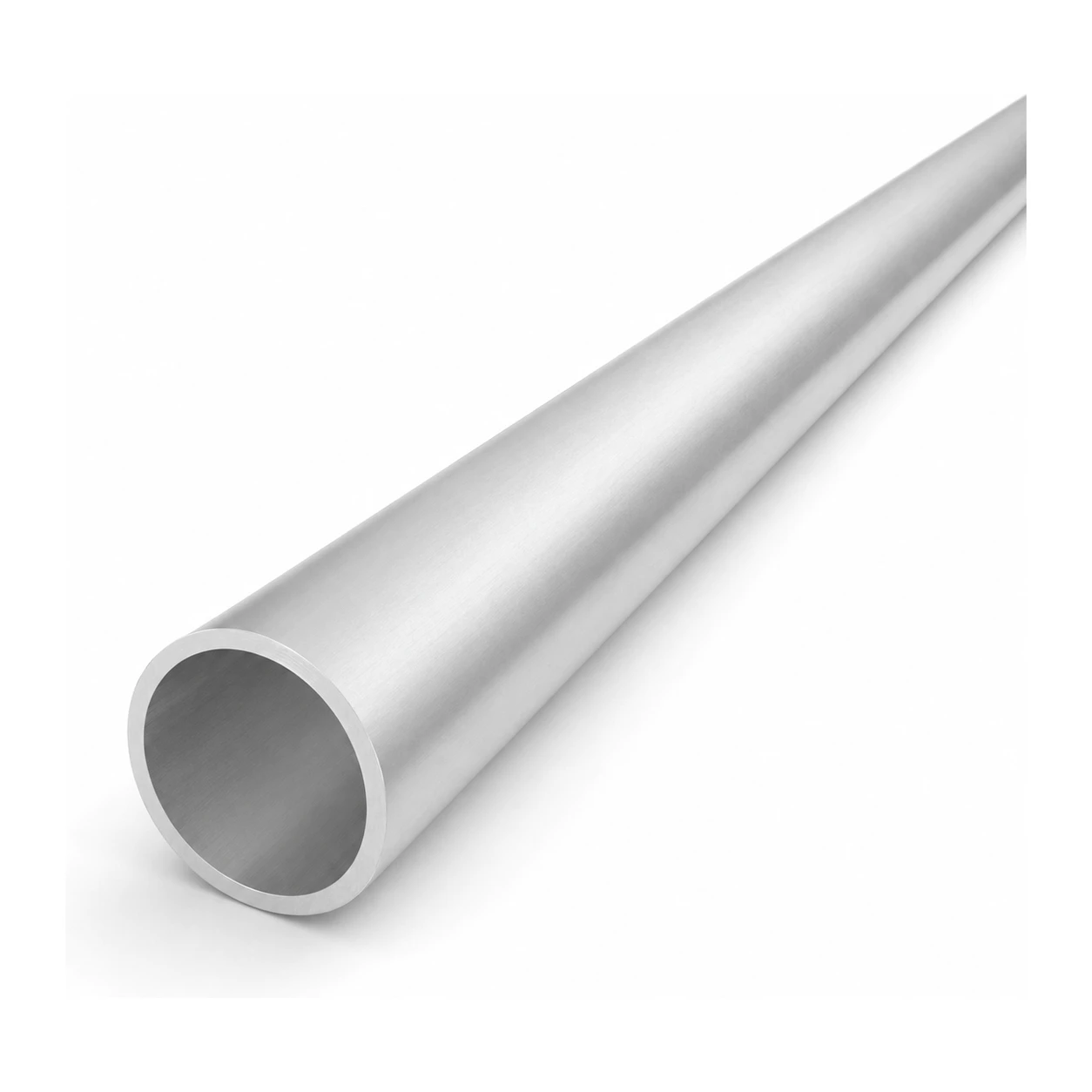

Round Aluminium Tube Ø40×3 mm – EN AW-6060 T6 Profile, Length 2000 mm
0
Description
Round Aluminium Tube Ø40×3 mm – EN AW-6060 T6 Profile, Length 2000 mm
The round aluminium tube Ø40×3 mm is a versatile closed profile with a circular cross-section, made from EN AW-6060 T6 alloy (AlMgSi0.5 / PA38). Combining low weight with high rigidity and natural corrosion resistance, this tube is ideally suited for aluminium structures, balustrades, frames, and mounting assemblies. The 2000 mm length facilitates transport and allows convenient cutting to suit the requirements of any specific project.
Aluminium in the T6 temper (solution heat-treated and artificially aged) delivers enhanced mechanical properties, whilst the raw, non-anodised surface allows complete freedom for further processing — cutting, drilling, bending, welding, as well as anodising or powder coating to your own specification.
Technical Specification
- Cross-section: closed round tube
- Outer diameter (D): 40 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Dimensions (W × H × L): 40 × 40 × 2000 mm
- Weight: 1.92 kg (0.96 kg/m)
- Material: aluminium PA38 (EN AW-6060 T6), alloy AlMgSi0.5
- EN material number: 3.3206
- Surface: raw (non-anodised)
Applications
The round aluminium tube Ø40×3 mm is widely used wherever a lightweight yet strong structure is required. Typical applications include:
- Aluminium structures — frames, load-bearing structures, supports
- Balustrades and handrails — ideal diameter for gripping by hand
- Frameworks and frames — lightweight enclosures, stands, shelving
- Furniture — legs, table and chair frames
- Decorative elements — trims, architectural details
- Modelling and DIY — easy to work by hand and machine
The tube is available in a range covering many combinations of diameter and wall thickness, allowing the optimum profile to be selected for any specific load and application.
Technical data
| Material | Aluminium |
| Diameter | 40 |
| Wall Thickness [mm] | 3 |
| Length [mm] | 2000 |
