Round Aluminium Tube Ø30×5 mm EN AW-6063 – Length 2000 mm
0
Description
Round Aluminium Tube Ø30×5 mm EN AW-6063 – Length 2000 mm

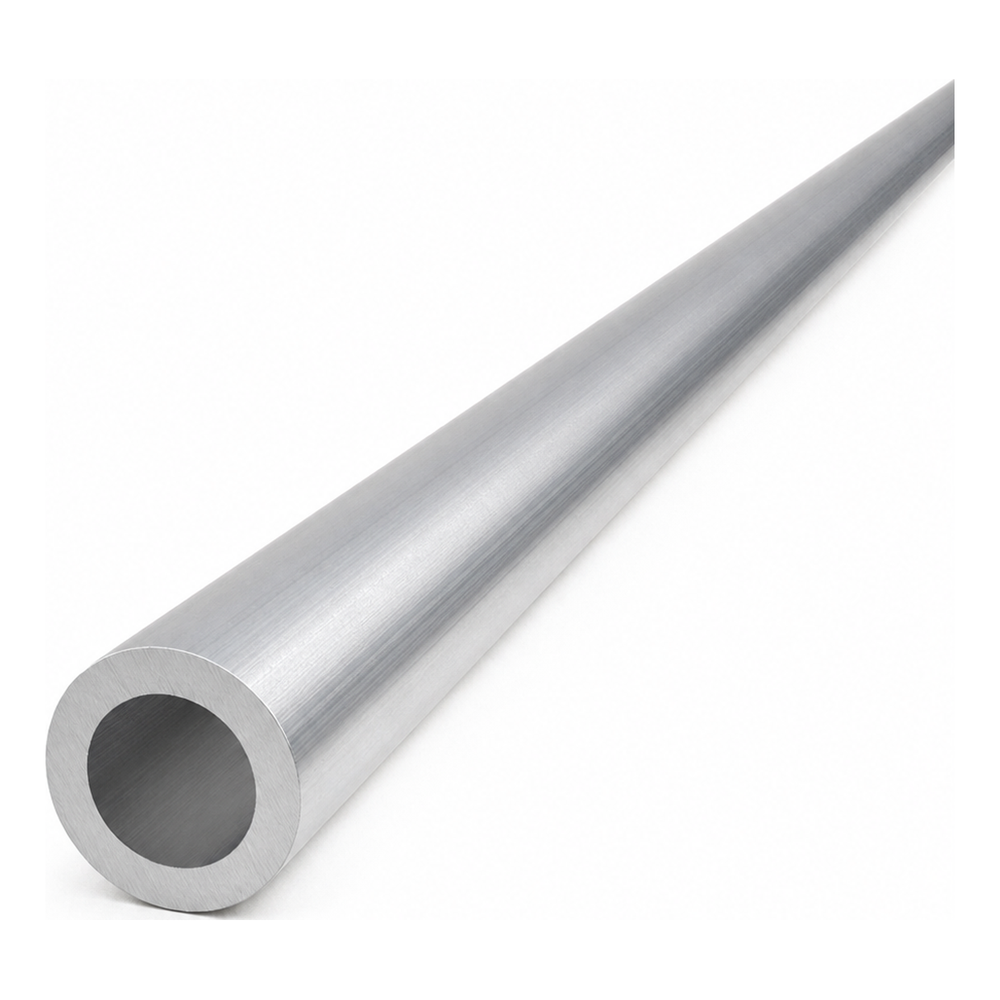

Round aluminium tube Ø30×5 mm is a closed profile with a circular cross-section, made from EN AW-6063 T6 aluminium alloy (PA38, AlMgSi0.5). Thanks to its excellent strength-to-weight ratio, it is an ideal structural material for installation companies undertaking projects involving balustrades, frames, and aluminium structures.
The AlMgSi0.5 alloy in T6 temper provides high rigidity, excellent corrosion resistance, and ease of machining — the tube lends itself to cutting, drilling, bending, and joining without the need for specialist tools. The raw (unanodised) surface allows for further finishing treatments, including anodising or powder coating, in accordance with the requirements of a specific project.
Technical Specification
- Cross-section: closed circular tube
- Outer diameter (D): 30 mm
- Wall thickness (T): 5 mm
- Length: 2000 mm
- Dimensions (W × H × L): 30 × 30 × 2000 mm
- Weight: 2.12 kg (1.06 kg/m)
- Material: aluminium EN AW-6063 T6 (PA38, AlMgSi0.5, 3.3206)
- Surface: raw (unanodised)
Applications
- Aluminium structures and load-bearing frames
- Balustrades and handrails
- Mounting frames and brackets
- Furniture and decorative elements
- Modelling and DIY projects
The tube is available in a wide dimensional range — various outer diameters and wall thicknesses allow the optimal profile to be selected for any application. The 5 mm wall thickness of this variant provides increased rigidity and load-bearing capacity, making it particularly suited to more demanding structural applications.
Technical data
| Diameter | 30 |
| Material | Aluminium |
| Wall Thickness [mm] | 5 |
| Length [mm] | 2000 |
