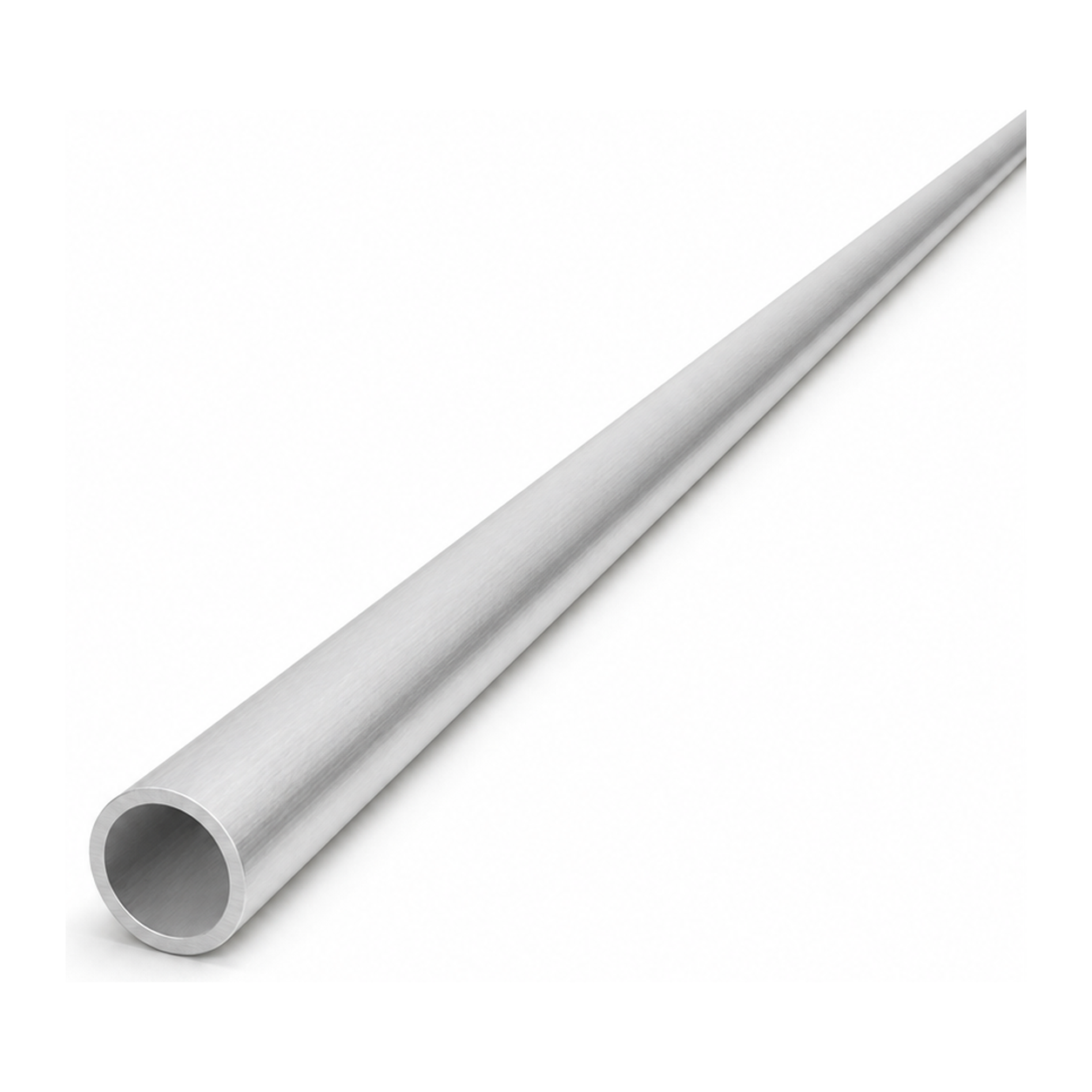

Round Aluminium Tube Ø16×1.5 mm EN AW-6063 – Length 2000 mm
Leave feedback on the product
Round aluminium tube EN AW-6063 T6 (PA38 / AlMgSi0.5). Outer diameter 16 mm, wall thickness 1.5 mm, length 2000 mm. Weight 0.36 kg. Raw, non-anodised surface.
Product code: 001-803
Product features
[PIM] rury #146
- Material Aluminium
- Diameter 16
- Wall Thickness [mm] 1.5
- Length [mm] 2000
Description
Round Aluminium Tube Ø16×1.5 mm EN AW-6063 – Length 2000 mm
Round aluminium tube Ø16×1.5 mm is a versatile closed profile with a circular cross-section, manufactured from EN AW-6063 T6 alloy (PA38 / AlMgSi0.5). Thanks to its lightweight construction, high rigidity and natural corrosion resistance, it is ideal for aluminium structures, frames, railings and wherever a durable and easy-to-machine profile section is required.
The tube is supplied in a 2000 mm length with a raw (non-anodised) surface, allowing further processing – cutting, drilling, bending, anodising or powder coating as required by the project. The weight of a single length is just 0.36 kg, making it easy to transport and install.
Technical Specification
- Cross-section: closed round tube
- Outer diameter (D): 16 mm
- Wall thickness (T): 1.5 mm
- Length: 2000 mm
- Dimensions (W × H × L): 16 × 16 × 2000 mm
- Weight: 0.36 kg (0.18 kg/m)
- Material: aluminium PA38 (EN AW-6063 T6), alloy AlMgSi0.5 (numerical designation 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and frameworks
- Balustrades and handrails
- Frames and load-bearing elements
- Furniture and decorative components
- Modelling and DIY projects
The EN AW-6063 T6 alloy offers an excellent strength-to-weight ratio, very good weldability and ease of machining. The tube is available in a range covering many diameters and wall thicknesses, allowing the optimum profile to be selected for any project.
