Round Aluminium Bar Ø110 mm EN AW-2017A T4 – Length 2000 mm
0
Description

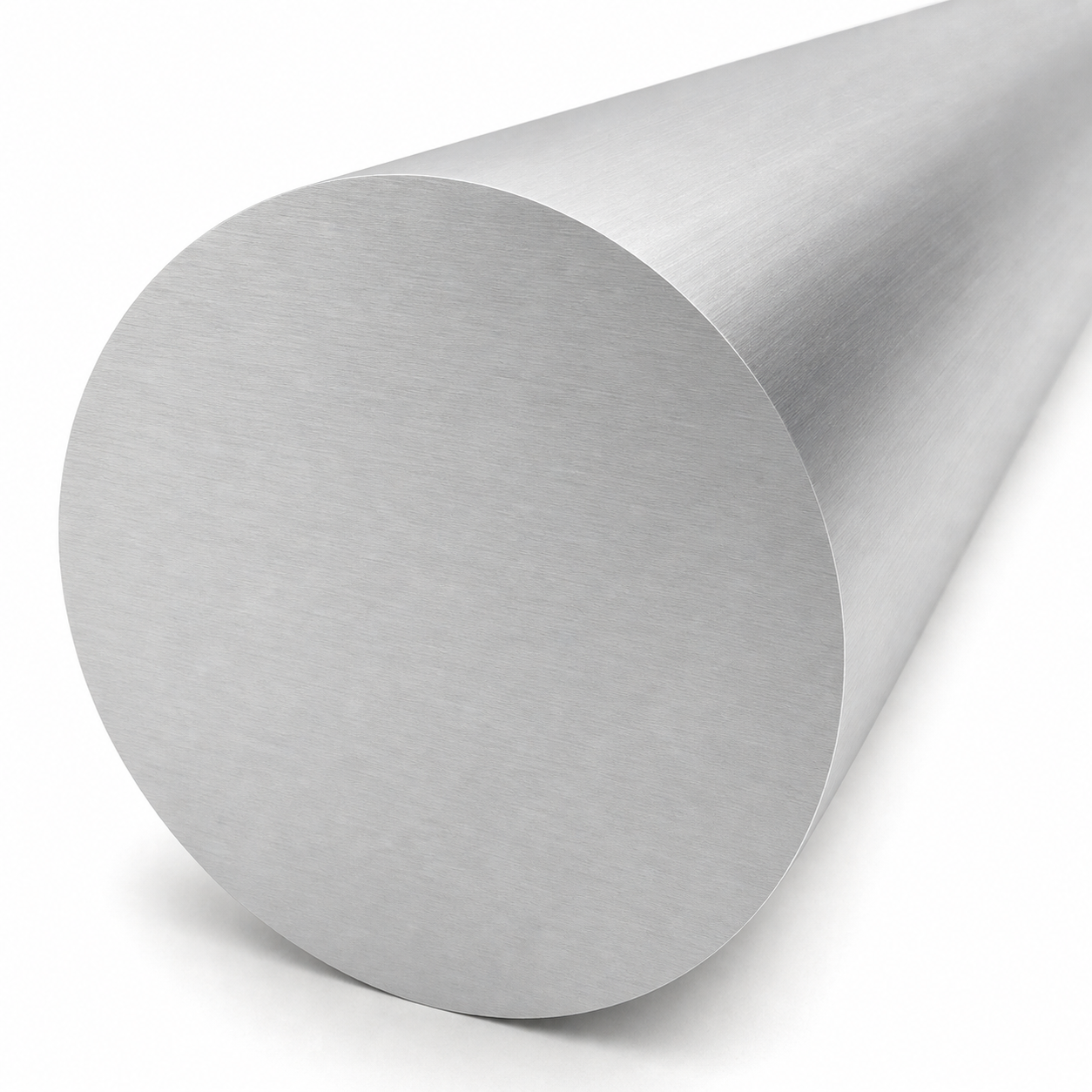

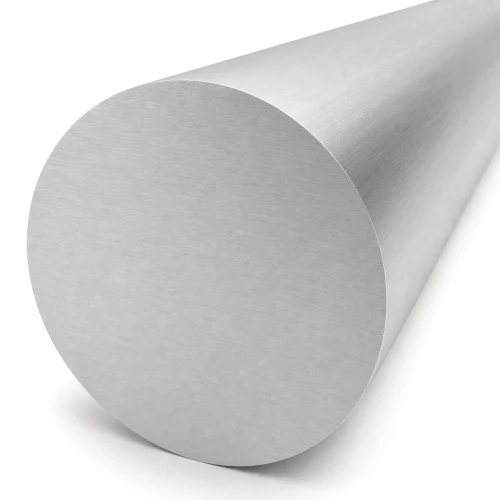

Round Aluminium Bar Ø110 mm EN AW-2017A T4 – Length 2000 mm
Round aluminium bar Ø110 mm in alloy EN AW-2017A T4 (duralumin) is a high-quality semi-finished product intended for professional machining. The 2017A alloy belongs to the group of high-strength copper-based duralumins (AlCu4MgSi), which guarantees excellent machinability — both on conventional lathes and CNC machining centres. The raw, non-anodised surface allows for further finishing operations in accordance with the requirements of a specific project.
Thanks to its large diameter of 110 mm, the bar is ideally suited for turning large-dimension components — shafts, pins, bushings, as well as custom machine and equipment parts. The length of 2000 mm allows for economical cutting of the material and minimises waste during series production.
Technical Specification

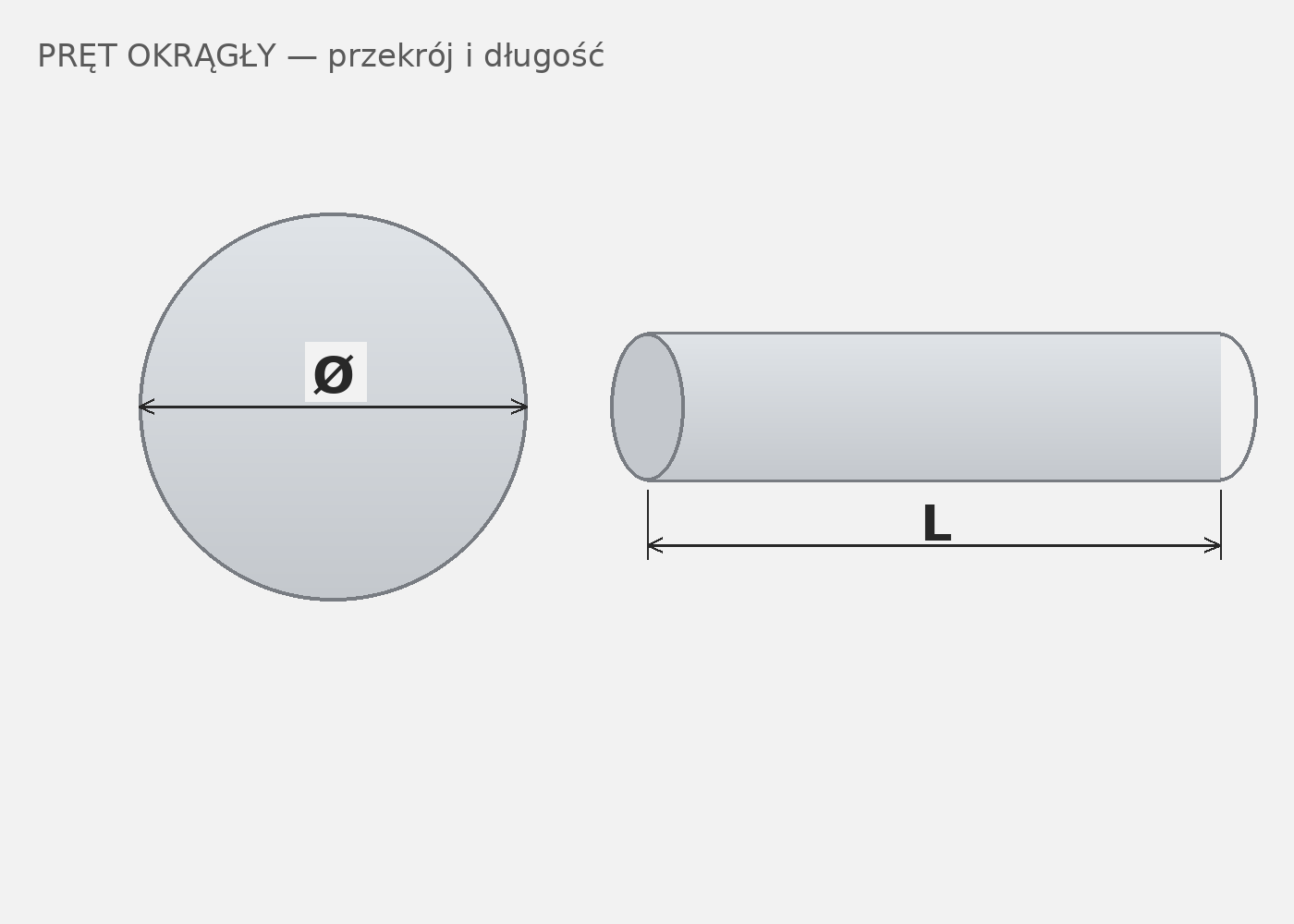

- Cross-section: solid round
- Diameter (Ø): 110 mm
- Length (L): 2000 mm
- Dimensions (Ø × L): Ø110 × 2000 mm
- Weight: 53.22 kg (linear density 26.61 kg/m)
- Material: aluminium EN AW-2017A T4 (AlCu4MgSi)
- Alloy designations: EN AW-2017A, AlCu4MgSi, PA6, 3.1325
- Delivery condition: T4 (solution heat-treated and naturally aged)
- Surface: raw (non-anodised)
Properties of EN AW-2017A T4 Alloy
Alloy 2017A (duralumin) is a classic aluminium-copper alloy, valued in the engineering industry for its exceptional combination of high mechanical strength and very good machinability. Turning, milling, and drilling operations proceed smoothly — the chip breaks correctly, which is essential when producing precision components on CNC machining centres.
Applications
- Turning and CNC machining — shafts, pins, bushings, axles
- Parts for machinery and industrial equipment
- Structural components requiring high strength
- Modelling and prototyping
- Series production of round cross-section components
The bar is available in a wide range of diameters, allowing selection of the optimal dimension for a specific project and minimising machining allowances.
Technical data
| Material | Aluminium |
| Diameter | 110 |
| Length [mm] | 2000 |
