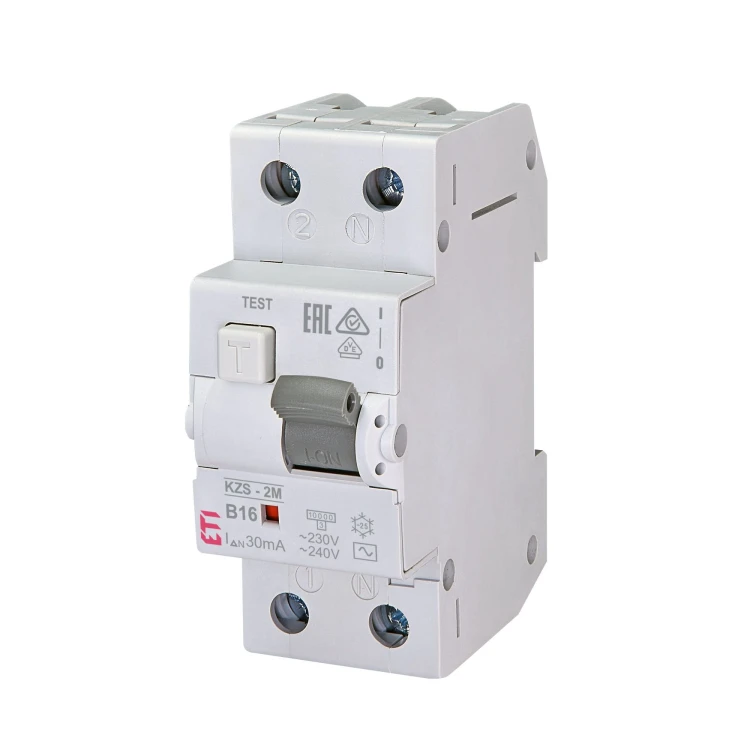

Residual current circuit breaker with overcurrent protection B 16A 1P+N 30mA type AC KZS-2M AC B16/0.03 002173104 ETI
product unavailable
add to wish list
Description
Residual current circuit breaker with overcurrent protection B 16A 1P+N 30mA type AC KZS-2M AC B16/0.03 002173104 ETI
Residual current circuit breaker with overcurrent protection B 16A 1P+N 30mA type AC KZS-2M AC B16/0.03 002173104 by ETI referred to as a differential or RCD (Residual Current Device), is a device whose main purpose is to disconnect a circuit when an inappropriate level of outgoing current is detected in relation to the incoming current. It acts as protection against electric shock during both indirect and direct contact.
Residual current circuit breakers with overcurrent protection KZS is a combination of an earth leakage circuit breaker and an overcurrent circuit breaker. These products quickly switch off faulty electrical circuits. They are manufactured in a two-pole version, which means that always both poles are switched off simultaneously. The sealed and precise design provides full protection against indirect contact. The possibility of connecting the power supply from above and below, facilitates mounting on a TH35 rail.
Specification
Available Configuration
Files to download:
Technical data
| Circuit breaker type | RCD with overcurrent protection |
| Number of poles | 1P+N |
| Rated current [A] | 16A |
| Residual Current [mA] | 30 mA |
| Trip characteristic | AC |
| Brand | ETI |
| Overcurrent Trip Characteristic | B |
