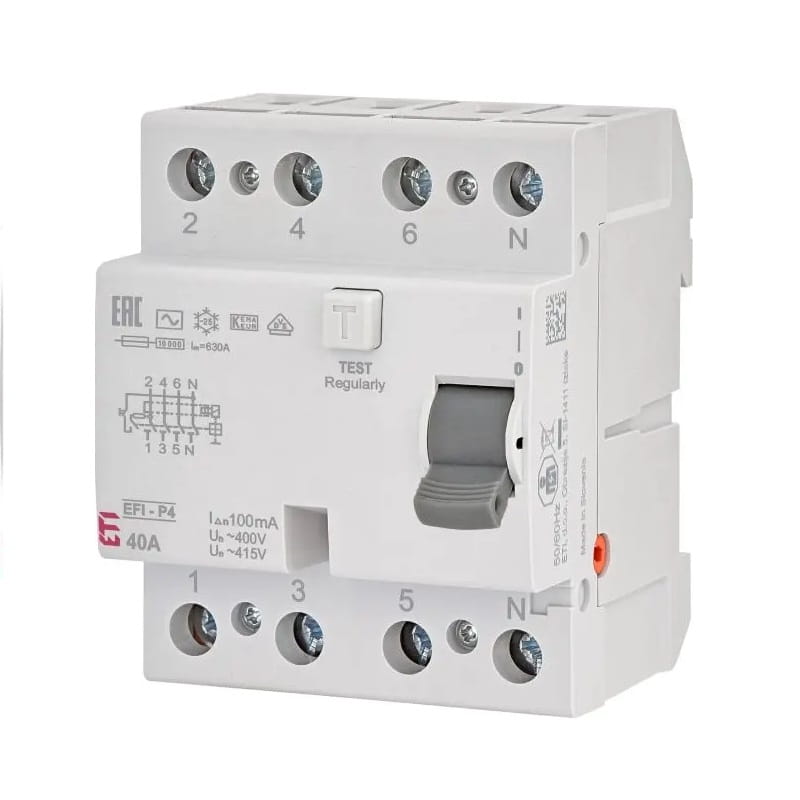

Residual current circuit breaker 4P 40A 100mA type AC EFI-P4 AC 40/0.1 002061622 ETI
Availability:
Temporarily unavailable
Weight:
0.305 kg
Description
Residual current circuit breaker 4P 40A 100mA type AC EFI-P4 AC 40/0.1 002061622 ETI
Residual current circuit breaker 4P 40A 100mA type AC EFI-P4 AC 40/0.1 002061622 by ETI protects an electrical circuit by disconnecting it when a difference in current is detected, thus protecting against damage and electric shock. It is used for both indirect and direct contact.
Residual current circuit breakers differ in sensitivity: high-sensitive (up to 30 mA), medium-sensitive (30-500 mA), low-sensitive (above 500 mA), and the type of leakage current detected: AC (sinusoidal alternating current), A (sinusoidal alternating current, single-lead rectified and pulsed sinusoidal current), B (sinusoidal alternating current, single-lead rectified and pulsed sinusoidal current, direct current).
Specification
Manufacturer
ETI
With overcurrent device
No
Rated current
40 A
Rated voltage
415 V
Frequency
50/60 Hz
Type
AC
Series and type
Residual current circuit breaker 4P 40A 100mA type AC EFI-P4 AC 40/0.1 002061622 ETI
Rated current
40 A
Type
AC
Rated residual current
100 mA
Number of poles
3 + N
Installation depth
70 mm
Short-circuit withstand capability
10 kA
Degree of protection
IP20
Available Configuration
Technical data
| Circuit breaker type | residual current |
| Number of poles | 4P |
| Rated current [A] | 40A |
| Residual Current [mA] | 100 mA |
| Trip characteristic | AC |
| Brand | ETI |
