Rectangular aluminium tube 80×140×4 mm – closed section profile L=2000 mm EN AW-6060
0
Description

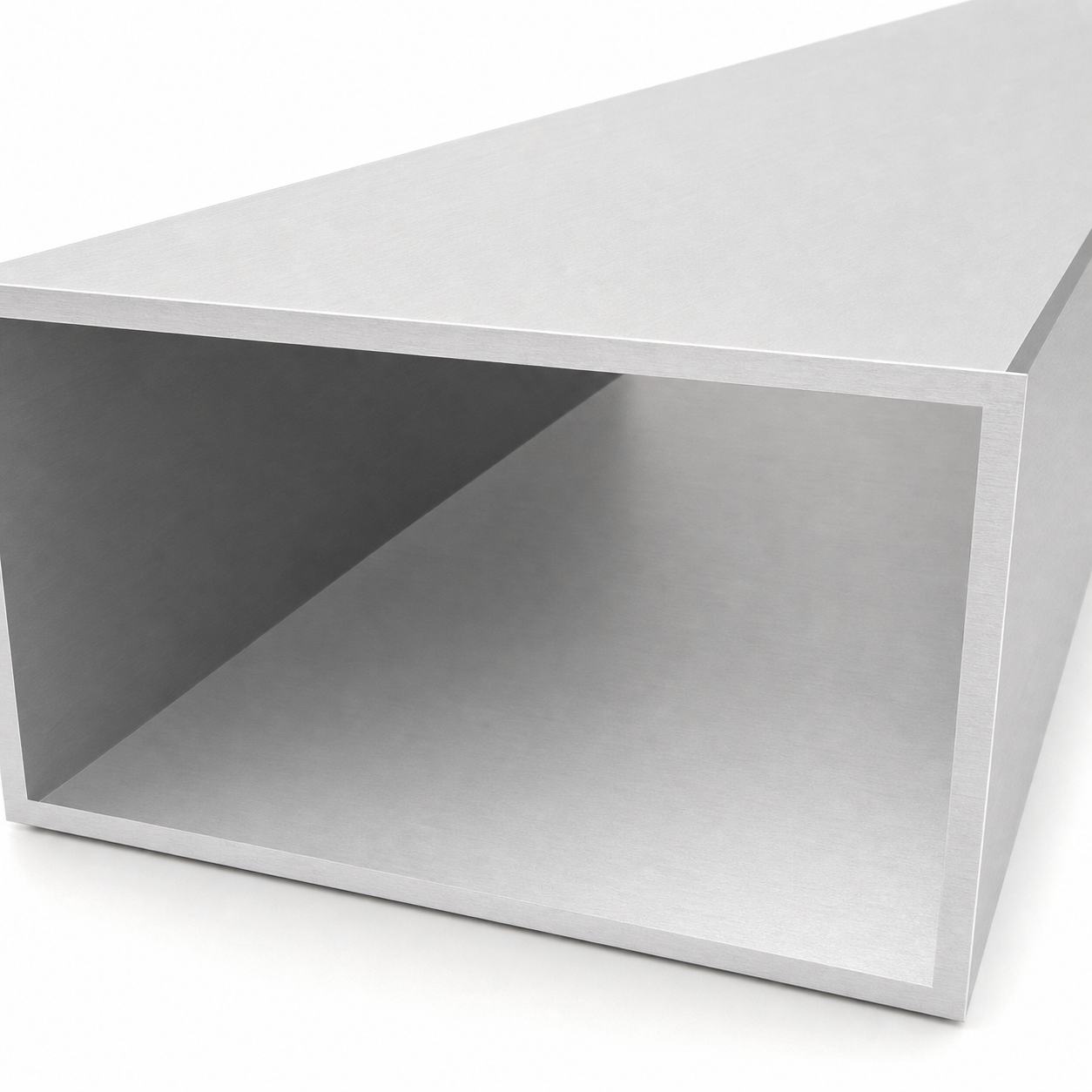

Rectangular aluminium tube 80×140×4 mm – closed section profile L=2000 mm EN AW-6060
Rectangular aluminium tube 80×140×4 mm is a robust closed rectangular section profile made from EN AW-6060 T64 aluminium alloy (PA38 / AlMgSi0.5). Thanks to its excellent stiffness-to-weight ratio, this profile is ideally suited for aluminium structures, support frames, load-bearing frames and balustrades — wherever lightness, corrosion resistance and ease of machining are essential.
In its raw (non-anodised) state, the profile is ready for further processing — cutting, drilling, bending and joining — allowing it to be flexibly adapted to the requirements of any specific project. Available in a range of sizes covering multiple cross-sectional dimensions and wall thicknesses.
Dimensions and technical specifications
- Section: closed rectangular tube
- External width (A): 80 mm
- External height (B): 140 mm
- Wall thickness (T): 4 mm
- Length: 2000 mm
- Dimensions (W × H × L): 80 × 140 × 2000 mm
- Weight: 9.16 kg (4.58 kg/m)
Material and surface
- Material: aluminium EN AW-6060 T64 (PA38 / 3.3206)
- Alloy: AlMgSi0.5
- Surface: raw (non-anodised)
Applications
- Aluminium structures and support frameworks
- Balustrades and handrails
- Machine frames and enclosures
- Furniture and decorative elements
- Modelling and DIY projects
Technical data
| Length [mm] | 2000 |
| Height [mm] | 140 |
| Material | Aluminium |
| Wall Thickness [mm] | 4 |
