Rectangular aluminium tube 80×120×3 mm EN AW-6060 – length 2000 mm
0
Description

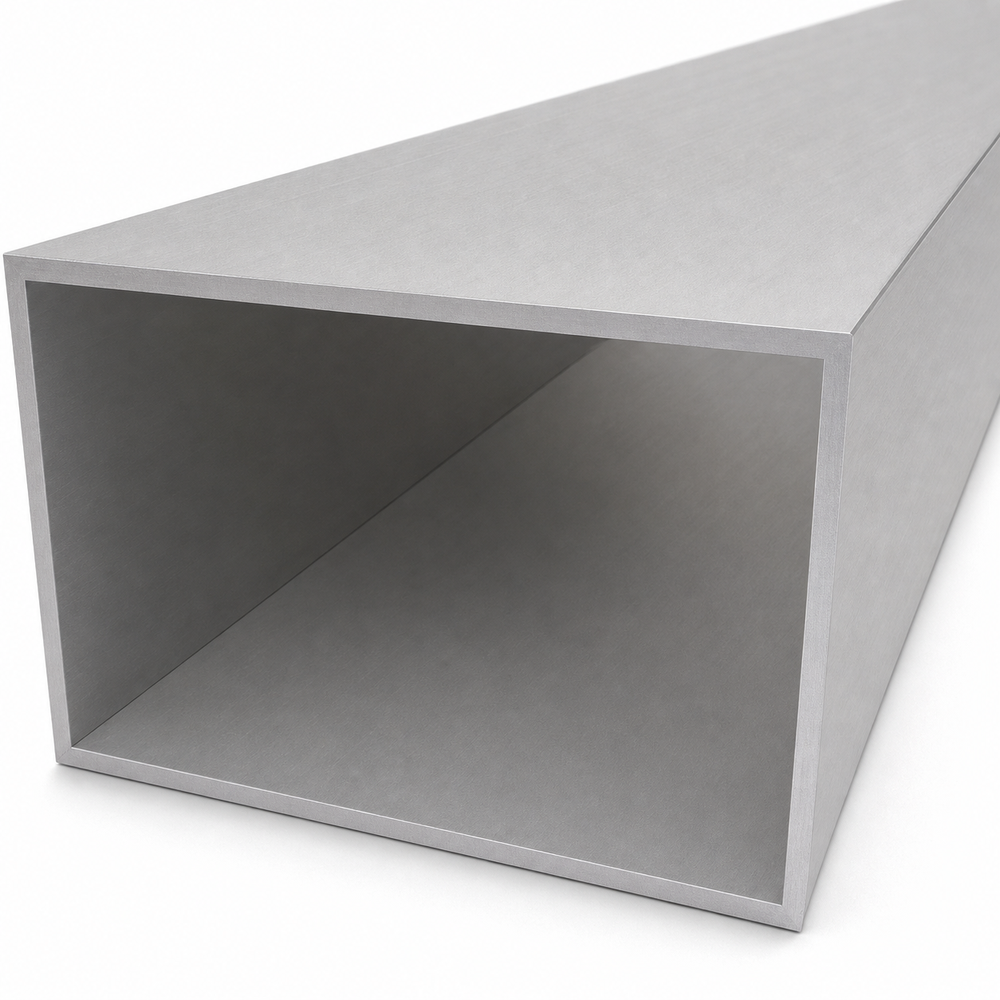

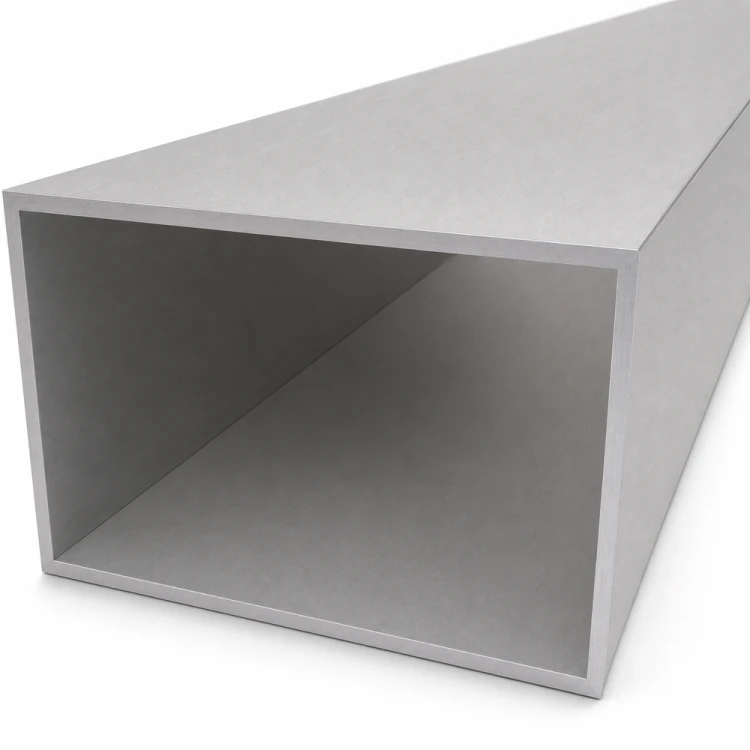

Rectangular aluminium tube 80×120×3 mm EN AW-6060 – length 2000 mm
The rectangular aluminium tube 80×120×3 mm is a robust closed rectangular section profile designed for building lightweight yet rigid aluminium structures. Thanks to the use of the EN AW-6060 T64 alloy (AlMgSi0.5 / PA38), the profile combines high corrosion resistance with excellent machinability — it can be easily cut, drilled, bent and joined, which significantly speeds up assembly work on site.
The 2000 mm length profile is ideal wherever low self-weight combined with high structural rigidity is required. A perfect solution for frames, load-bearing structures, balustrades, handrails, decorative elements, as well as furniture and modelling constructions.
Dimensions and technical parameters
- Section: closed rectangular tube
- External width (A): 80 mm
- External height (B): 120 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Overall dimensions (W × H × L): 80 × 120 × 2000 mm
- Weight: 6.28 kg (3.14 kg/m)
Material and surface
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and load-bearing frames
- Balustrades, handrails and fencing
- Equipment frames and support structures
- Decorative and furniture elements
- Modelling and DIY projects
The profile is available as part of a product range — in many cross-section size and wall thickness variants, making it easy to select the optimum profile for a specific project.
Technical data
| Height [mm] | 120 |
| Material | Aluminium |
| Wall Thickness [mm] | 3 |
| Length [mm] | 2000 |
