Rectangular aluminium tube 60×100×4 mm – closed profile EN AW-6060, L=2000 mm
0
Description

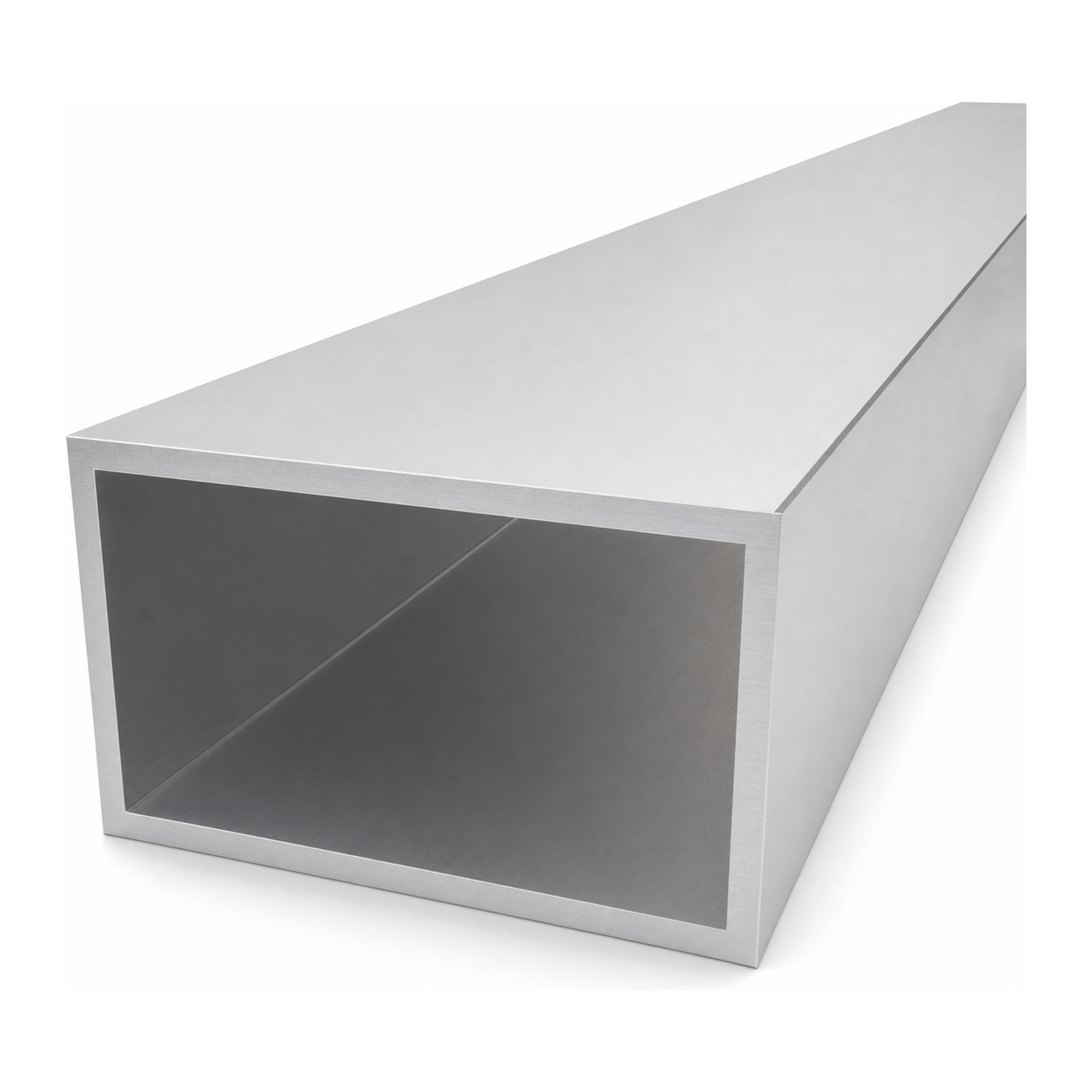

Rectangular aluminium tube 60×100×4 mm – closed profile EN AW-6060, L=2000 mm
Rectangular aluminium tube 60×100×4 mm is a robust closed profile designed for the construction of aluminium structures, frames, railings, and handrails. Thanks to the use of EN AW-6060 T64 alloy (AlMgSi0.5), the profile combines low weight with high rigidity and natural corrosion resistance — an ideal combination for professional structural and installation applications.
The profile is supplied in a length of 2000 mm with a mill finish (non-anodised) surface, ready for further processing. The material is easily cut, drilled, bent, and joined, which significantly reduces assembly time on site.
Cross-section dimensions
- External width (A): 60 mm
- External height (B): 100 mm
- Wall thickness (T): 4 mm
- Section: rectangular closed
Technical specifications
- Length: 2000 mm
- Dimensions (W × H × L): 60 × 100 × 2000 mm
- Weight: 6.56 kg (3.28 kg/m)
- Material: aluminium EN AW-6060 T64 (PA38, AlMgSi0.5, 3.3206)
- Surface: mill finish (non-anodised)
Applications
- Aluminium structures and load-bearing frames
- Balustrades and handrails
- Frames and equipment enclosures
- Furniture and decorative elements
- Scale modelling and DIY projects
The profile is available in a range covering many cross-section dimensions and wall thicknesses — allowing you to select the optimum variant for a specific load and project.
Technical data
| Material | Aluminium |
| Wall Thickness [mm] | 4 |
| Length [mm] | 2000 |
| Height [mm] | 100 |
