Rectangular aluminium tube 50×80×3 mm – closed profile EN AW-6060, L=2000 mm

Go to Product feedback

Rectangular aluminium tube EN AW-6060 T6/T66 (AlMgSi0.5). Closed section 50×80 mm, wall thickness 3 mm, length 2000 mm. Weight 4.02 kg (2.01 kg/m). Raw, non-anodised surface.

Go to full description
with VAT without VAT
Price €44.89
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] profile-prostokatne #145

  • Material Aluminium
  • Wall Thickness [mm] 3
  • Length [mm] 2000
  • Height [mm] 80

Description

Rectangular aluminium tube 50×80×3 mm – closed profile EN AW-6060, L=2000 mm

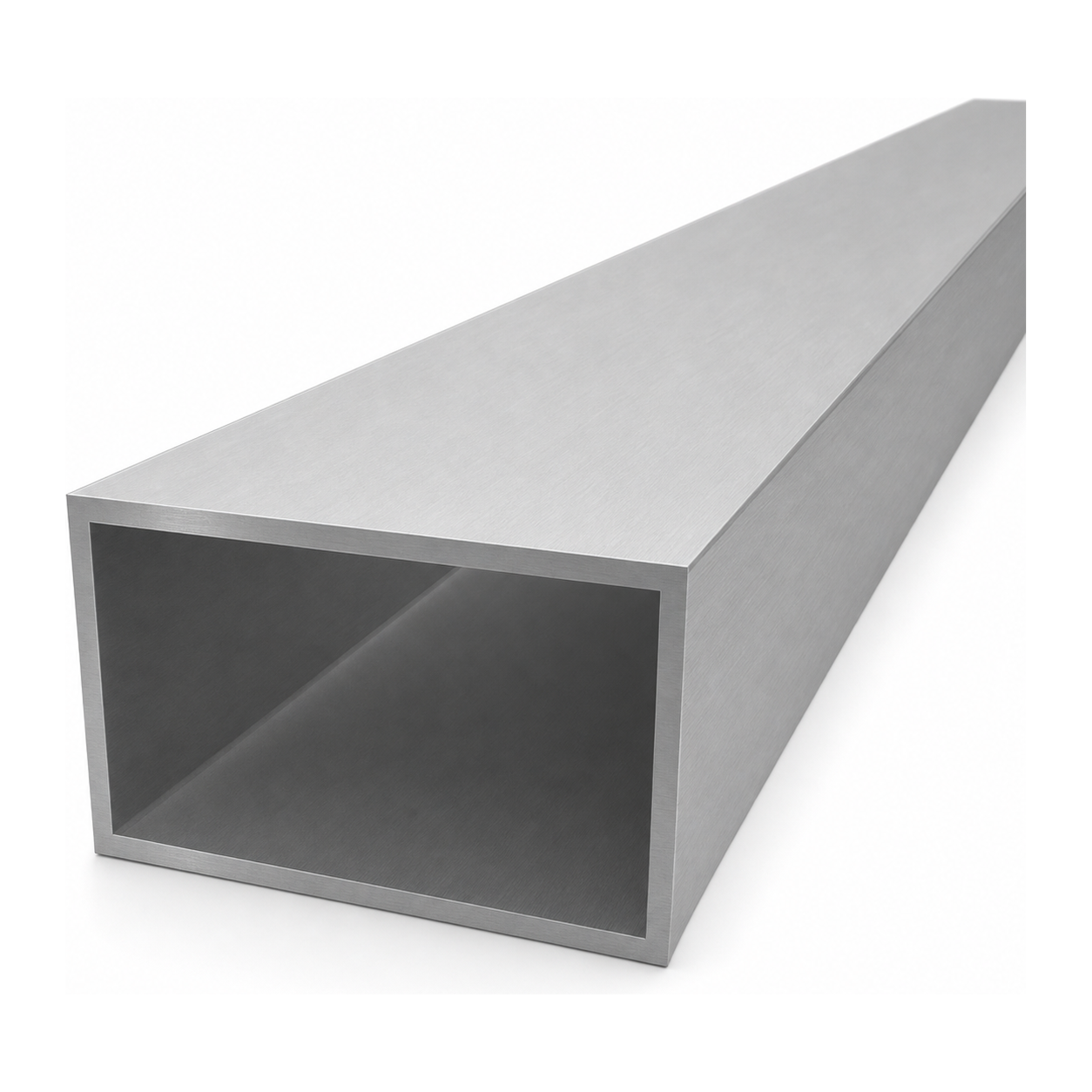

Rectangular aluminium tube 50×80×3 mm – perspective view of the closed profile
Rectangular aluminium tube 50×80×3 mm – perspective view of the closed profile

Rectangular aluminium tube 50×80×3 mm is a versatile closed profile with a length of 2000 mm, made from EN AW-6060 T6/T66 aluminium alloy (PA38 / AlMgSi0.5). Thanks to its combination of low weight and high structural rigidity, it is an excellent load-bearing element for frames, racking, and aluminium structures in installation and construction projects.

The raw (non-anodised) surface profile is easy to process further — it can be freely cut, drilled, bent, and joined using standard workshop techniques. The weight of a single length is just 4.02 kg, making it convenient to transport and install on site.

Benefits of the profile for the installer

  • High corrosion resistance — aluminium requires no additional anti-corrosion protection in the majority of applications
  • Low self-weight — just 2.01 kg/m, making transport and installation easier
  • Ease of processing — cutting, drilling, bending, and joining without specialist tools
  • Structural rigidity — the closed rectangular section provides high resistance to torsion and bending
  • Versatility of applications — load-bearing structures, balustrades, frames, racking, furniture components, and decorative elements
Cross-section drawing of the rectangular tube showing dimensions A (width), B (height), and T (wall thickness)
Cross-section drawing of the rectangular tube showing dimensions A (width), B (height), and T (wall thickness)

Technical specification

  • Section: closed rectangular tube
  • External width (A): 50 mm
  • External height (B): 80 mm
  • Wall thickness (T): 3 mm
  • Length: 2000 mm
  • Dimensions (W × H × L): 50 × 80 × 2000 mm
  • Weight: 4.02 kg (2.01 kg/m)
  • Material: aluminium EN AW-6060 T6/T66 (PA38, AlMgSi0.5, 3.3206)
  • Alloy: AlMgSi0.5
  • Surface: raw (non-anodised)

Applications

The 50×80 mm rectangular profile has a wide range of applications in installation and construction work. It is ideally suited for building frames and mounting structures, balustrades and handrails, aluminium structures with enhanced rigidity, as well as serving as a component in furniture, decorative details, and modelling projects. The availability of a wide range of section dimensions and wall thicknesses allows the optimum profile to be selected for any project.
