Rectangular aluminium tube 50×150×4 mm – closed profile EN AW-6060, L=2000 mm
0
Description
Rectangular aluminium tube 50×150×4 mm – closed profile EN AW-6060, L=2000 mm

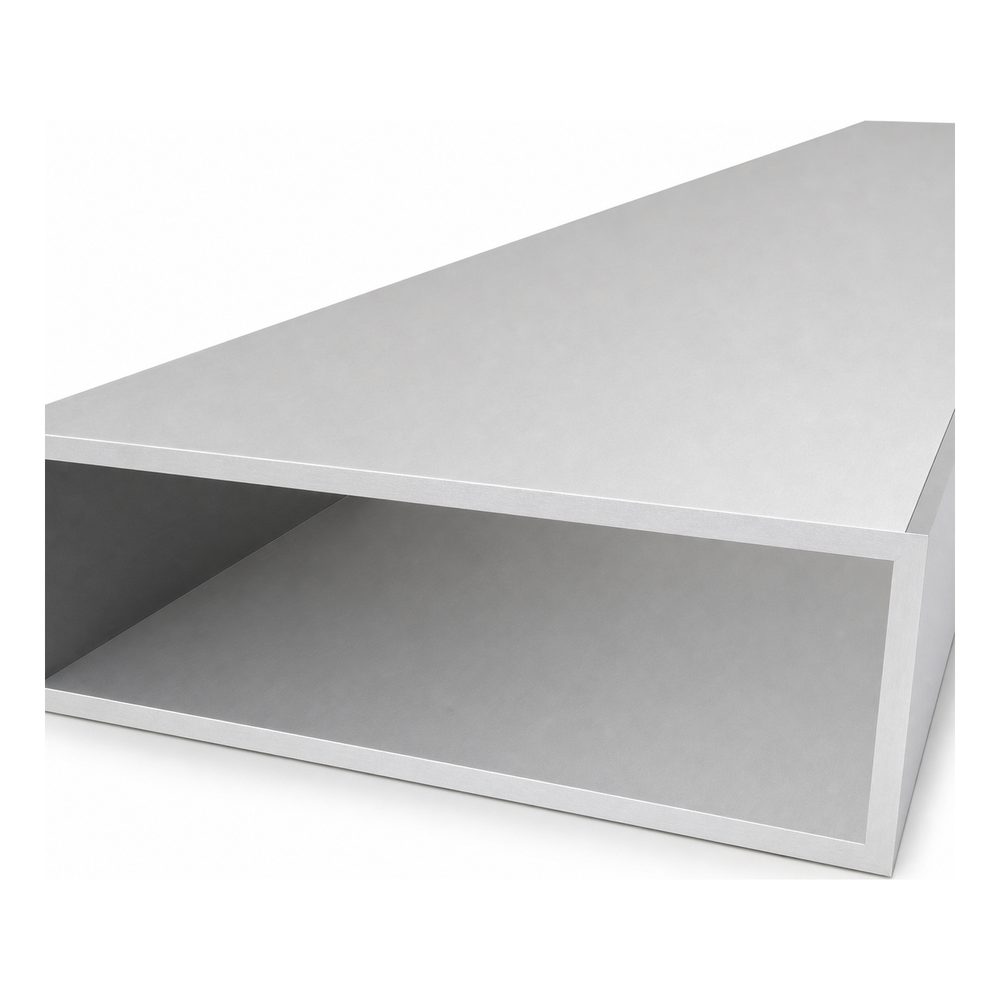

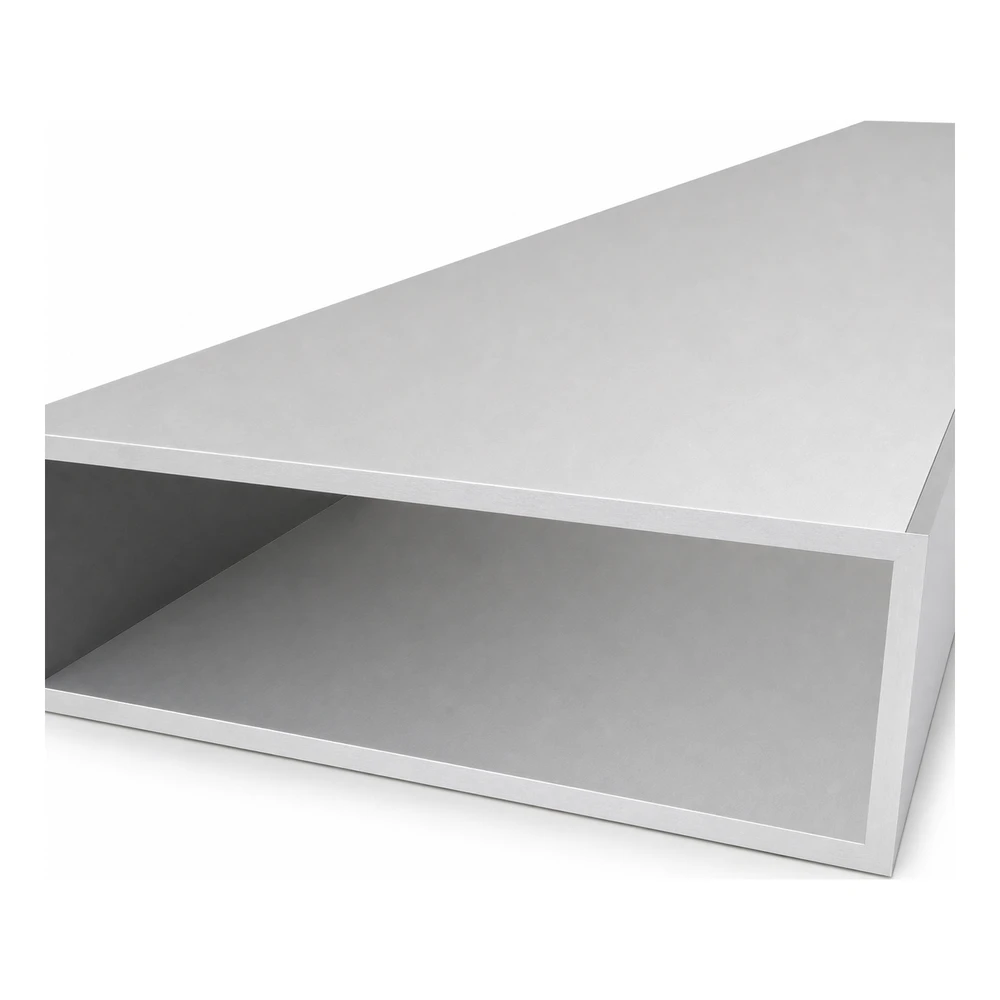

Rectangular aluminium tube 50×150×4 mm is a sturdy closed profile with a length of 2000 mm, made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). Thanks to its excellent stiffness-to-weight ratio, it serves as a versatile structural material — ideal for building frames, load-bearing structures, balustrades, and all aluminium constructions requiring low weight and corrosion resistance.
The profile in its raw state (non-anodised) is ready for further processing — it can be easily cut, drilled, bent, and joined mechanically or welded. For installation companies, this means the freedom to adapt the component on site without the need for specialist tools.
Applications
- Aluminium structures and load-bearing frames
- Balustrades, handrails, and fencing
- Frames and supports for equipment
- Furniture and decorative elements
- Modelling and DIY projects
Technical specification
- Section: closed rectangular tube
- External width (A): 50 mm
- External height (B): 150 mm
- Wall thickness (T): 4 mm
- Length: 2000 mm
- Dimensions (W × H × L): 50 × 150 × 2000 mm
- Weight: 8.30 kg (4.15 kg/m)
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
The profile is available in a range of sizes covering many cross-section dimensions and wall thicknesses — allowing you to select the optimum variant for the requirements of a specific project.
Technical data
| Material | Aluminium |
| Wall Thickness [mm] | 4 |
| Length [mm] | 2000 |
| Height [mm] | 150 |
