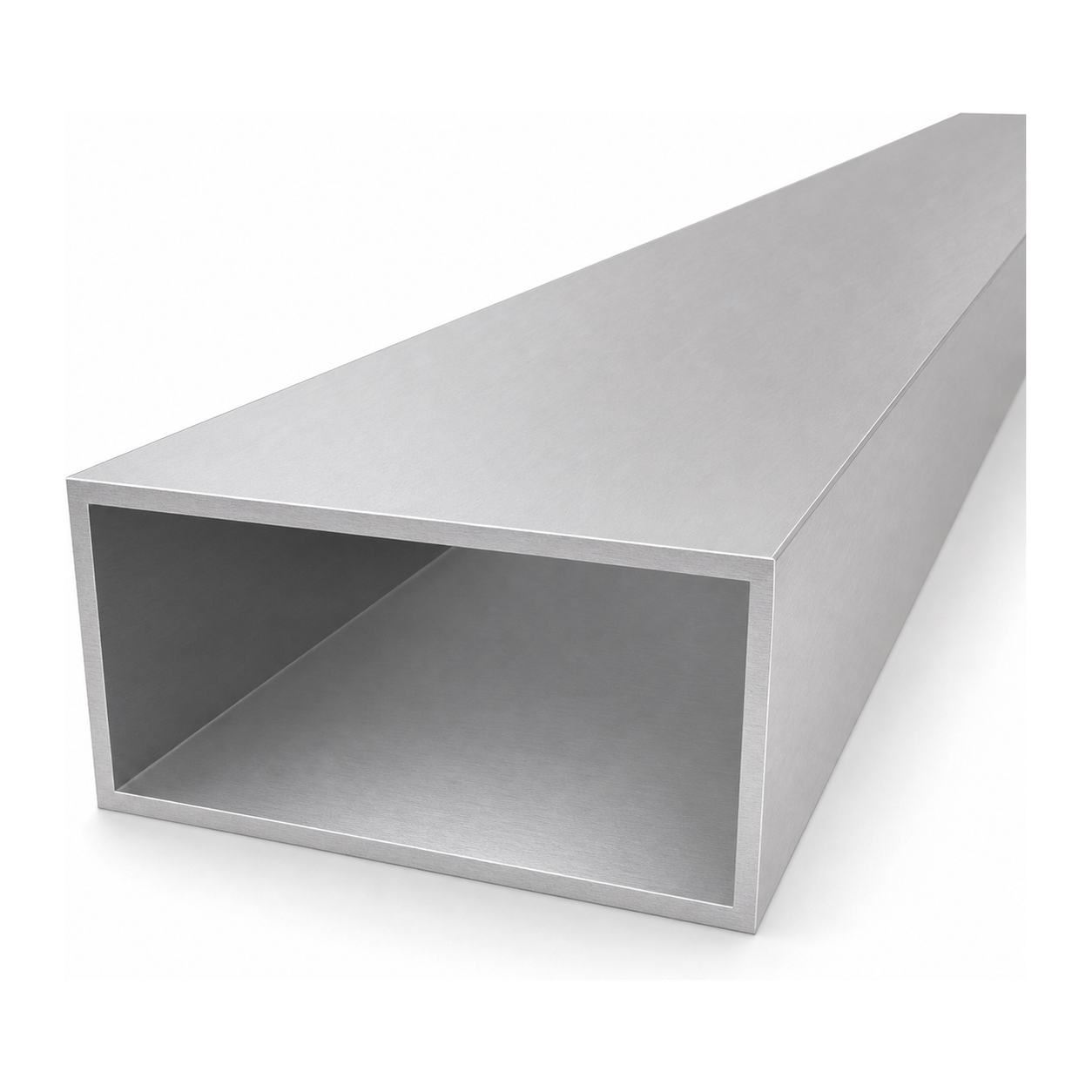

Rectangular aluminium tube 50×100×3 mm – closed profile L=2000 mm
0
Description
Rectangular aluminium tube 50×100×3 mm – closed profile L=2000 mm
Rectangular aluminium tube 50×100×3 mm is a robust closed rectangular section profile made from aluminium alloy EN AW-6060 T64 (AlMgSi0.5 / PA38). Thanks to its excellent stiffness-to-weight ratio, this profile is ideal wherever structural load-bearing capacity is required alongside reduced weight — from mounting frames and support structures to balustrades and handrails, through to supporting structures for photovoltaic installations.
The 6060 series aluminium offers high corrosion resistance without the need for additional surface treatment, resulting in a long service life for components used outdoors. The profile is easy to work with — it is suitable for cutting, drilling, bending, and joining using standard workshop tools, which helps to reduce on-site installation time.
Dimensions and technical specifications
- Section: closed rectangular tube
- External width (A): 50 mm
- External height (B): 100 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Dimensions (W × H × L): 50 × 100 × 2000 mm
- Weight: 4.66 kg (2.33 kg/m)
Material and surface
- Aluminium alloy: EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and support frames
- Balustrades and handrails
- Mounting frames and sub-structures
- Furniture and decorative elements
- Modelling and DIY projects
The profile is available as part of a product range — in a wide variety of section sizes and wall thicknesses — making it straightforward to select the optimum solution for any specific project.
Technical data
| Material | Aluminium |
| Wall Thickness [mm] | 3 |
| Length [mm] | 2000 |
| Height [mm] | 100 |
