Rectangular aluminium tube 50×100×2 mm – closed profile EN AW-6060 L=2000 mm
0
Description
Rectangular aluminium tube 50×100×2 mm – closed profile EN AW-6060 L=2000 mm

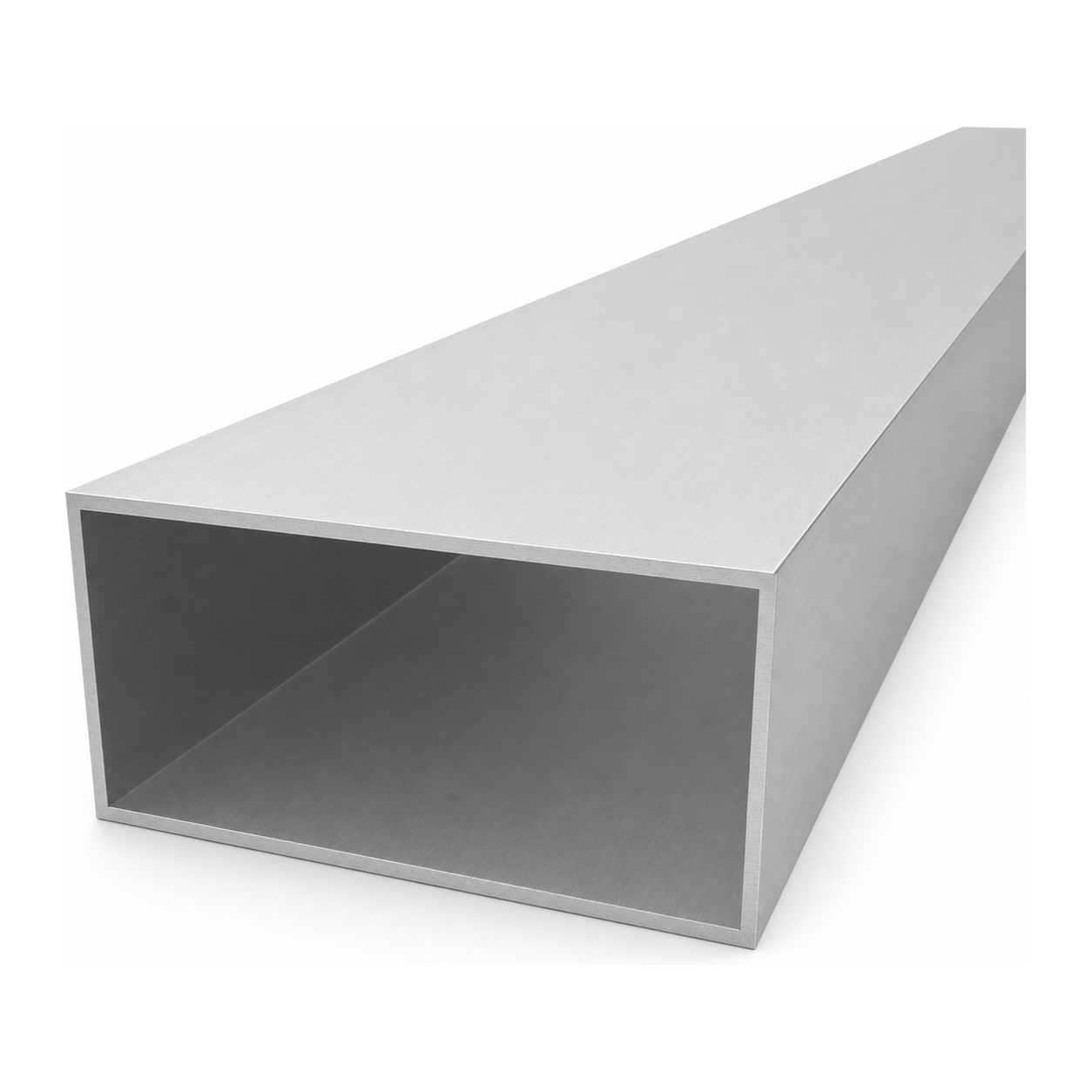

Rectangular aluminium tube 50×100×2 mm is a robust closed-section rectangular profile made from aluminium alloy EN AW-6060 T64 (PA38, AlMgSi0.5). Combining lightness with high rigidity, it is suitable wherever structural durability is required alongside reduced weight — from frames and sub-frames to balustrades, furniture, and aluminium structures.
The profile, with a length of 2000 mm, is supplied in a raw (non-anodised) state, allowing any surface treatment — anodising, powder coating, or painting — to be applied in line with the requirements of a specific project. Aluminium series 6060 is characterised by excellent corrosion resistance, outstanding weldability, and ease of mechanical processing: cutting, drilling, milling, and bending.
Technical Specification
- Section: closed rectangular tube
- External width (A): 50 mm
- External height (B): 100 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (W × H × L): 50 × 100 × 2000 mm
- Weight: 3.16 kg (1.58 kg/m)
- Material: aluminium EN AW-6060 T64 (PA38, AlMgSi0.5, 3.3206)
- Surface: raw (non-anodised)
Applications
The 50×100 mm rectangular aluminium profile is widely used in professional projects requiring a stable yet lightweight load-bearing structure:
- Aluminium structures — frames, sub-frames, and skeletons for enclosures and housings
- Balustrades and handrails — structural and infill elements for fencing
- Furniture and fitments — table legs, shelving frames, fitted furniture structures
- Decorative elements — borders, architectural trims and finishes
- Modelling and DIY — wherever a rigid, easy-to-machine profile is required
The profile is available in a range of section sizes and wall thicknesses, making it possible to select the optimum variant to meet the structural and dimensional requirements of any specific project.
Technical data
| Material | Aluminium |
| Wall Thickness [mm] | 2 |
| Length [mm] | 2000 |
| Height [mm] | 100 |
