Rectangular aluminium tube 40×80×3 mm – closed section profile L=2000 mm
0
Description

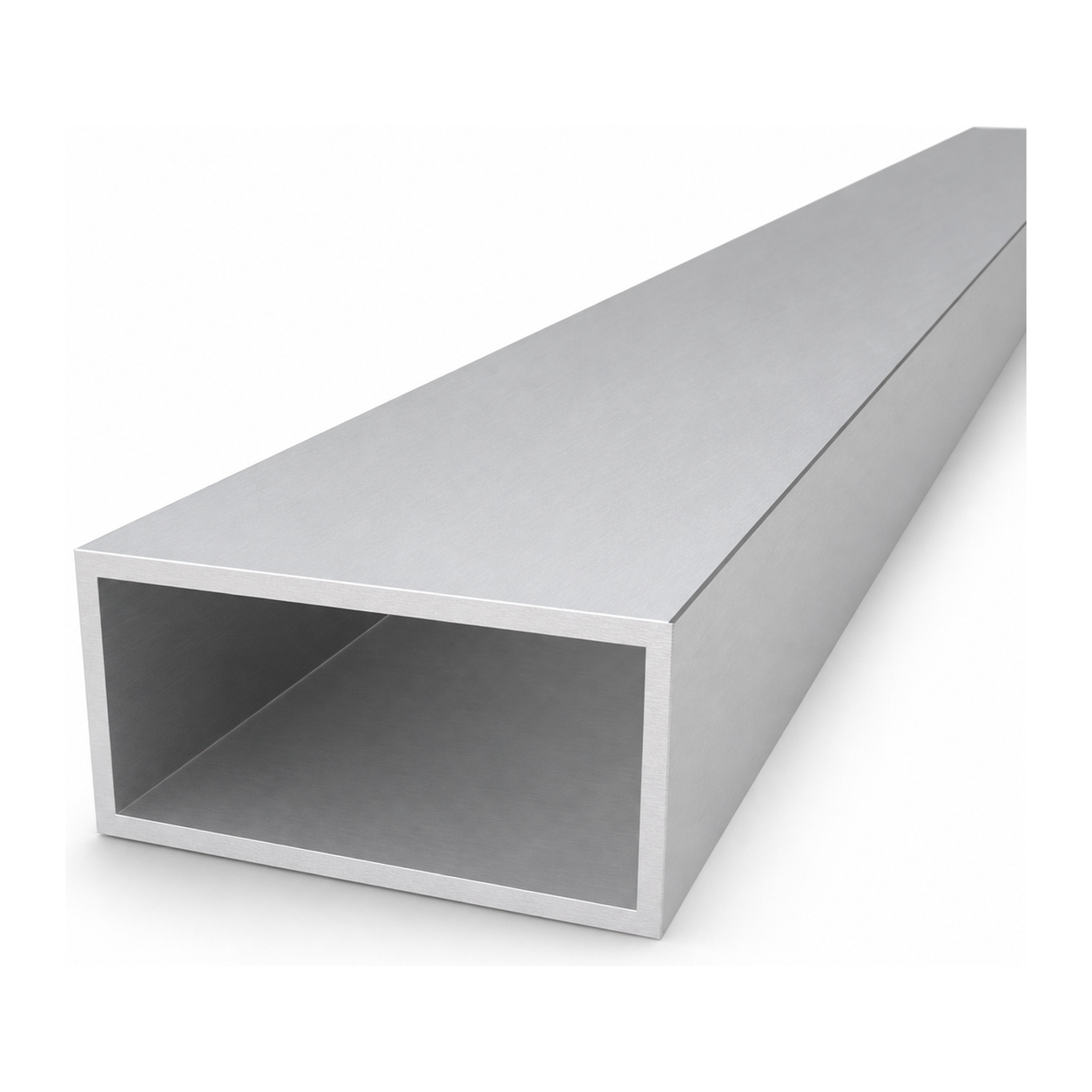

Rectangular aluminium tube 40×80×3 mm – closed section profile L=2000 mm
Rectangular aluminium tube 40×80×3 mm is a robust closed section profile with a length of 2000 mm, manufactured from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). Thanks to its excellent stiffness-to-weight ratio and natural corrosion resistance, it is ideal wherever structural durability is required alongside a reduction in overall weight.
The profile's raw (non-anodised) surface allows complete freedom for further processing — it can be cut, drilled, bent, welded, and mechanically joined without any specialist preparation. It is a versatile structural element used in the construction of handrails and balusters, frameworks, supporting frames, furniture, decorative elements, as well as in modelling and DIY projects.
Dimensions and section parameters
- Section type: closed rectangular tube
- External width (A): 40 mm
- External height (B): 80 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Overall dimensions (W × H × L): 40 × 80 × 2000 mm
Material and properties
- Material: aluminium EN AW-6060 T64 (PA38 / 3.3206)
- Alloy: AlMgSi0.5
- Surface: raw (non-anodised)
- Weight: 3.70 kg (1.85 kg/m)
Applications
- Aluminium structures and supporting frames
- Balusters, handrails and fencing
- Equipment and installation frameworks
- Furniture and decorative elements
- Modelling and DIY projects
The profile is available in a range of cross-sectional dimensions and wall thicknesses, enabling selection of the optimum variant for any specific structural application.
Technical data
| Material | Aluminium |
| Wall Thickness [mm] | 3 |
| Length [mm] | 2000 |
| Height [mm] | 80 |
