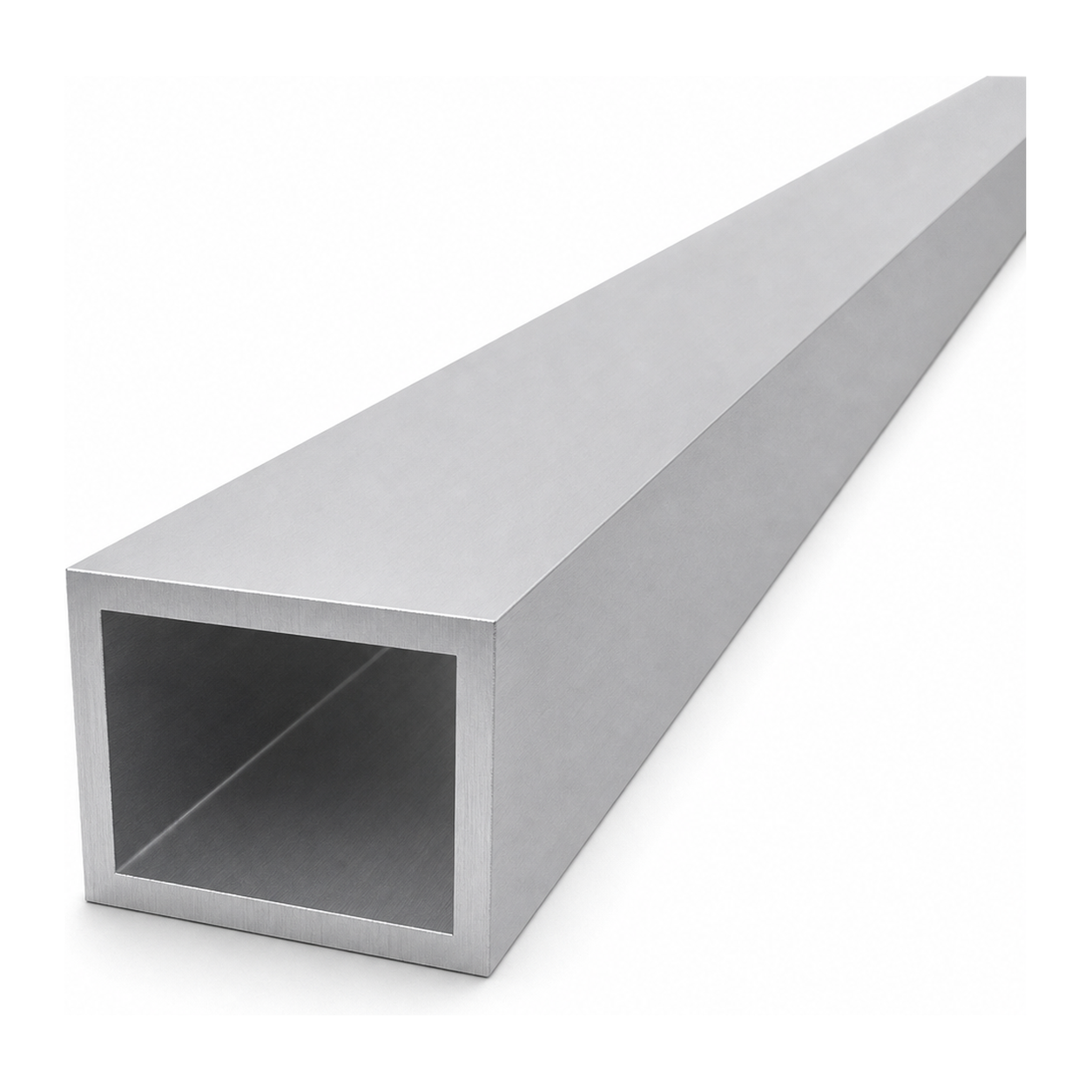

Rectangular aluminium tube 40×50×4 mm EN AW-6060 – length 2000 mm
Leave feedback on the product
Rectangular aluminium tube EN AW-6060 T6/T66 (AlMgSi0.5). Cross-section 40×50 mm, wall thickness 4 mm, length 2000 mm. Weight 3.54 kg (1.77 kg/m). Raw, non-anodised surface. Corrosion-resistant alloy.
Product code: 001-846
Product features
[PIM] profile-prostokatne #145
- Material Aluminium
- Wall Thickness [mm] 4
- Length [mm] 2000
- Height [mm] 50
Description
Rectangular aluminium tube 40×50×4 mm EN AW-6060 – length 2000 mm
Rectangular aluminium tube 40×50×4 mm is a robust closed profile made from EN AW-6060 T6/T66 aluminium alloy (AlMgSi0.5 / PA38). Thanks to its excellent stiffness-to-weight ratio and natural corrosion resistance, it is an ideal structural material for installation and construction companies — suitable wherever durability, dimensional precision and ease of machining are essential.
The 2000 mm length profile is suitable for the construction of frames, racking, balustrades, handrails, aluminium structures and load-bearing elements. The raw (non-anodised) surface allows any finishing treatment — anodising, powder coating or painting — depending on project requirements.
Cross-section dimensions and specification
- Profile type: closed rectangular tube
- External width (A): 40 mm
- External height (B): 50 mm
- Wall thickness (T): 4 mm
- Length: 2000 mm
- Overall dimensions: 40 × 50 × 2000 mm
- Weight: 3.54 kg (1.77 kg/m)
Material and surface
- Aluminium alloy: EN AW-6060 T6/T66 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
- Corrosion resistance: high — natural aluminium oxide layer
Properties and applications
EN AW-6060 alloy in T6/T66 temper combines good mechanical strength with excellent machinability. The profile can be freely cut, drilled, milled, bent and joined — both mechanically (bolts, rivets) and by welding. The low self-weight (1.77 kg/m) greatly facilitates transport and installation whilst reducing the load on supporting structures.
Typical applications:
- Aluminium structures and load-bearing frames
- Balustrades, handrails and fencing
- Equipment frames and enclosures
- Furniture and decorative components
- Modelling and prototyping
