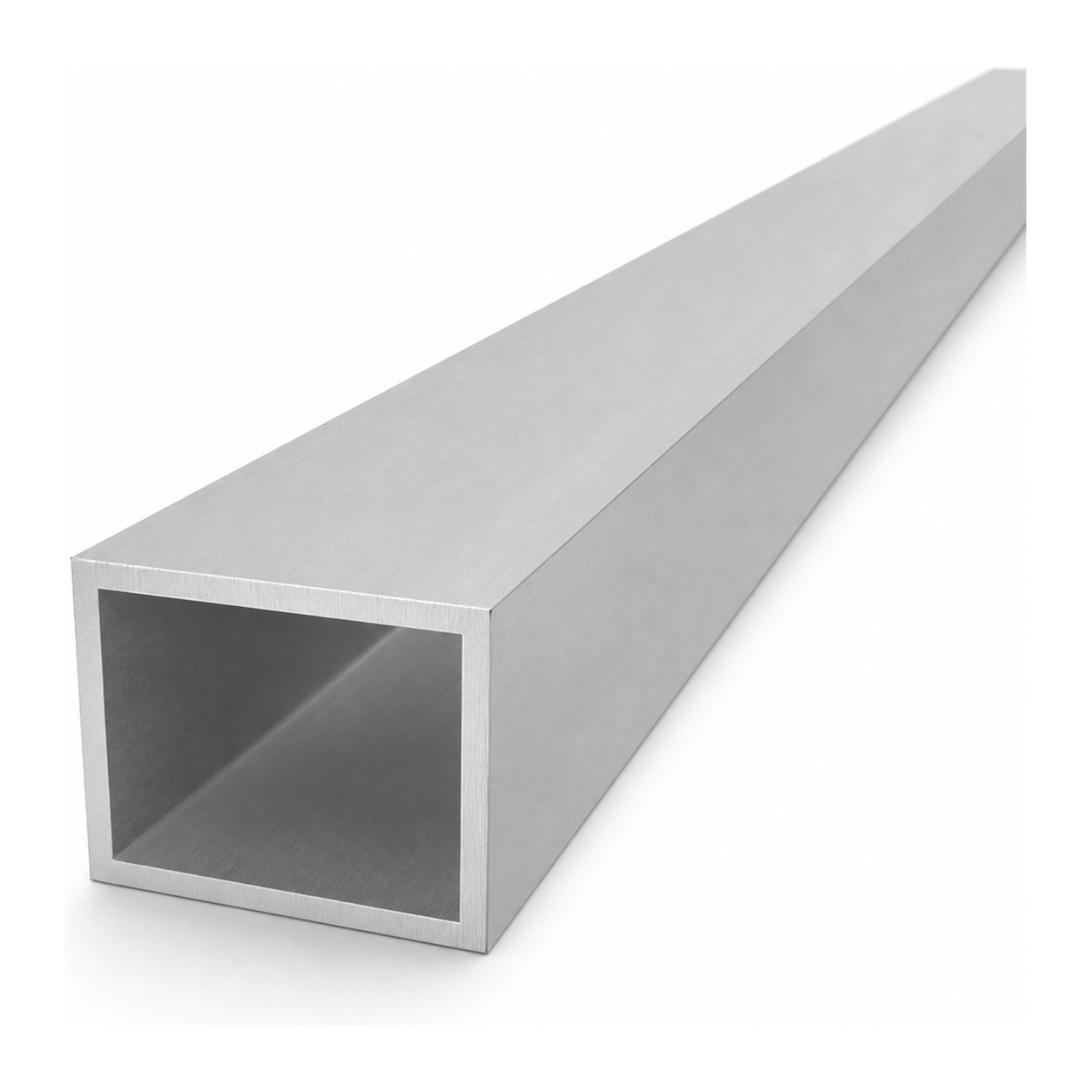

Rectangular aluminium tube 40×50×3 mm EN AW-6060, length 2000 mm
0
Description
Rectangular aluminium tube 40×50×3 mm EN AW-6060, length 2000 mm
Rectangular aluminium tube 40×50×3 mm is a closed aluminium profile designed for the construction of lightweight and durable structures. Made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38), it combines low self-weight with high rigidity and natural corrosion resistance — without the need for additional protective coatings.
The profile, with a length of 2000 mm and a weight of just 2.72 kg, is easy to transport and process. Aluminium 6060 is highly suited to cutting, drilling, bending and joining, allowing rapid adaptation to individual project requirements directly on site.
Applications
This profile is ideal wherever a rigid, lightweight and weather-resistant structure is required. Typical applications include:
- Aluminium structures – frames, load-bearing structures, sub-frames for enclosures
- Balustrades and handrails – components for balcony and staircase balustrades
- Frames and rigs – bases for equipment, assembly tables, shelving
- Furniture and decorative elements – table legs, finishing profiles
- Modelling and prototyping – rapid construction of test structures
Technical specification
- Section: closed rectangular tube
- External width (A): 40 mm
- External height (B): 50 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Dimensions (W × H × L): 40 × 50 × 2000 mm
- Weight: 2.72 kg (1.36 kg/m)
- Material: aluminium EN AW-6060 T64 (PA38 / AlMgSi0.5 / 3.3206)
- Surface: raw (unanodised)
The raw surface of the profile allows for further finishing treatment — anodising, powder coating or polishing — depending on the aesthetic and environmental requirements of the specific project. The profile is available in a range of cross-section sizes and wall thicknesses, making it easy to select the optimum variant for any structure.
Technical data
| Length [mm] | 2000 |
| Height [mm] | 50 |
| Material | Aluminium |
| Wall Thickness [mm] | 3 |
