Rectangular aluminium tube 40×200×3 mm – closed profile EN AW-6060, L=2000 mm
0
Description

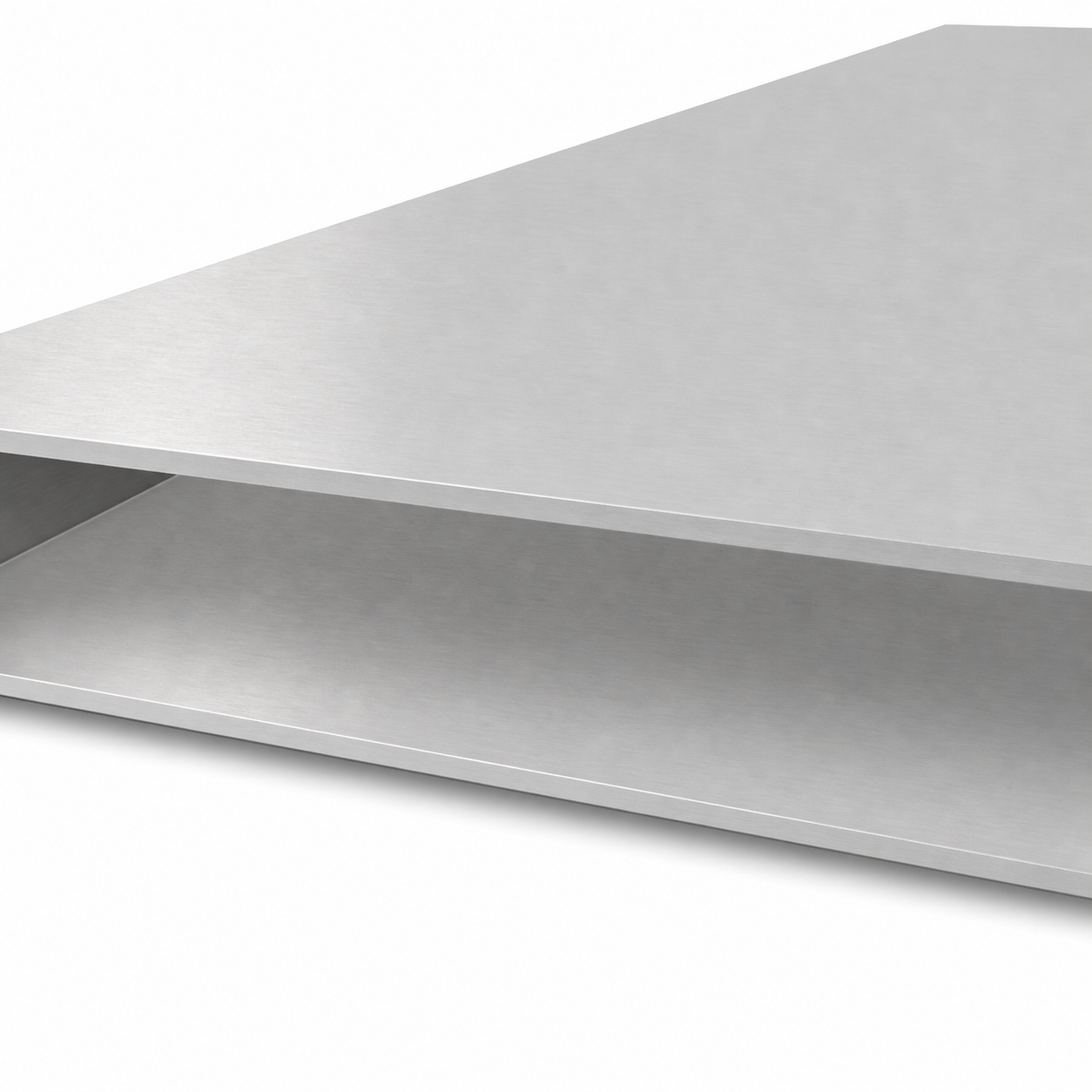

Rectangular aluminium tube 40×200×3 mm – closed profile EN AW-6060, L=2000 mm
Rectangular aluminium tube 40×200×3 mm is a robust closed profile with a length of 2000 mm, manufactured from EN AW-6060 T64 aluminium alloy (AlMgSi0.5 / PA38). Thanks to its large rectangular cross-section and 3 mm wall thickness, the profile offers excellent rigidity at a relatively low weight — just 7.58 kg per two-metre length. This makes it ideal as a structural element in lightweight aluminium constructions, frameworks, and mounting frames.
The surface of the profile is raw (non-anodised), allowing for further processing — powder coating, anodising, or leaving in its natural state. The 6060 series aluminium is characterised by high corrosion resistance, excellent weldability, and ease of mechanical processing — cutting, drilling, and bending.
Dimensions and technical specification
- Cross-section: closed rectangular tube
- External width (A): 40 mm
- External height (B): 200 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Dimensions (W × H × L): 40 × 200 × 2000 mm
- Weight: 7.58 kg (linear weight 3.79 kg/m)
- Material: aluminium EN AW-6060 T64 (PA38 / 3.3206)
- Alloy: AlMgSi0.5
- Surface: raw (non-anodised)
Applications
The 40×200 mm rectangular profile is widely used wherever high rigidity combined with low self-weight is required. The most common applications include:
- Aluminium structures — load-bearing frames, frameworks, supports
- Balustrades and handrails — structural elements of fencing
- Frames and subframes — substructures for machinery, shelving, and workstations
- Furniture and decorative elements — table legs, cabinet frames, finishing details
- Modelling and DIY — projects requiring a lightweight, rigid profile
The profile is available in a range of cross-section sizes and wall thicknesses, allowing the optimum variant to be selected for a specific project.
Technical data
| Height [mm] | 200 |
| Material | Aluminium |
| Wall Thickness [mm] | 3 |
| Length [mm] | 2000 |
