Rectangular aluminium tube 40×120×4 mm – closed profile EN AW-6060, L=2000 mm
0
Description

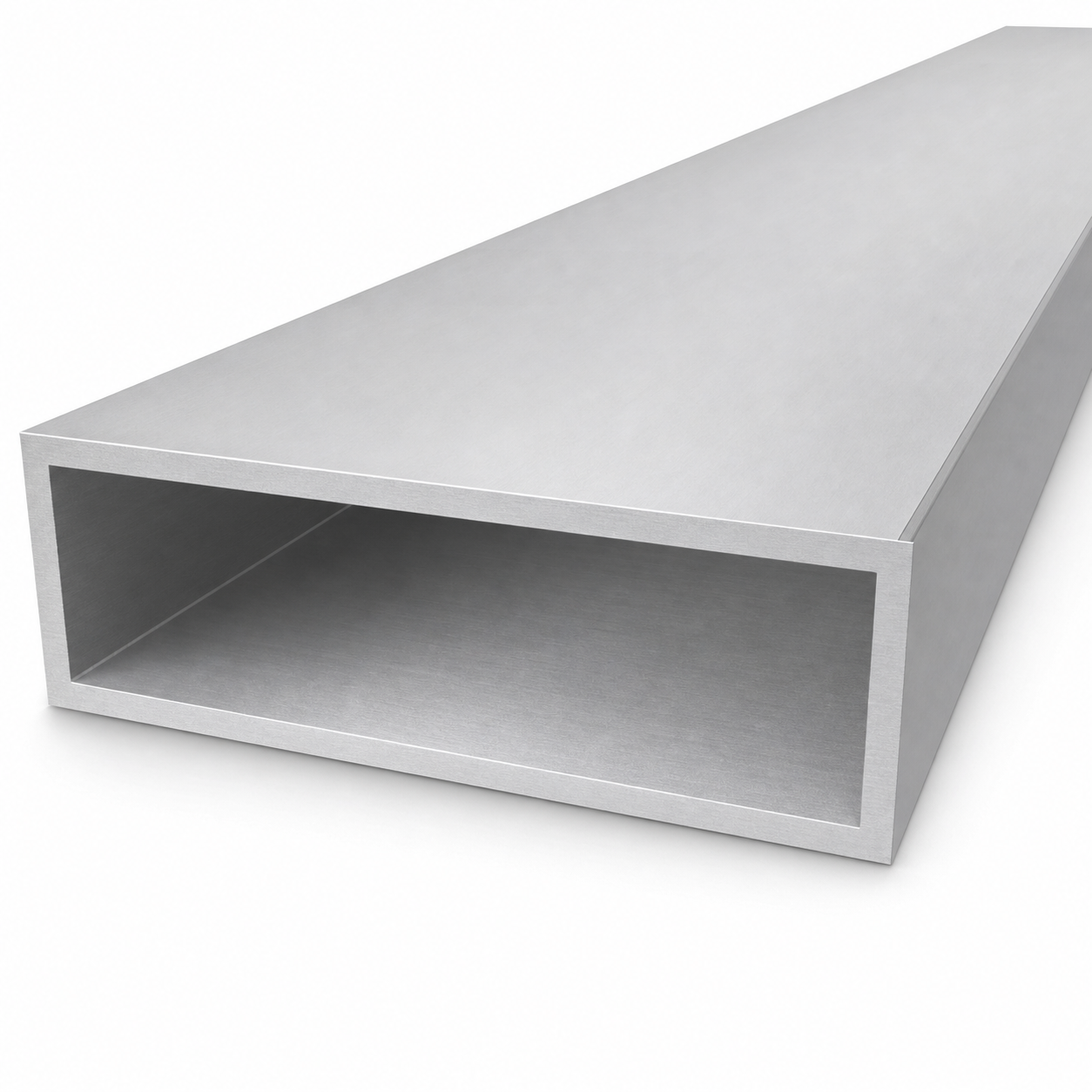

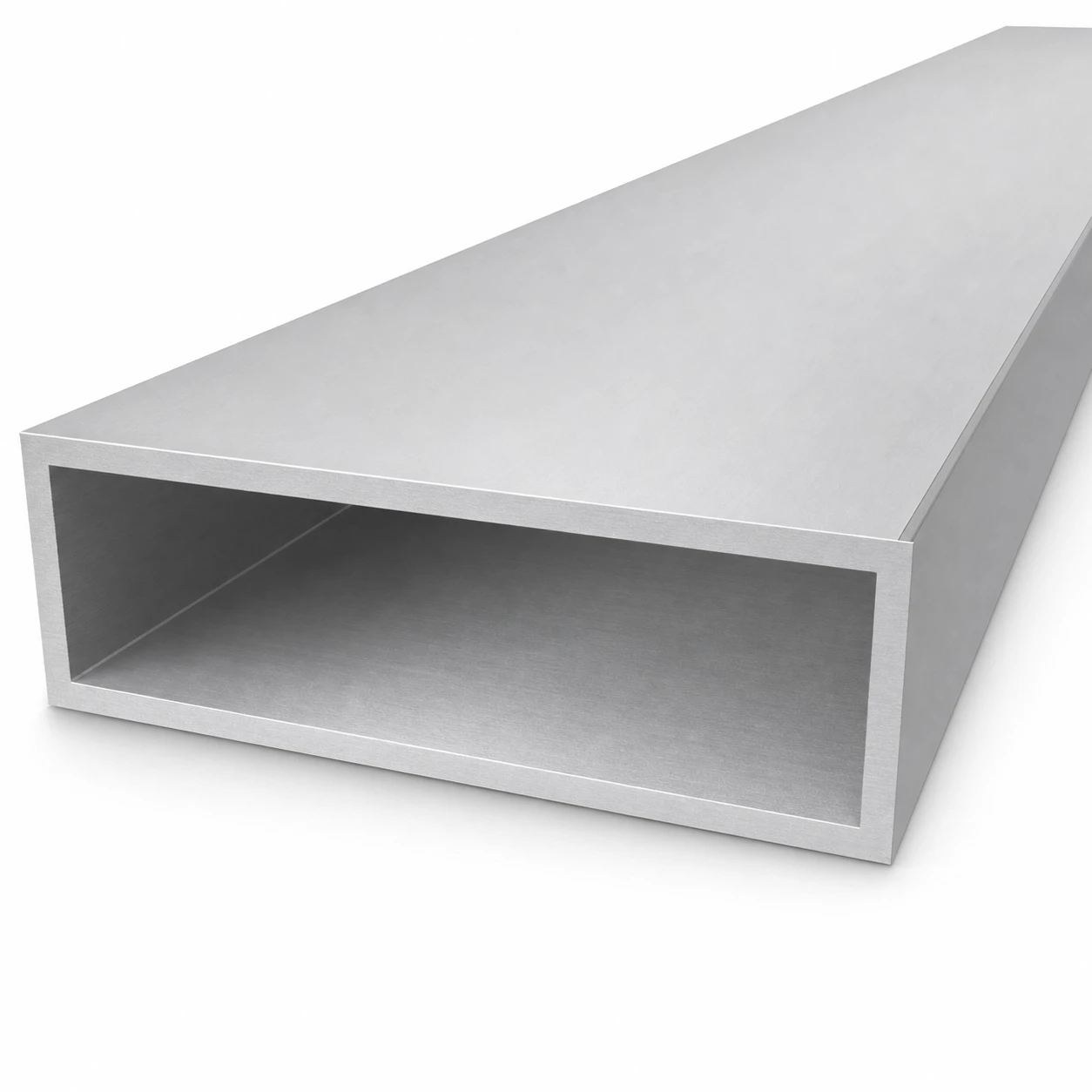

Rectangular aluminium tube 40×120×4 mm – closed profile EN AW-6060, L=2000 mm
Rectangular aluminium tube 40×120×4 mm is a sturdy closed profile with a length of 2000 mm, made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). Thanks to its large rectangular cross-section and 4 mm wall thickness, the profile combines high rigidity with low weight — an ideal combination for load-bearing structures, frames, and balustrades. The raw, non-anodised aluminium surface provides excellent adhesion for further processing — anodising, powder coating, or painting.
The profile is easy to machine — suitable for cutting, drilling, bending, and joining with standard workshop tools. The rectangular closed cross-section provides resistance to torsion and bending, making it a versatile structural component for both construction and furniture, decorative, or modelling projects.
Technical Specification
- Cross-section: closed rectangular tube
- External width (A): 40 mm
- External height (B): 120 mm
- Wall thickness (T): 4 mm
- Length: 2000 mm
- Dimensions (W × H × L): 40 × 120 × 2000 mm
- Weight: 6.56 kg (3.28 kg/m)
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and load-bearing frames
- Balustrades and handrails
- Frames and enclosures
- Furniture and decorative elements
- Modelling and DIY projects
The profile is available in a range covering many cross-section dimension and wall thickness variants, allowing the optimum profile to be selected for a specific load and application.
Technical data
| Material | Aluminium |
| Wall Thickness [mm] | 4 |
| Length [mm] | 2000 |
| Height [mm] | 120 |
