Rectangular aluminium tube 40×120×2 mm – closed profile EN AW-6060, L=2000 mm
0
Description

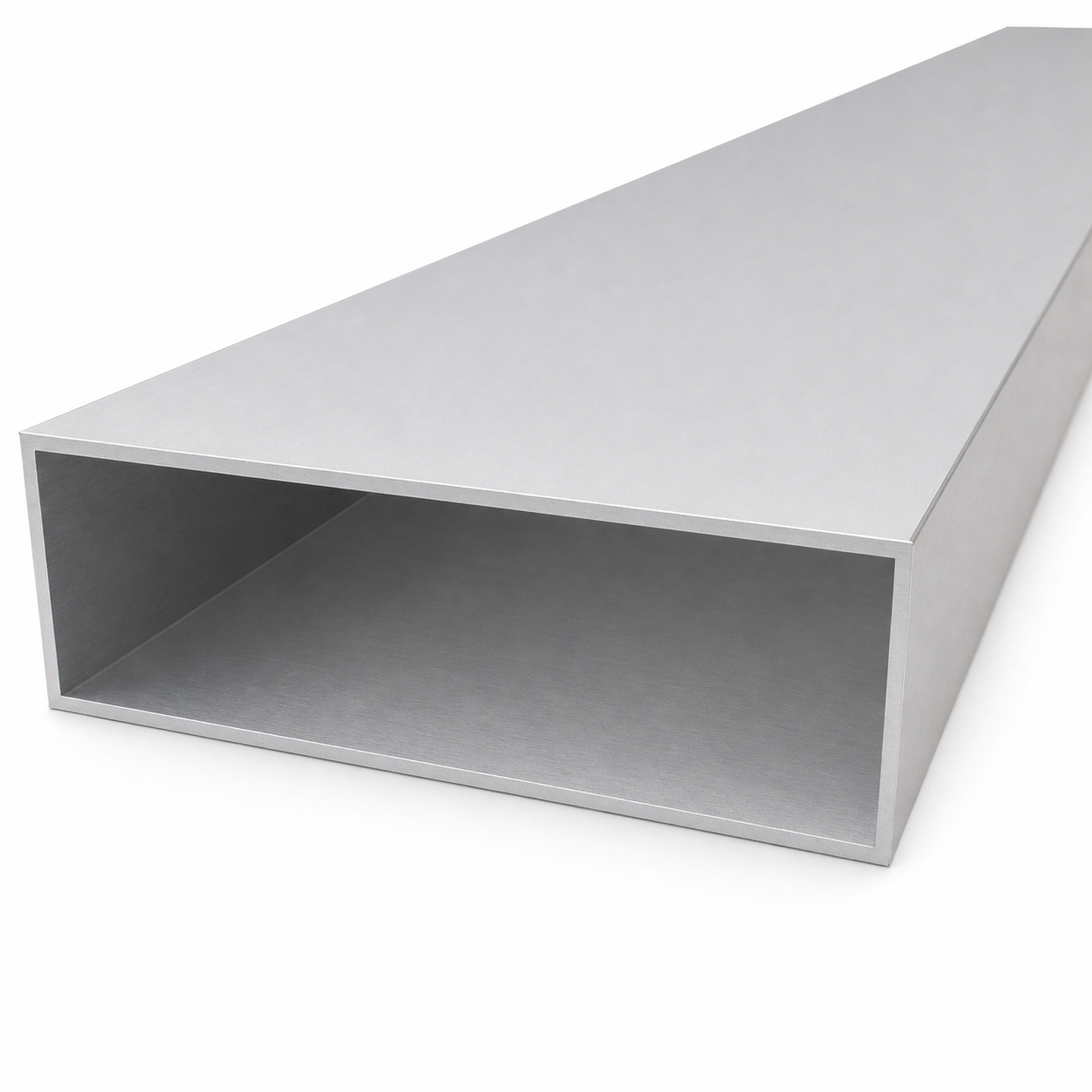

Rectangular aluminium tube 40×120×2 mm – closed profile EN AW-6060, L=2000 mm
Rectangular aluminium tube 40×120×2 mm is a robust closed profile made from alloy EN AW-6060 T64 (AlMgSi0.5 / PA38). Thanks to its rectangular cross-section with a 1:3 aspect ratio, the profile combines high rigidity with a low self-weight of just 3.38 kg at a length of 2000 mm. The mill finish, unanodised aluminium surface provides natural corrosion resistance and is ready for further processing — anodising, powder coating, or leaving in its natural state.
The profile is easy to machine — it can be cut, drilled for fixing holes, bent, or joined to other structural elements without difficulty. It is a versatile material suitable for both structural and finishing applications.
Dimensions and technical parameters
- Cross-section: closed rectangular tube
- External width (A): 40 mm
- External height (B): 120 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (w × h × l): 40 × 120 × 2000 mm
- Weight: 3.38 kg (1.69 kg/m)
Material and surface
- Aluminium alloy: EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: mill finish (unanodised)
Applications
The 40×120 mm rectangular profile is widely used in the installation and construction sectors. It is ideal wherever a lightweight yet rigid structure is required:
- Aluminium structures and load-bearing frames
- Balustrades and handrails
- Frames and supports for equipment
- Furniture and decorative elements
- Model-making structures and DIY projects
The profile is available in a range of cross-section sizes and wall thicknesses, allowing the optimum variant to be selected for the requirements of any specific project.
Technical data
| Wall Thickness [mm] | 2 |
| Length [mm] | 2000 |
| Height [mm] | 120 |
| Material | Aluminium |
