Rectangular aluminium tube 40×100×4 mm – closed profile EN AW-6060, L=2000 mm
0
Description

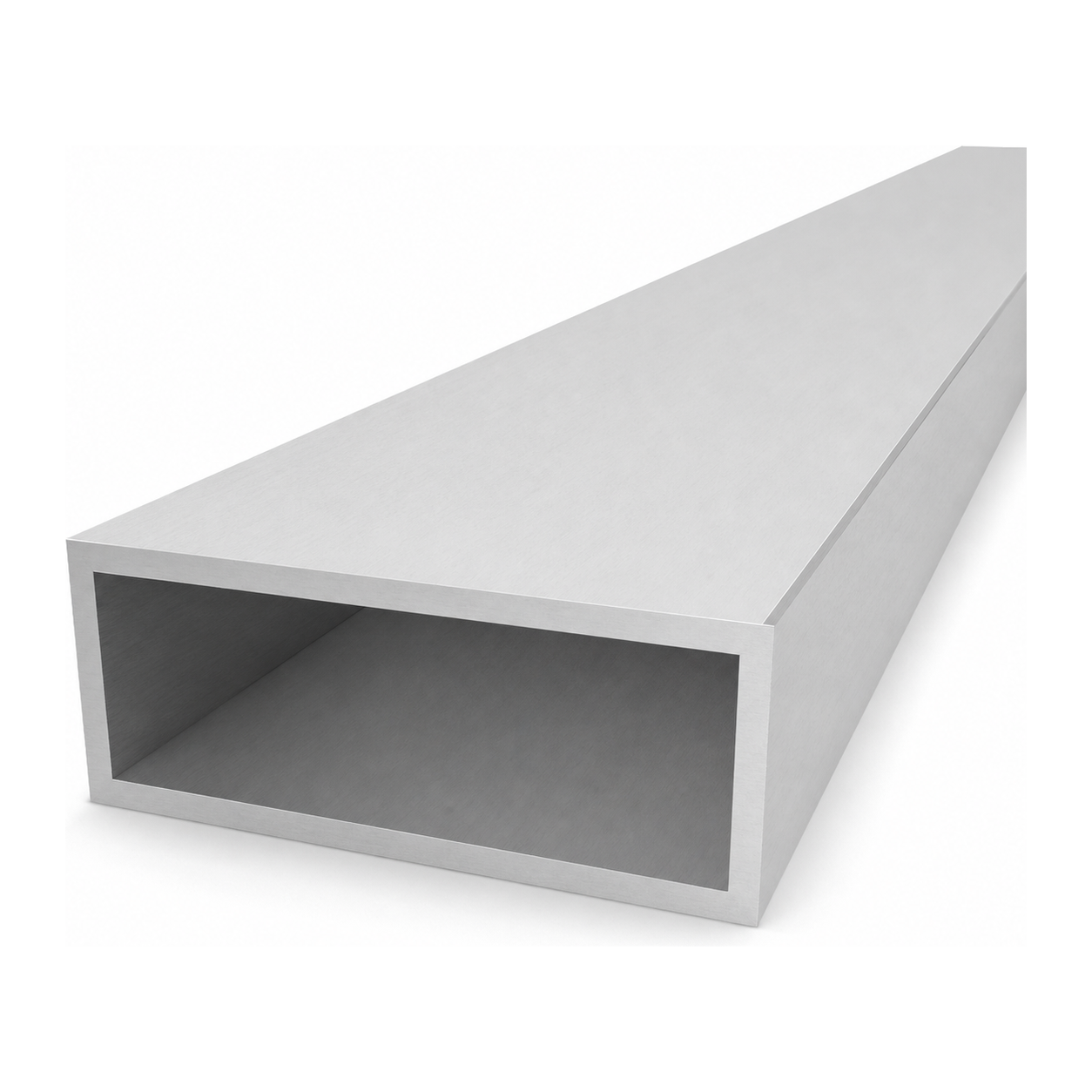

Rectangular aluminium tube 40×100×4 mm – closed profile EN AW-6060, L=2000 mm
Rectangular aluminium tube 40×100×4 mm with a length of 2000 mm is a robust closed profile made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). Thanks to its excellent stiffness-to-weight ratio and natural corrosion resistance, it is well suited as a load-bearing element in aluminium structures, frames, railings, and handrails.
Versatility in machining and assembly
This rectangular aluminium profile is lightweight, rigid, and easy to machine — it can be cut, drilled, bent, and joined without specialist equipment. The raw (non-anodised) surface allows further processing: powder coating, anodising, or leaving in its natural state. The rectangular cross-section provides high rigidity in the direction of the larger dimension, which is important when designing frames and load-bearing structures.
Typical applications: aluminium structures, railings and handrails, frames and supports, furniture, decorative elements, model making, and DIY projects.
Technical specification
- Cross-section: closed rectangular tube
- Outer width (A): 40 mm
- Outer height (B): 100 mm
- Wall thickness (T): 4 mm
- Length: 2000 mm
- Dimensions (W × H × L): 40 × 100 × 2000 mm
- Weight: 5.70 kg (2.85 kg/m)
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Technical data
| Material | Aluminium |
| Wall Thickness [mm] | 4 |
| Length [mm] | 2000 |
| Height [mm] | 100 |
