Rectangular aluminium tube 30×80×3 mm – closed profile EN AW-6060, L=2000 mm
0
Description

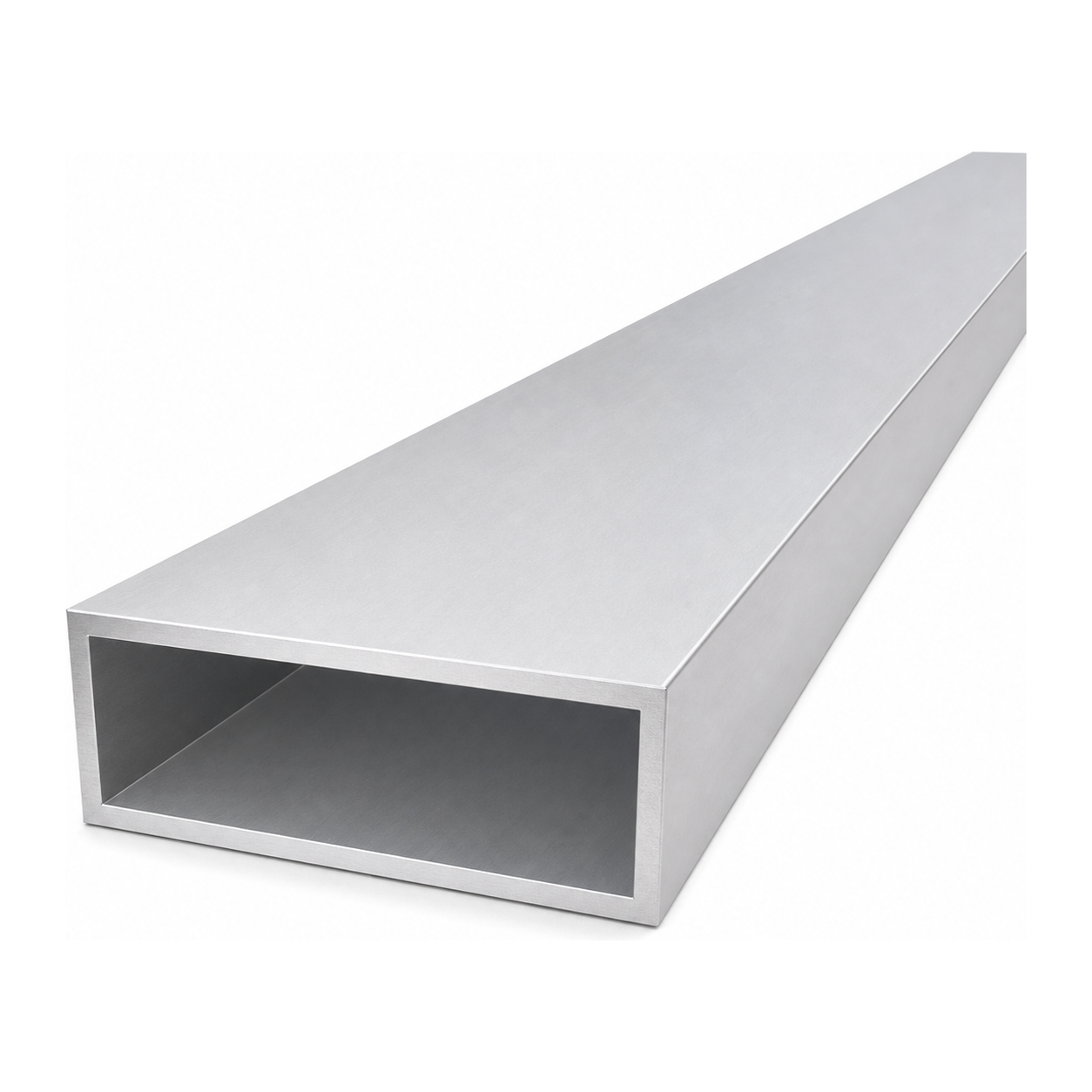

Rectangular aluminium tube 30×80×3 mm – closed profile EN AW-6060, L=2000 mm
Rectangular aluminium tube 30×80×3 mm is a sturdy closed profile with a rectangular cross-section, made from aluminium alloy EN AW-6060 T64 (AlMgSi0.5 / PA38). Thanks to its excellent stiffness-to-weight ratio, it is ideal wherever lightweight construction is required without compromising load-bearing capacity. The profile is easy to work with — cutting, drilling, bending, and joining — resulting in faster assembly and lower labour costs on site.
The raw (non-anodised) surface allows for any finishing treatment — anodising, powder coating, or leaving in its natural state. The 6060 series aluminium provides natural corrosion resistance, eliminating the need for additional anti-corrosion protection in many applications.
Applications
- Aluminium structures and load-bearing frames
- Balustrades, handrails, and fencing
- Furniture frames and fitted unit frameworks
- Decorative and finishing elements
- Cantilever structures for photovoltaic installations
- Scale modelling and DIY projects
Technical specification

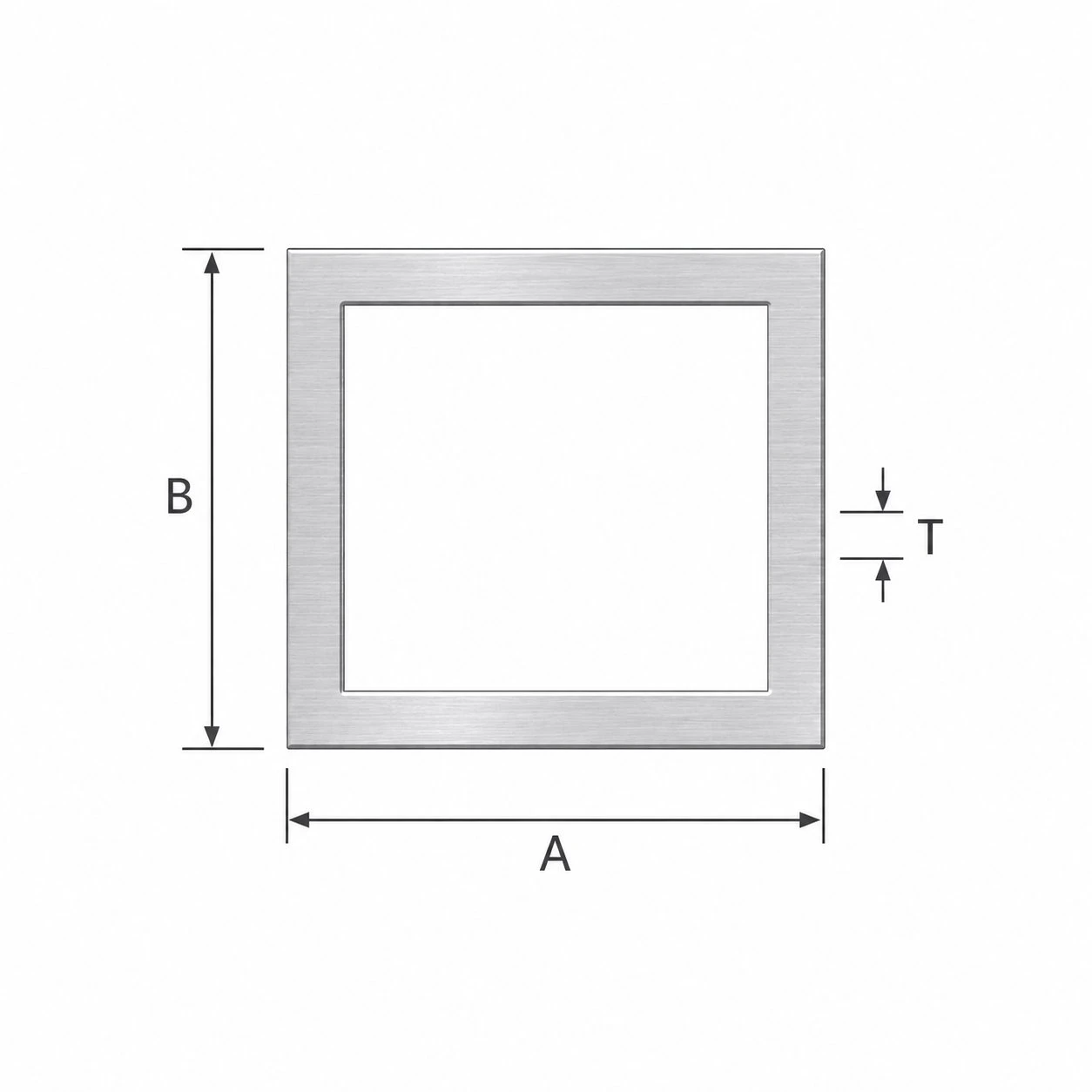

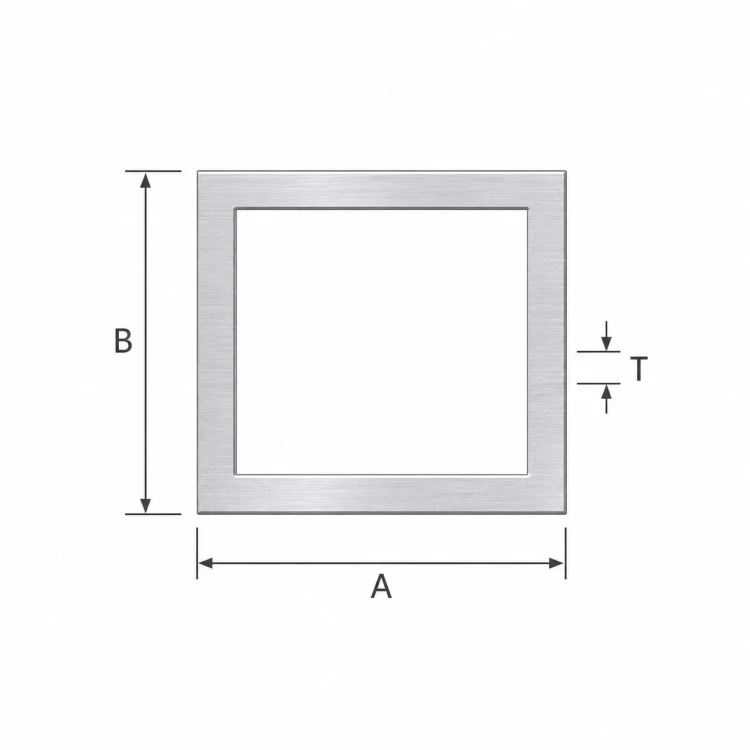

- Section type: closed rectangular tube
- External width (A): 30 mm
- External height (B): 80 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Weight: 3.38 kg (1.69 kg/m)
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
The 30×80 mm rectangular profile provides differing stiffness about two axes — the larger 80 mm dimension yields a significantly greater second moment of area in the vertical direction, which is important for elements subject to bending. A wall thickness of 3 mm ensures the integrity of bolted and riveted connections whilst keeping the overall weight low.
Technical data
| Material | Aluminium |
| Wall Thickness [mm] | 3 |
| Length [mm] | 2000 |
| Height [mm] | 80 |
