Rectangular aluminium tube 30×70×3 mm – closed profile L=2000 mm
0
Description

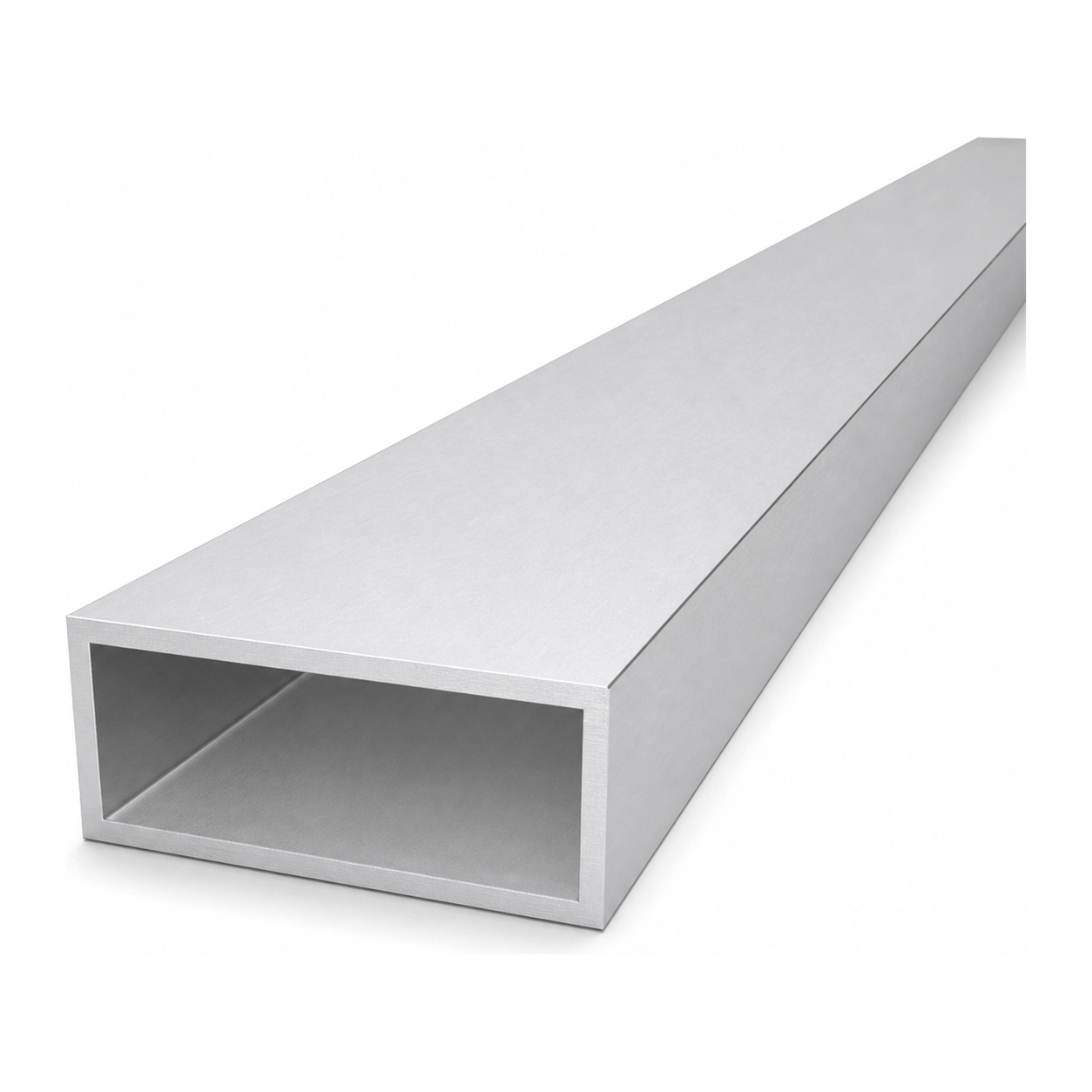

Rectangular aluminium tube 30×70×3 mm – closed profile L=2000 mm
Rectangular aluminium tube 30×70×3 mm is a sturdy closed profile with a length of 2000 mm, made from EN AW-6060 T64 aluminium alloy (AlMgSi0.5 / PA38). Thanks to its light weight, rigidity, and natural corrosion resistance, it is an excellent structural element for a wide variety of installation projects — from frames and mounting structures to balustrades and handrails, as well as aluminium constructions requiring precision profiles with a regular cross-section.
In its raw (non-anodised) state, the profile can be freely processed — it is easy to cut, drill, bend, and join, allowing it to be adapted to individual project requirements without the need for specialist tooling.
Dimensions and technical specification
- Cross-section: closed rectangular tube
- External width (A): 30 mm
- External height (B): 70 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Dimensions (W × H × L): 30 × 70 × 2000 mm
- Weight: 3.04 kg (1.52 kg/m)
Material and surface
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Alloy: AlMgSi0.5
- Surface: raw (non-anodised)
Applications
The 30×70 mm rectangular profile is a versatile structural element used across many industries:
- Aluminium structures — frames, supports, substructures
- Balustrades and handrails — durable and lightweight safety elements
- Frames and mounting structures — for equipment, guards, and technical enclosures
- Furniture and decorative elements — modern interior design solutions
- Modelling and DIY — precision projects requiring a regular profile
The profile is available as part of a product range — in many variants of cross-sectional dimensions and wall thickness, making it easy to select the optimum solution for a specific load and application.
Technical data
| Material | Aluminium |
| Wall Thickness [mm] | 3 |
| Length [mm] | 2000 |
| Height [mm] | 70 |
