Rectangular aluminium tube 30×50×3 mm EN AW-6060 – length 2000 mm
0
Description
Rectangular aluminium tube 30×50×3 mm EN AW-6060 – length 2000 mm

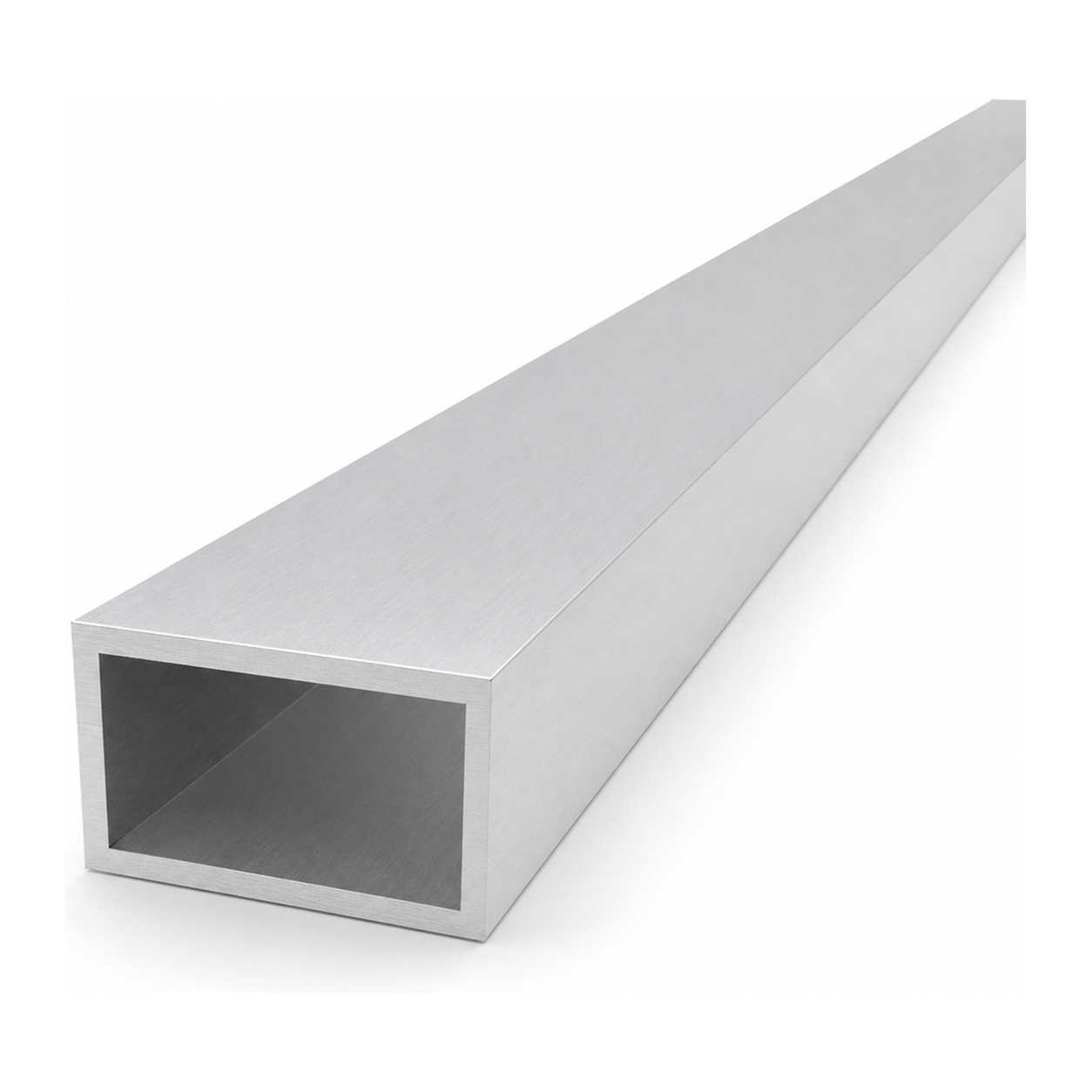

Rectangular aluminium tube 30×50×3 mm is a robust closed rectangular hollow section made from aluminium alloy EN AW-6060 T64 (AlMgSi0.5 / PA38). Thanks to its excellent stiffness-to-weight ratio and aluminium's natural corrosion resistance, this profile is ideal wherever structural durability is required alongside a reduction in overall weight.
The raw, non-anodised surface allows for further finishing — anodising, powder coating, or leaving in its natural state. The profile is easy to cut, drill, bend, and join, resulting in fast assembly and short lead times on site.
Dimensions and technical specification
- Section type: rectangular hollow section
- Outer width (A): 30 mm
- Outer height (B): 50 mm
- Wall thickness (T): 3 mm
- Length: 2000 mm
- Weight: 2.40 kg (linear weight: 1.20 kg/m)
- Dimensions: 30 × 50 × 2000 mm
Material
- Alloy: aluminium EN AW-6060 T64 (AlMgSi0.5)
- Alternative designations: PA38, 3.3206
- Surface: raw (non-anodised)
Applications
The 30×50 mm rectangular profile is widely used in installation and structural work:
- Aluminium structures — frames, load-bearing frames, cladding skeletons
- Balustrades and handrails — infill elements and posts
- Frames and supports — for equipment, signage, and installations
- Furniture and decorative elements — table legs, shelving, fitted units
- Modelling and DIY — projects requiring a lightweight, rigid profile
The profile is available as part of a range covering many combinations of cross-section dimensions and wall thicknesses, making it easy to match individual project requirements.
Technical data
| Material | Aluminium |
| Wall Thickness [mm] | 3 |
| Length [mm] | 2000 |
| Height [mm] | 50 |
