Rectangular aluminium tube 30×40×2 mm – closed profile EN AW-6060, L=2000 mm
0
Description

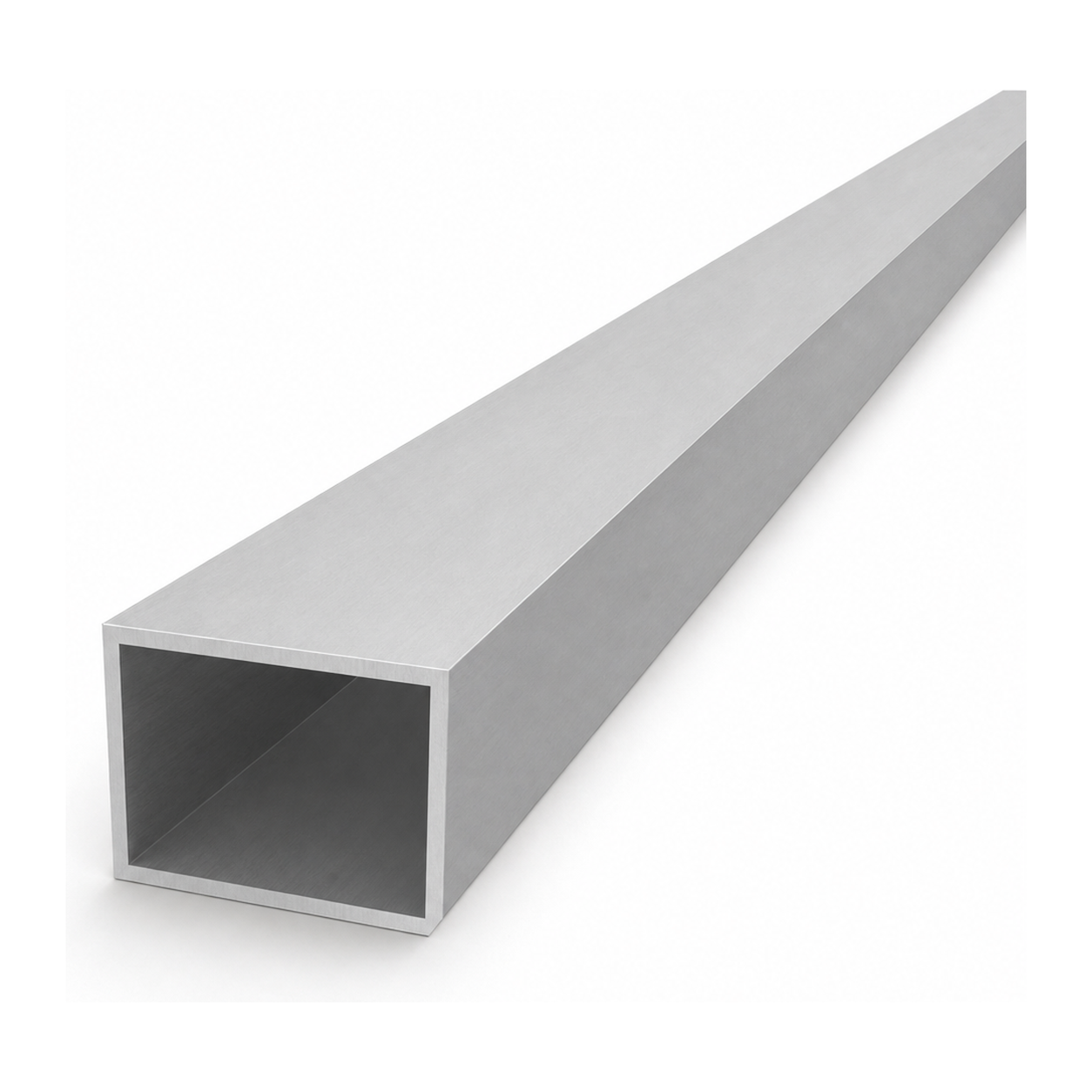

Rectangular aluminium tube 30×40×2 mm – closed profile EN AW-6060, L=2000 mm
Rectangular aluminium tube 30×40×2 mm is a versatile closed profile with a length of 2000 mm, made from EN AW-6060 T64 aluminium alloy (PA38 / AlMgSi0.5). With a low weight of just 1.42 kg whilst maintaining high rigidity and corrosion resistance, the profile is well suited to lightweight aluminium structures as well as finishing elements — balustrades, frames, chassis, and furniture.
The raw, non-anodised surface allows any finishing treatment — anodising, powder coating, or leaving in its natural state. The material is easy to cut, drill, bend, and join, resulting in quick and convenient installation on site.
Cross-section dimensions
- External width (A): 30 mm
- External height (B): 40 mm
- Wall thickness (T): 2 mm
- Profile length: 2000 mm
- Dimensions (W × H × L): 30 × 40 × 2000 mm
Material specification
- Material: aluminium EN AW-6060 T64 (PA38 / 3.3206)
- Alloy: AlMgSi0.5
- Section: closed rectangular tube
- Surface: raw (non-anodised)
- Weight: 1.42 kg (0.71 kg/m)
Applications
- Aluminium structures and load-bearing frames
- Balustrades, handrails, and fencing
- Equipment frames and chassis
- Furniture and decorative elements
- Modelling and DIY projects
The profile belongs to a wide range of rectangular tubes available in many cross-sectional dimension and wall thickness variants, allowing the optimum profile to be selected for any specific project.
Technical data
| Height [mm] | 40 |
| Material | Aluminium |
| Wall Thickness [mm] | 2 |
| Length [mm] | 2000 |
