Rectangular aluminium tube 30×120×2 mm – closed profile L=2000 mm
0
Description

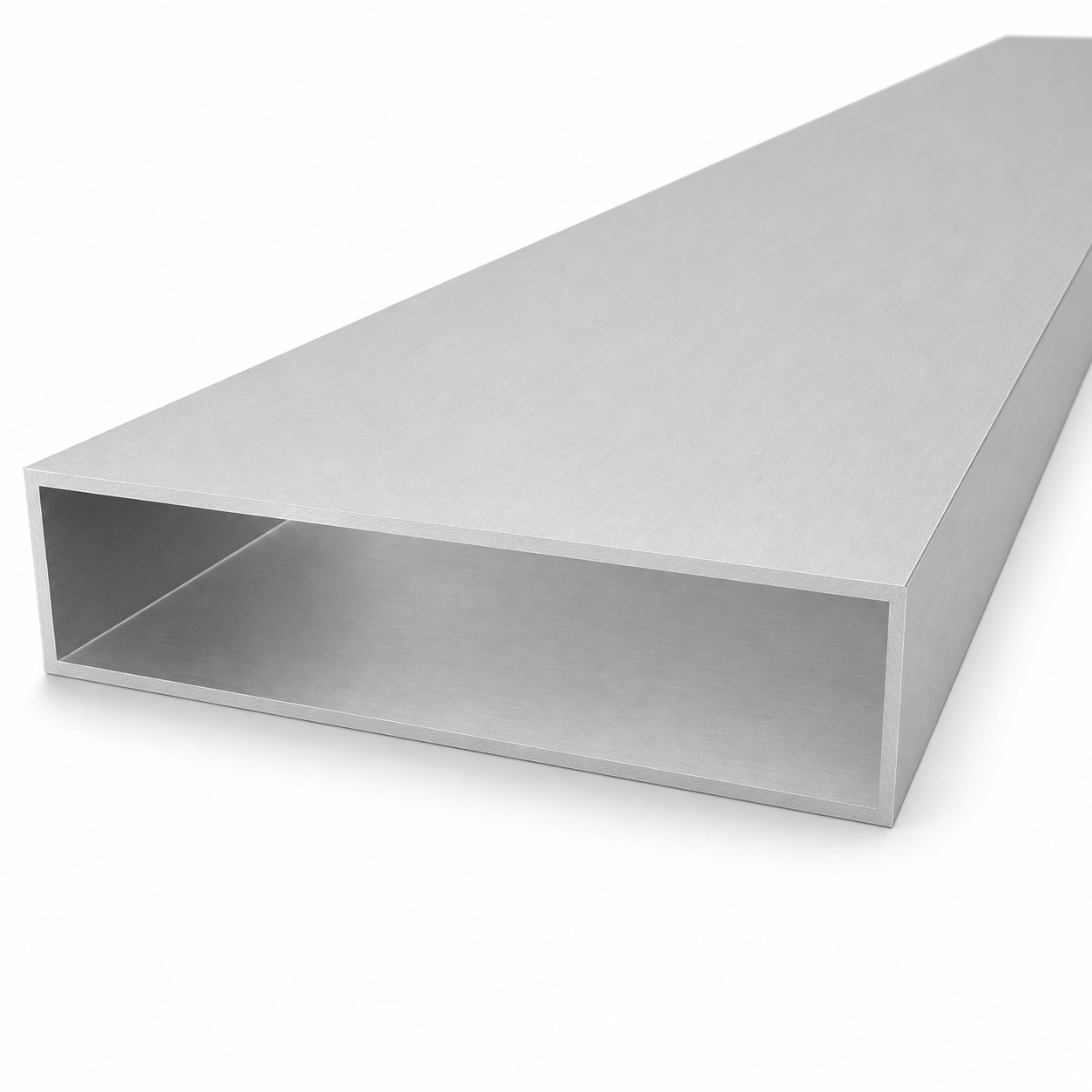

Rectangular aluminium tube 30×120×2 mm – closed profile L=2000 mm
Rectangular aluminium tube 30×120×2 mm is a robust closed profile with a length of 2000 mm, made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). Thanks to the high height-to-width ratio of the cross-section (120 × 30 mm), the profile offers excellent rigidity at a low self-weight of just 3.16 kg per 2-metre length. The raw, non-anodised aluminium surface provides natural corrosion resistance whilst allowing further finishing — anodising, powder coating, or painting depending on project requirements.
The profile is easy to machine — suitable for cutting, drilling, bending, and joining using standard workshop tools. It is a versatile structural element equally suited to professional installation projects and individual bespoke designs.
Technical Specification
- Cross-section: closed rectangular tube
- Outer width (A): 30 mm
- Outer height (B): 120 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (W × H × L): 30 × 120 × 2000 mm
- Weight: 3.16 kg (linear weight: 1.58 kg/m)
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures — frames, load-bearing frames, enclosure skeletons
- Balustrades and handrails
- Furniture and decorative elements
- Scale modelling and DIY projects
The profile is available in a range of sizes covering numerous cross-section dimensions and wall thicknesses, allowing the optimum variant to be selected for a specific load and application.
Technical data
| Wall Thickness [mm] | 2 |
| Length [mm] | 2000 |
| Height [mm] | 120 |
| Material | Aluminium |
