Rectangular aluminium tube 25×40×3 mm EN AW-6060 – length 2000 mm
0
Description
Rectangular aluminium tube 25×40×3 mm EN AW-6060 – length 2000 mm

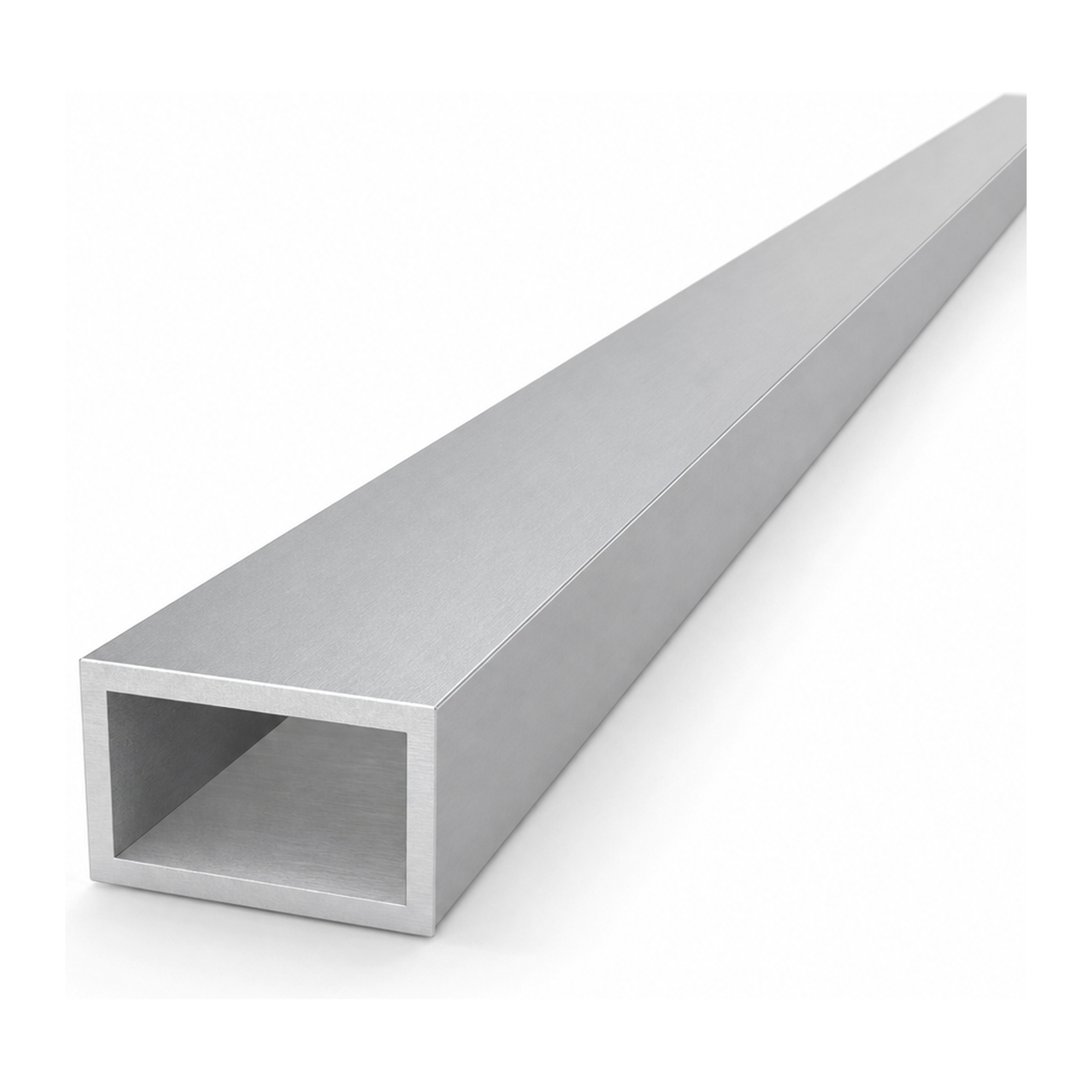

Rectangular aluminium tube 25×40×3 mm is a versatile closed profile made from aluminium alloy EN AW-6060 T64 (AlMgSi0.5 / PA38). Thanks to its excellent strength-to-weight ratio and natural corrosion resistance, the profile is well suited for professional aluminium structures, frameworks, frames, balustrades and handrails, as well as for the manufacture of furniture and decorative elements.
The raw (non-anodised) surface allows for further processing – anodising, powder coating or direct mechanical joining. Aluminium grade 6060 T64 is easy to cut, drill, bend and weld, which significantly reduces lead times on site and in the workshop.
Dimensions and technical specification
- Cross-section: closed rectangular tube
- External width (A): 25 mm
- External height (B): 40 mm
- Wall thickness (T): 3 mm
- Profile length: 2000 mm
- Overall dimensions: 25 × 40 × 2000 mm
- Weight: 1.92 kg (0.96 kg/m)
Material and surface
- Aluminium alloy: EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
- Corrosion resistance: high – natural aluminium oxide layer
Applications
- Aluminium structures and load-bearing frameworks
- Balustrades, handrails and fencing
- Furniture frames and skeletons
- Decorative and finishing elements
- Modelling and prototyping
The profile is available in a range covering many cross-sectional dimensions and wall thicknesses, enabling selection of the optimum variant for a specific project without the need to order non-standard profiles.
Technical data
| Material | Aluminium |
| Wall Thickness [mm] | 3 |
| Length [mm] | 2000 |
| Height [mm] | 40 |
