Rectangular aluminium tube 25×100×2 mm – closed profile EN AW-6060, L=2000 mm
0
Description

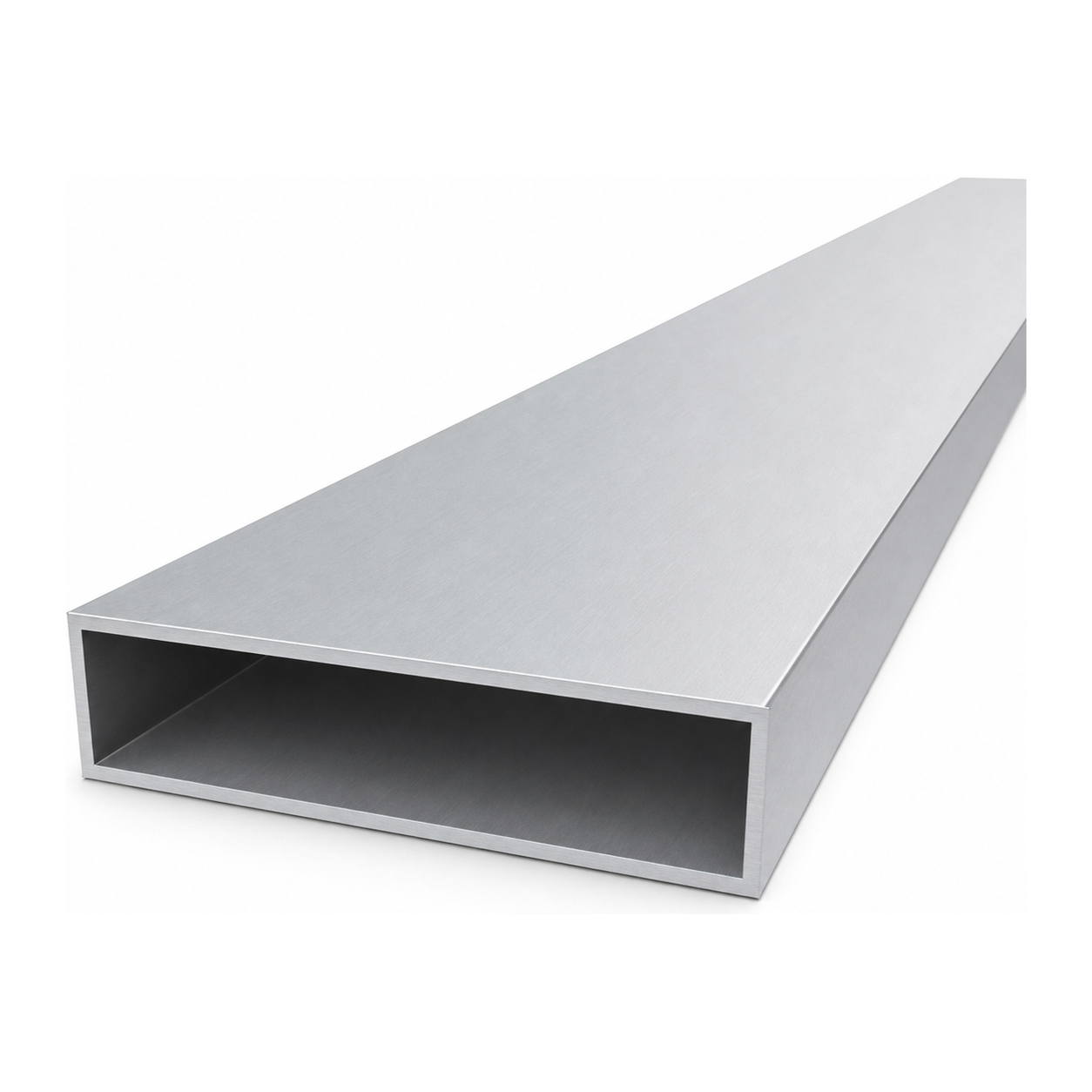

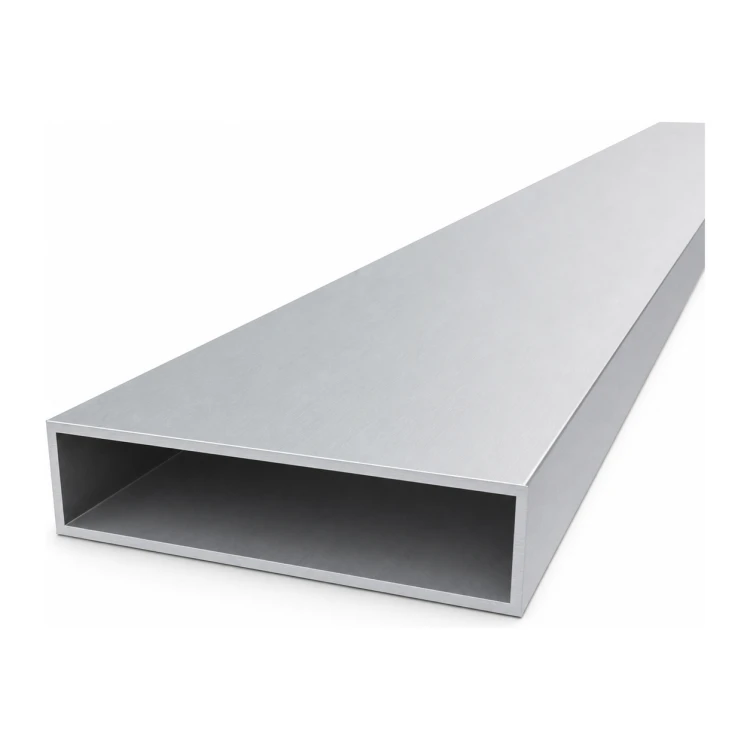

Rectangular aluminium tube 25×100×2 mm – closed profile EN AW-6060, L=2000 mm
Rectangular aluminium tube 25×100×2 mm is a closed rectangular section profile made from EN AW-6060 T64 aluminium alloy (AlMgSi0.5 / PA38). Thanks to its favourable strength-to-weight ratio, this profile is an excellent structural element for fabricating frames, railings, balustrades and handrails, as well as for decorative and modelling applications.
The 6060-series aluminium provides high corrosion resistance without the need for additional surface protection, whilst also being easy to process — cutting, drilling, bending and mechanical joining. The profile surface is raw (unanodised), allowing any finishing treatment: anodising, powder coating or polishing in accordance with project requirements.
Dimensions and technical specification
- Section: closed rectangular tube
- External width (A): 25 mm
- External height (B): 100 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (w × h × l): 25 × 100 × 2000 mm
- Weight: 2.62 kg (1.31 kg/m)
Material
- Alloy: aluminium EN AW-6060 T64
- Designation per PN: PA38
- Chemical designation: AlMgSi0.5
- Material number: 3.3206
- Surface: raw (unanodised)
Applications
The 25×100 mm rectangular profile is widely used wherever rigidity at low self-weight is required. It is ideally suited for aluminium structures, balustrades and handrails, supporting frames and chassis, furniture, and decorative elements. It is also well suited to modelling and DIY projects. The profile is available in a range covering many cross-section and wall thickness variants, making it easy to select the optimum solution for any project.
Technical data
| Wall Thickness [mm] | 2 |
| Length [mm] | 2000 |
| Height [mm] | 100 |
| Material | Aluminium |
