Rectangular aluminium tube 20×60×1.5 mm – closed profile L=2000 mm
0
Description

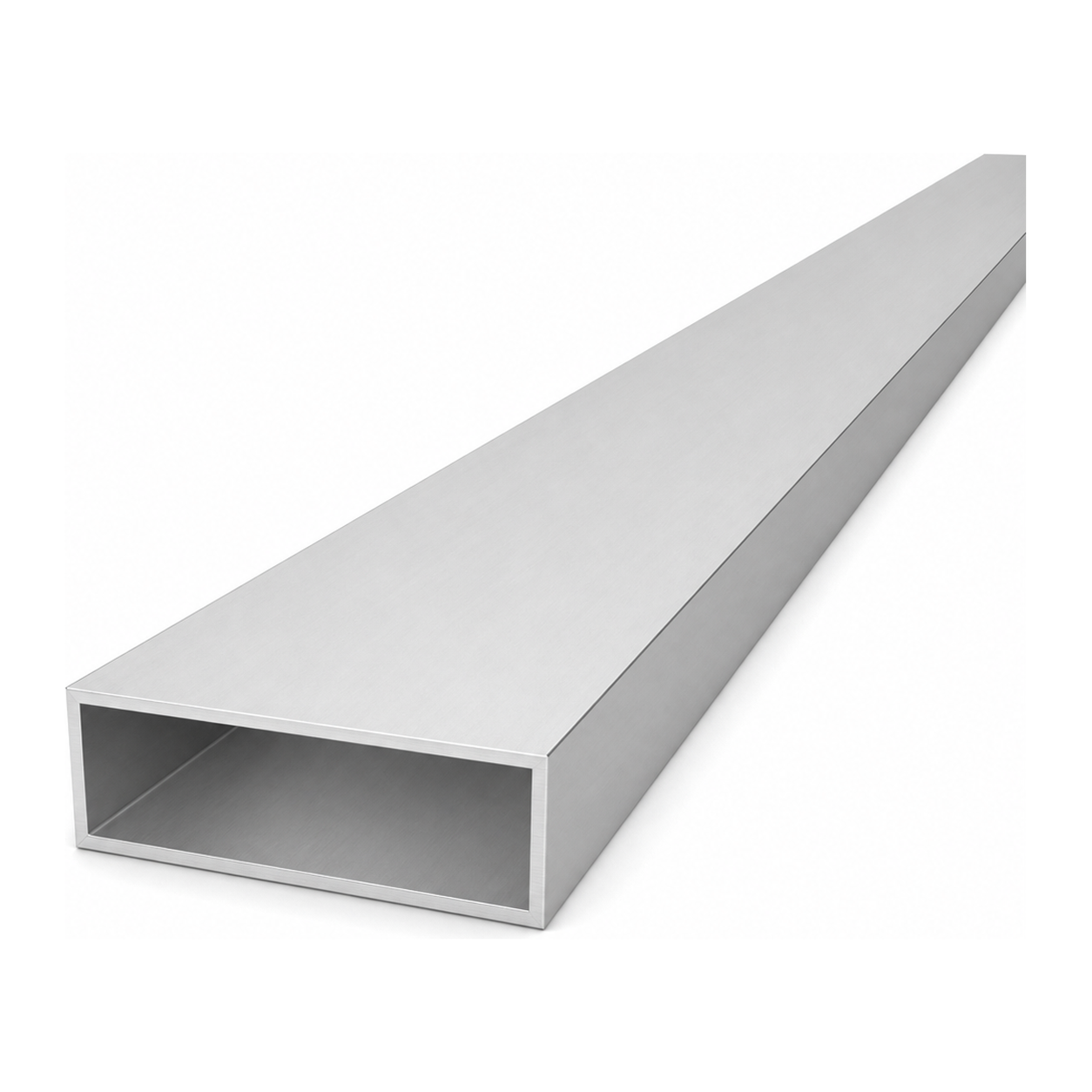

Rectangular aluminium tube 20×60×1.5 mm – closed profile L=2000 mm
Rectangular aluminium tube 20×60×1.5 mm is a versatile closed profile with a length of 2000 mm, made from EN AW-6060 T64 aluminium alloy (PA38, AlMgSi0.5). Thanks to its excellent stiffness-to-weight ratio, the profile is ideally suited for aluminium structures, frames, load-bearing frameworks, balustrades and handrails, as well as decorative and furniture elements.
6060 series aluminium provides high corrosion resistance without the need for additional surface protection, reducing material costs and lead times. The profile is easy to process — cutting, drilling, bending and joining — allowing installation companies to quickly adapt it to the individual requirements of any project.
Dimensions and technical specifications
- Section: closed rectangular tube
- External width (A): 20 mm
- External height (B): 60 mm
- Wall thickness (T): 1.5 mm
- Length: 2000 mm
- Dimensions (w × h × l): 20 × 60 × 2000 mm
- Weight: 1.24 kg (0.62 kg/m)
- Material: aluminium PA38 (EN AW-6060 T64), alloy AlMgSi0.5
- Surface: raw (non-anodised)
Applications
- Aluminium structures and load-bearing frames
- Balustrades and handrails
- Equipment frames and enclosures
- Furniture and decorative elements
- Modelling and DIY projects
The profile is available as part of a product range — in a variety of cross-sectional dimensions and wall thicknesses — allowing the optimum variant to be selected for any project.
Technical data
| Height [mm] | 60 |
| Material | Aluminium |
| Wall Thickness [mm] | 1.5 |
| Length [mm] | 2000 |
