Rectangular aluminium tube 20×120×2 mm – closed profile, length 2000 mm
0
Description

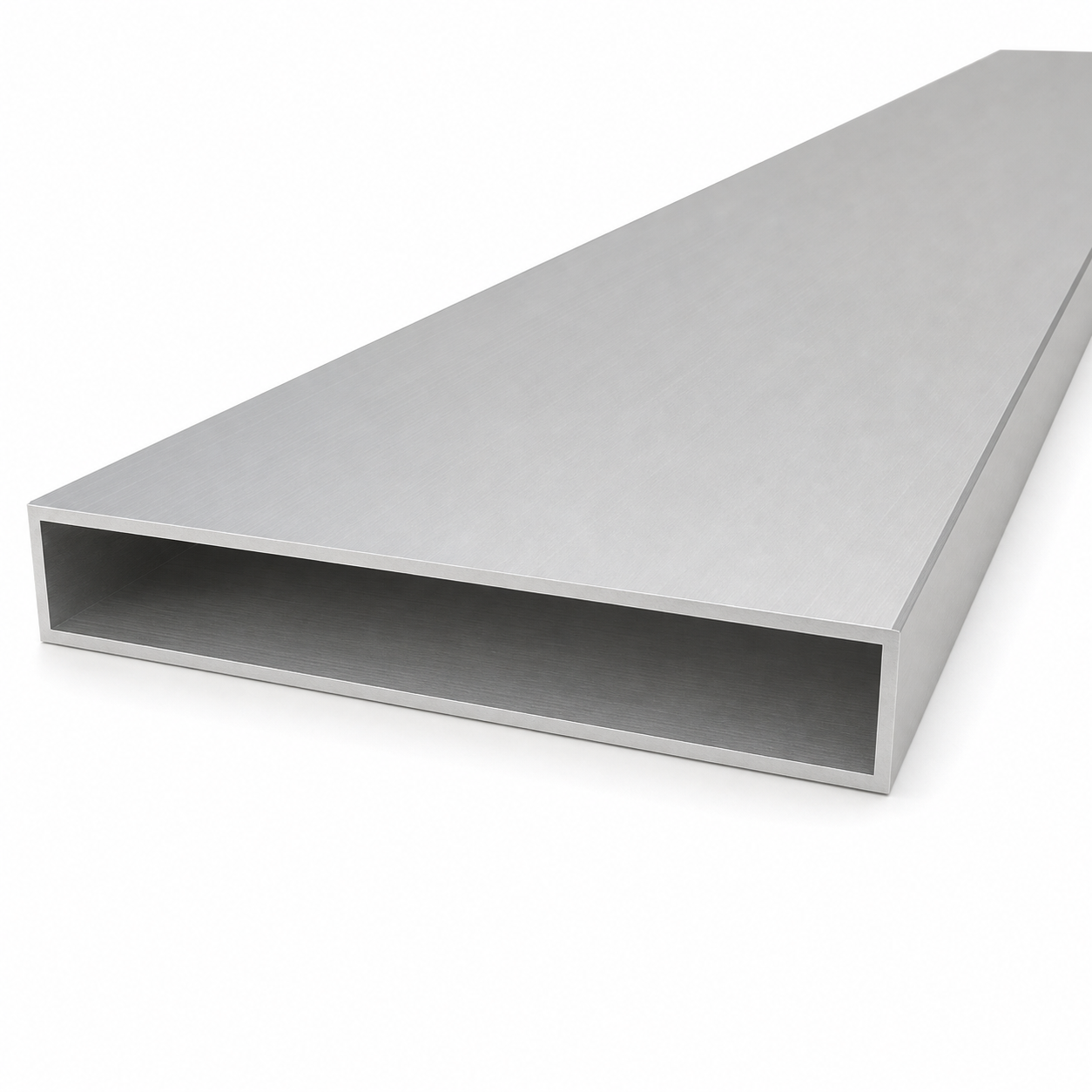

Rectangular aluminium tube 20×120×2 mm – closed profile, length 2000 mm
Rectangular aluminium tube 20×120×2 mm is a robust closed profile with a rectangular cross-section, made from aluminium alloy EN AW-6060 T64 (AlMgSi0.5 / PA38). Thanks to its excellent stiffness-to-weight ratio and the natural corrosion resistance of aluminium, this profile is ideal wherever structural durability is required whilst keeping overall weight to a minimum.
The raw, non-anodised surface allows for further processing — anodising, powder coating, or painting — enabling the finish to be tailored to a specific project. The profile is easy to cut, drill, bend, and join, speeding up assembly work and reducing lead times.
Applications
- Aluminium structures and load-bearing frames
- Balustrades, handrails, and fencing
- Frames and supports for equipment
- Furniture and decorative elements
- Scale modelling and DIY projects
Dimensions and technical specifications
- Section: closed rectangular tube
- External width (A): 120 mm
- External height (B): 20 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (w × h × l): 20 × 120 × 2000 mm
- Weight: 2.94 kg (1.47 kg/m)
Material
- Alloy: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
- Properties: lightweight, high rigidity, corrosion resistant
The profile is available as part of a product range — in numerous cross-section dimension and wall thickness variants — making it straightforward to select the optimum solution for a given structure.
Technical data
| Length [mm] | 2000 |
| Height [mm] | 120 |
| Material | Aluminium |
| Wall Thickness [mm] | 2 |
