Rectangular aluminium tube 18×30×1.2 mm – closed section profile L=2000 mm EN AW-6060
0
Description

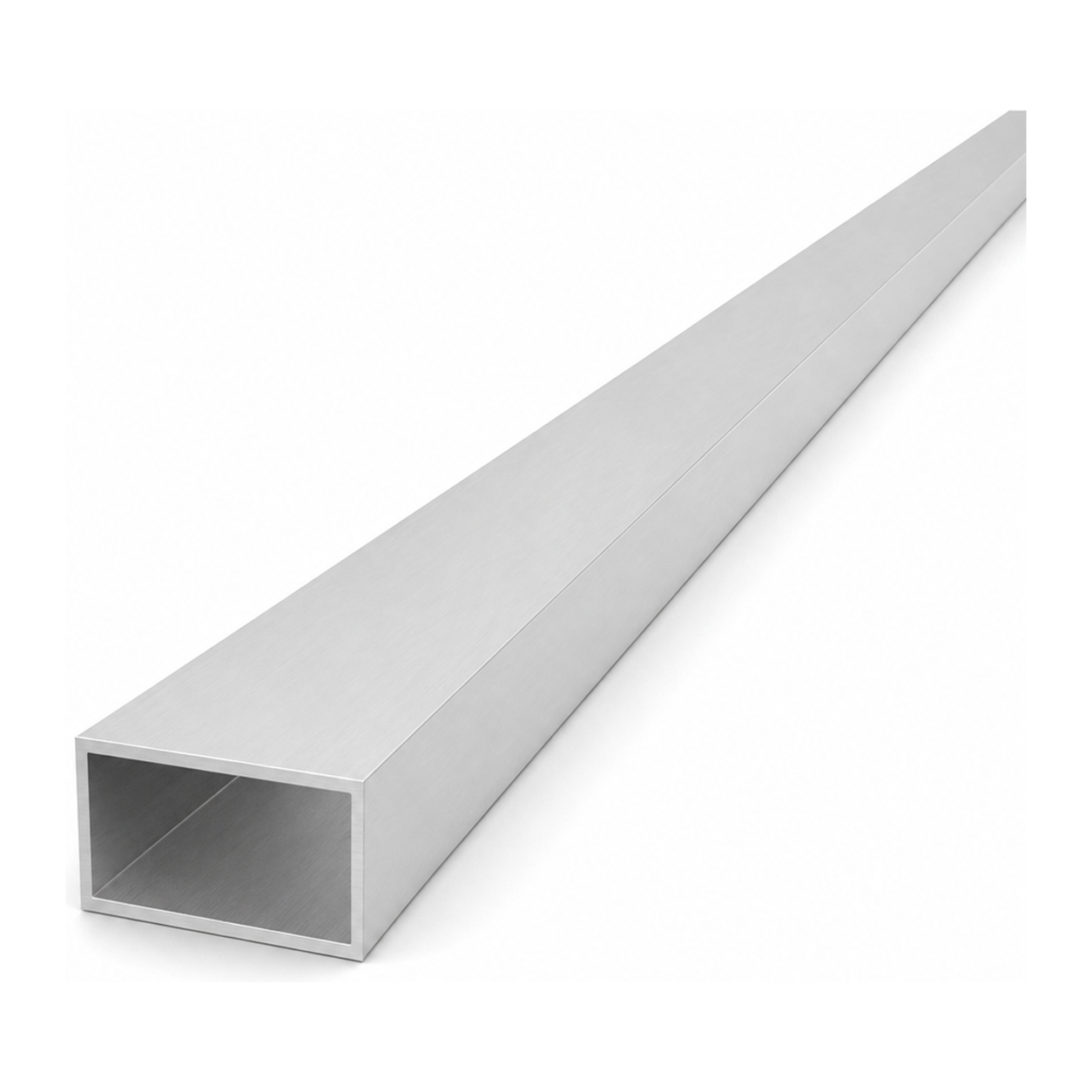

Rectangular aluminium tube 18×30×1.2 mm – closed section profile L=2000 mm EN AW-6060
Rectangular aluminium tube 18×30×1.2 mm is a lightweight and durable closed section profile made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). Thanks to its excellent stiffness-to-weight ratio and natural corrosion resistance, it performs reliably wherever a long-lasting, easy-to-machine structure is required — from frameworks and frames to balustrades, furniture components, and modelling projects.
The profile in its raw (non-anodised) finish allows for unrestricted processing: cutting, drilling, bending, and joining without the need for specialist tools. The 2000 mm length allows convenient use of the full section or economical cutting to suit individual project requirements.
Dimensions and technical specification
- Section: closed rectangular tube
- External width (A): 18 mm
- External height (B): 30 mm
- Wall thickness (T): 1.2 mm
- Length: 2000 mm
- Dimensions (W × H × L): 18 × 30 × 2000 mm
- Weight: 0.60 kg (0.30 kg/m)
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and frameworks
- Balustrades and handrails
- Load-bearing and support frames
- Furniture and decorative elements
- Modelling and DIY projects
The profile is available in a range of sizes covering multiple cross-section variants and wall thicknesses, making it straightforward to select the optimum solution for any specific project.
Technical data
| Material | Aluminium |
| Wall Thickness [mm] | 1.2 |
| Length [mm] | 2000 |
| Height [mm] | 30 |
