Rectangular aluminium tube 10×20×2 mm – closed profile EN AW-6060, L=2000 mm
0
Description
Rectangular aluminium tube 10×20×2 mm – closed profile EN AW-6060, L=2000 mm

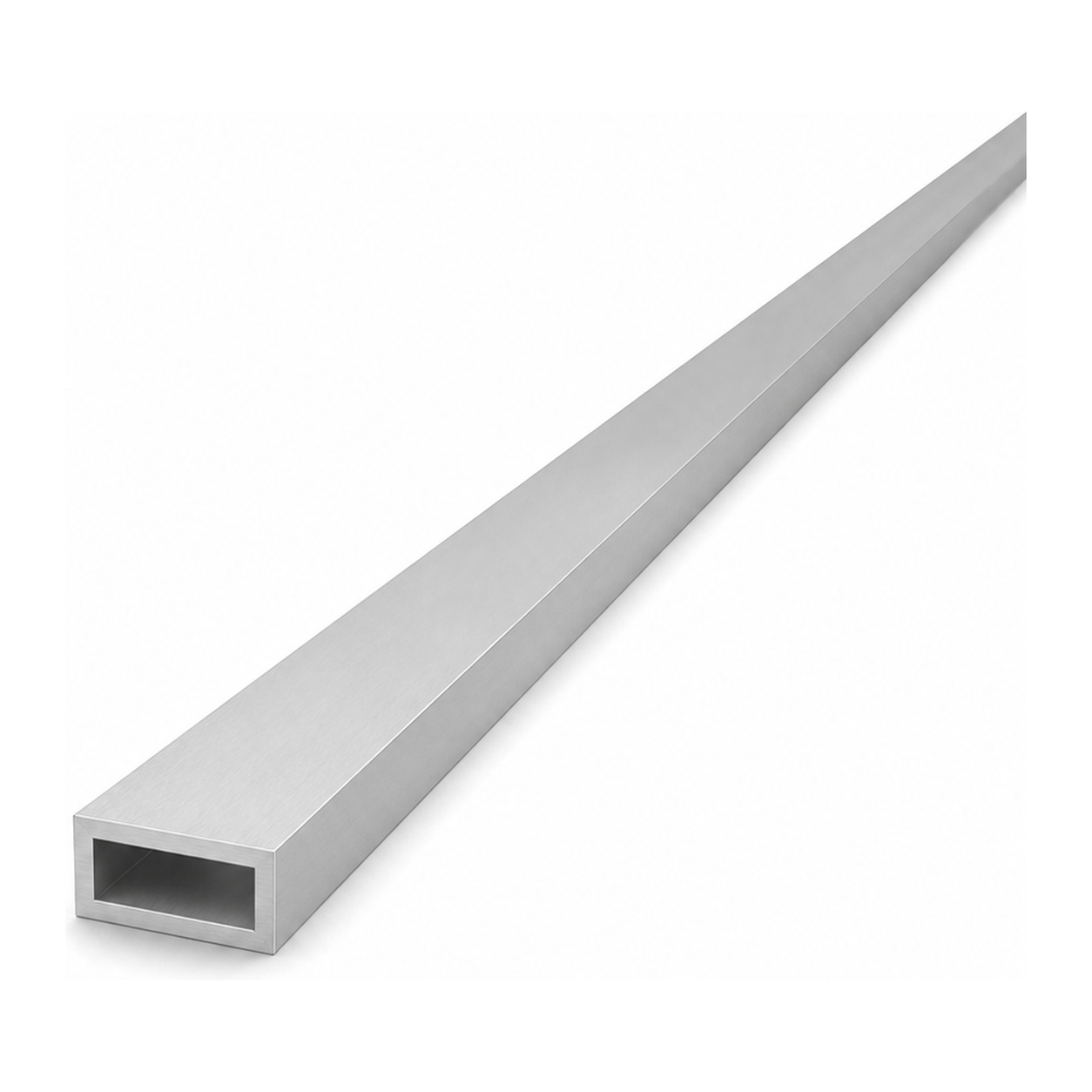

Rectangular aluminium tube 10×20×2 mm is a lightweight and durable closed profile with a length of 2000 mm, made from EN AW-6060 T64 aluminium alloy (AlMgSi0.5 / PA38). Thanks to its favourable stiffness-to-weight ratio and high corrosion resistance, this profile is ideal wherever structural durability at minimal weight is essential — from frames and mounting structures, through balustrades and handrails, to decorative elements and modelling projects.
The raw (non-anodised) surface allows for further processing — anodising, powder coating, or direct joining with other components. Aluminium grade 6060 T64 is easily cut, drilled, bent, and welded, significantly speeding up workshop and assembly work.
Dimensions and technical specifications
- Cross-section: closed rectangular tube
- Outer width (A): 10 mm
- Outer height (B): 20 mm
- Wall thickness (T): 2 mm
- Length: 2000 mm
- Dimensions (W × H × L): 10 × 20 × 2000 mm
- Weight: 0.56 kg (0.28 kg/m)
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38)
- Surface: raw (non-anodised)
Applications
- Aluminium structures and load-bearing frames
- Balustrades, handrails, and fencing
- Frames, bases, and brackets
- Furniture and interior fittings
- Decorative and finishing elements
- Modelling and workshop projects
The profile is available in a range of cross-sectional dimensions and wall thicknesses, allowing the optimum variant to be selected for any specific project.
Technical data
| Material | Aluminium |
| Wall Thickness [mm] | 2 |
| Length [mm] | 2000 |
| Height [mm] | 20 |
