Rectangular aluminium tube 10×15×1.5 mm EN AW-6060 – length 2000 mm
0
Description
Rectangular aluminium tube 10×15×1.5 mm EN AW-6060 – length 2000 mm

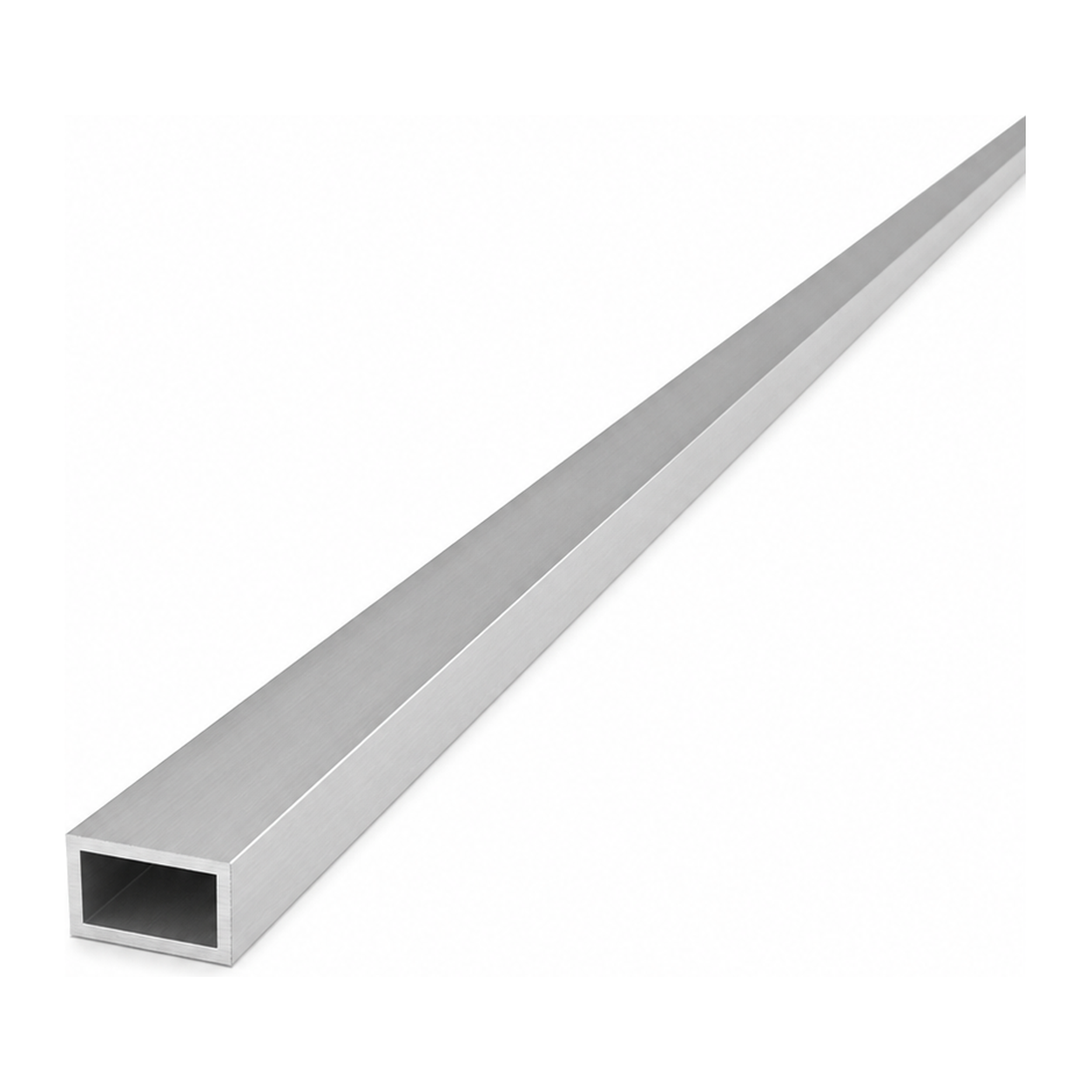

Rectangular aluminium tube 10×15×1.5 mm is a lightweight and durable closed rectangular hollow section made from EN AW-6060 T64 alloy (AlMgSi0.5 / PA38). The two-metre length weighs just 0.36 kg, making it easy to handle and work with even at height. The profile combines good rigidity with low self-weight — ideal wherever a strong, corrosion-resistant aluminium structure is required without additional surface protection.
The raw (non-anodised) surface allows any finishing treatment — anodising, powder coating, or leaving in its natural state. The profile is easy to cut, drill, bend, and join, making it perfectly suited to rapid prototyping and workshop projects.
Dimensions and technical specification
- Section type: closed rectangular tube
- Outer width (A): 10 mm
- Outer height (B): 15 mm
- Wall thickness (T): 1.5 mm
- Length: 2000 mm
- Dimensions (w × h × l): 10 × 15 × 2000 mm
- Weight: 0.36 kg (0.18 kg/m)
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Surface: raw (non-anodised)
Applications
The 10×15 mm rectangular profile is widely used in installation and construction work. Thanks to its small cross-section and low weight, it is suitable as a component for frames, supporting structures, balustrades, handrails, furniture, and decorative details. It is also popular in model-making and DIY projects. The profile is available in a range covering many cross-sectional size and wall thickness variants, making it straightforward to select the optimum solution for a specific project.
Technical data
| Height [mm] | 15 |
| Material | Aluminium |
| Wall Thickness [mm] | 1.5 |
| Length [mm] | 2000 |
