Rectangular Aluminium Tube 25×100×1.2 mm – Closed Profile L=2000 mm
0
Description

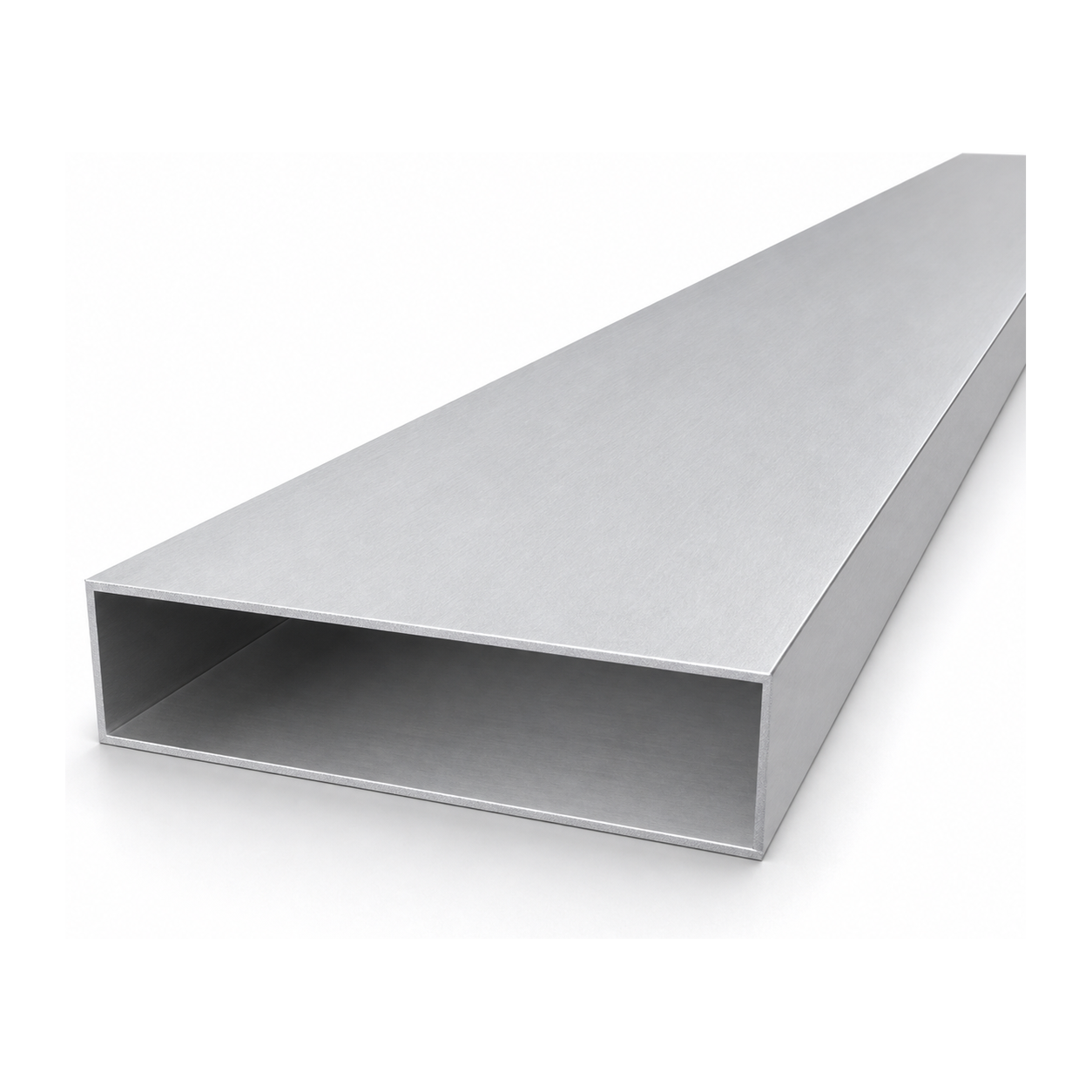

Rectangular Aluminium Tube 25×100×1.2 mm – Closed Profile L=2000 mm
Rectangular aluminium tube 25×100×1.2 mm is a robust closed rectangular section profile, manufactured from EN AW-6060 T64 aluminium alloy (AlMgSi0.5 / PA38). With a low weight of just 1.58 kg at a length of 2000 mm, the profile offers an excellent stiffness-to-weight ratio — an ideal solution for lightweight aluminium structures, frames, housings, and balustrades.
The raw, non-anodised surface allows for any finishing treatment — anodising, powder coating, or painting — enabling the profile to be tailored to the specific requirements of a project. Aluminium 6060 is easy to cut, drill, bend, and join, resulting in fast assembly and minimal installation time.
Dimensions and Section
- Outer width (A): 25 mm
- Outer height (B): 100 mm
- Wall thickness (T): 1.2 mm
- Length: 2000 mm
- Dimensions (W × H × L): 25 × 100 × 2000 mm
Material Specification
- Material: aluminium EN AW-6060 T64 (AlMgSi0.5 / PA38 / 3.3206)
- Section: closed rectangular tube
- Surface: raw (non-anodised)
- Weight: 1.58 kg (0.79 kg/m)
- Corrosion resistance: high — naturally, due to the properties of aluminium
Applications
The profile is suitable for a wide range of professional and workshop applications:
- Aluminium structures and load-bearing frames
- Balustrades and handrails
- Equipment frames and enclosures
- Furniture and decorative elements
- Modelmaking and prototyping
The profile is available in a range covering numerous cross-section and wall thickness variants, allowing the optimum option to be selected for the loads and requirements of any given project.
Technical data
| Material | Aluminium |
| Wall Thickness [mm] | 1.2 |
| Length [mm] | 2000 |
| Height [mm] | 100 |
