Quick link (quick connector) galvanised 3.5 mm – working load limit 60 kg
Leave feedback on the product

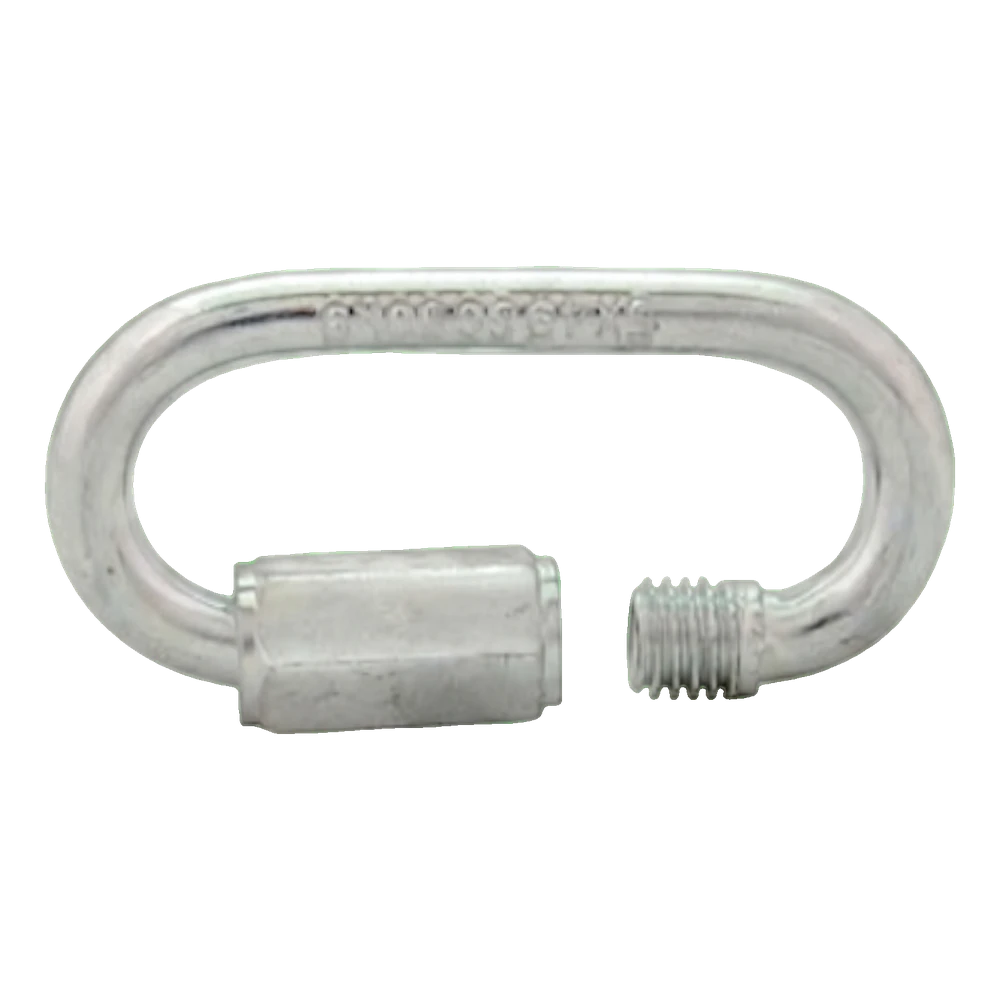

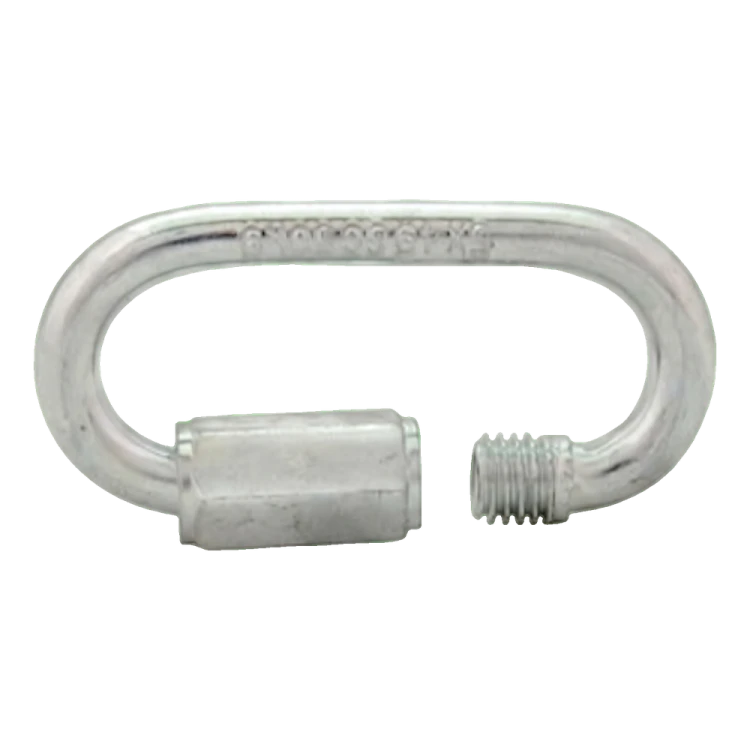

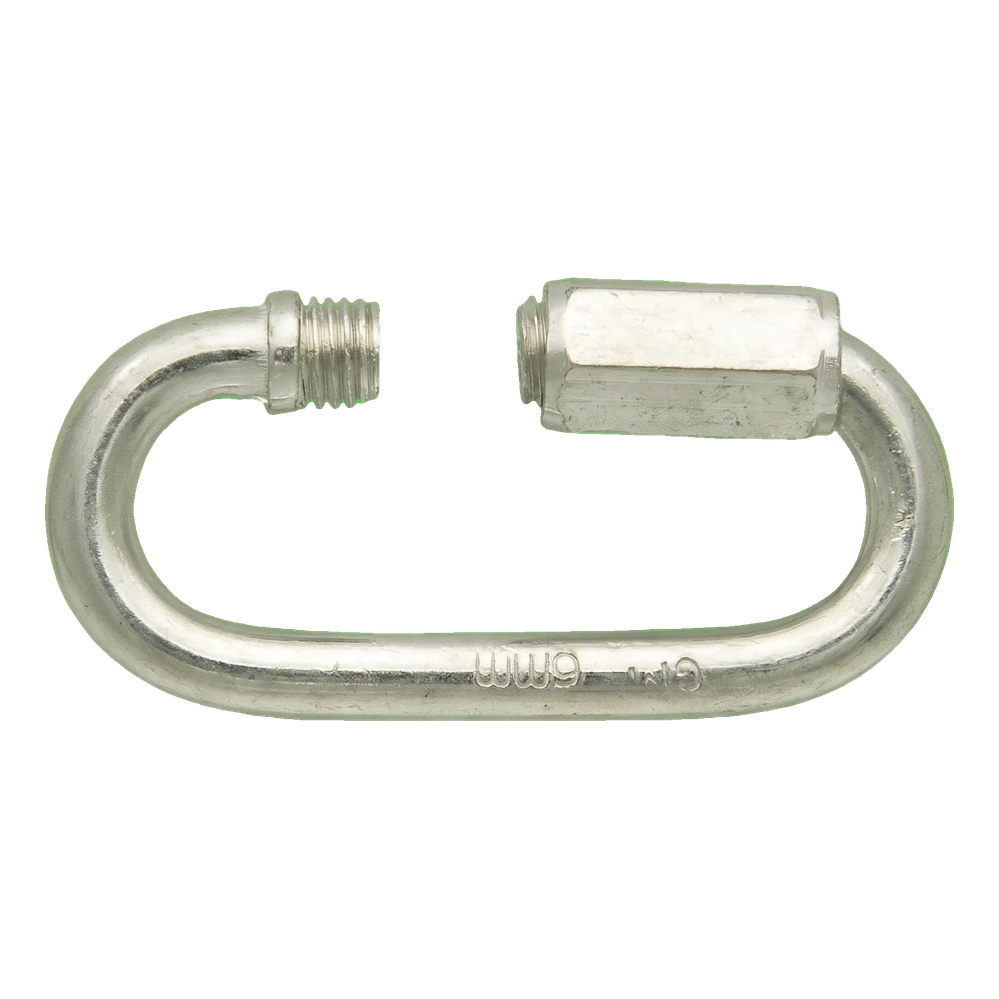

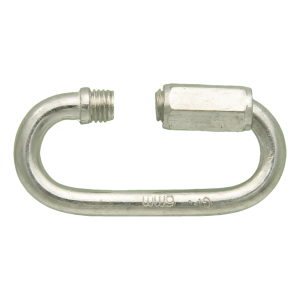

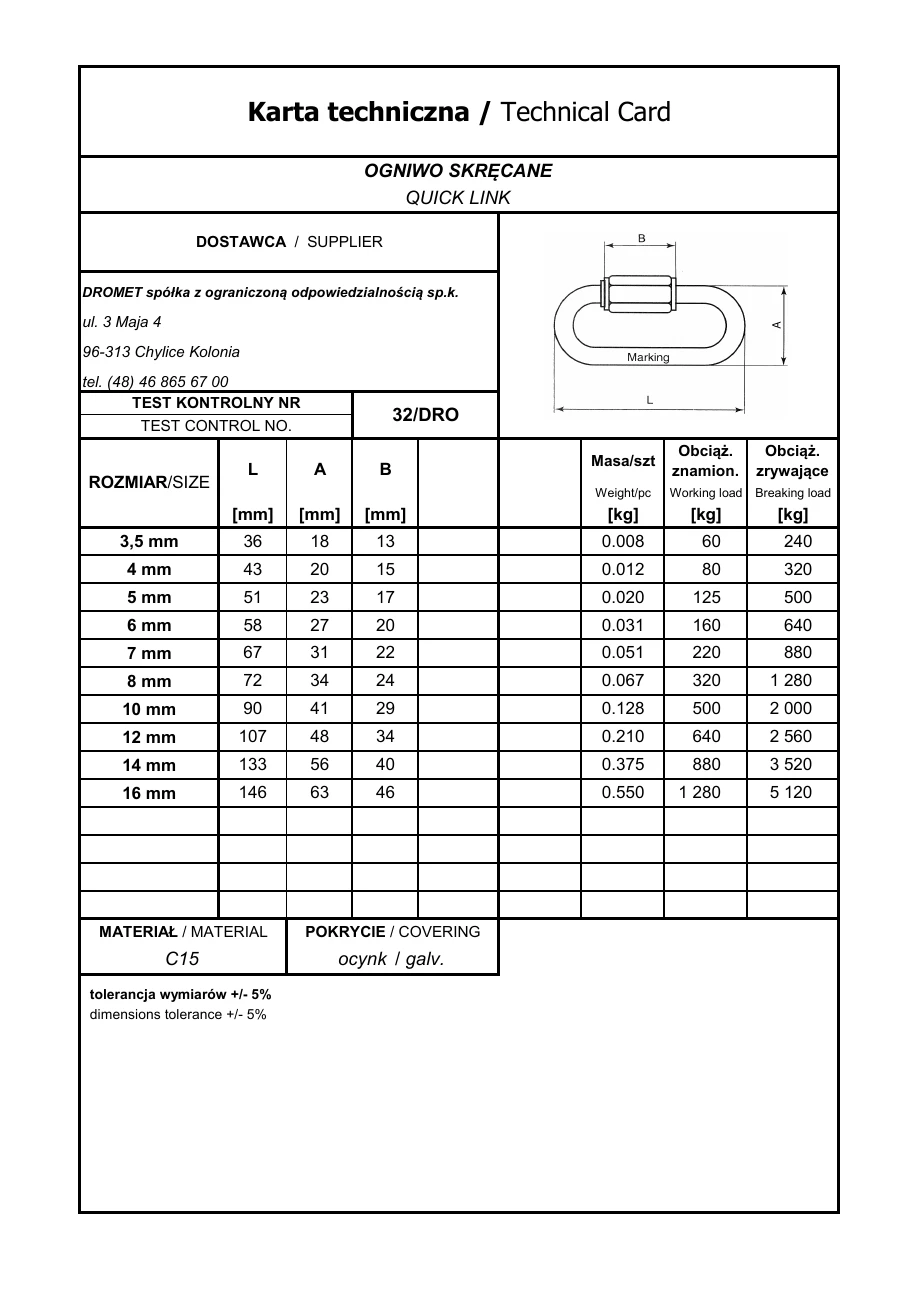

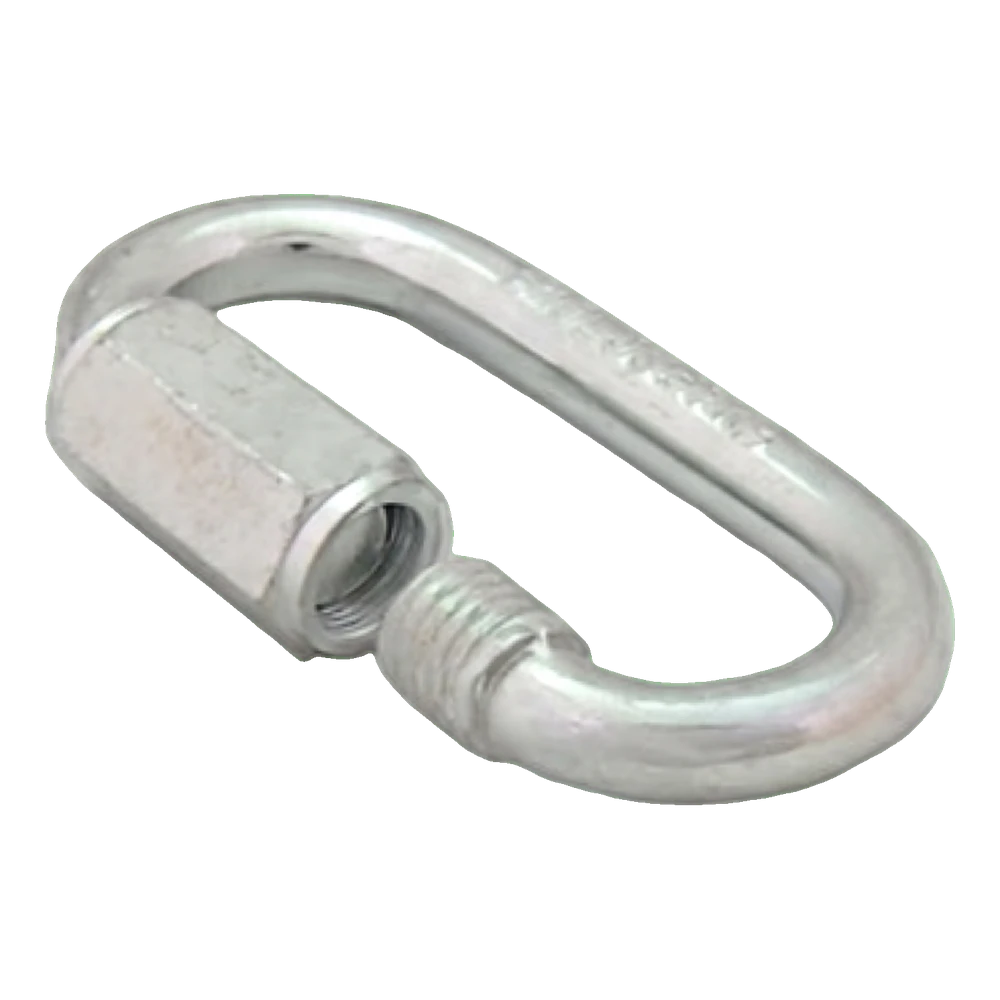

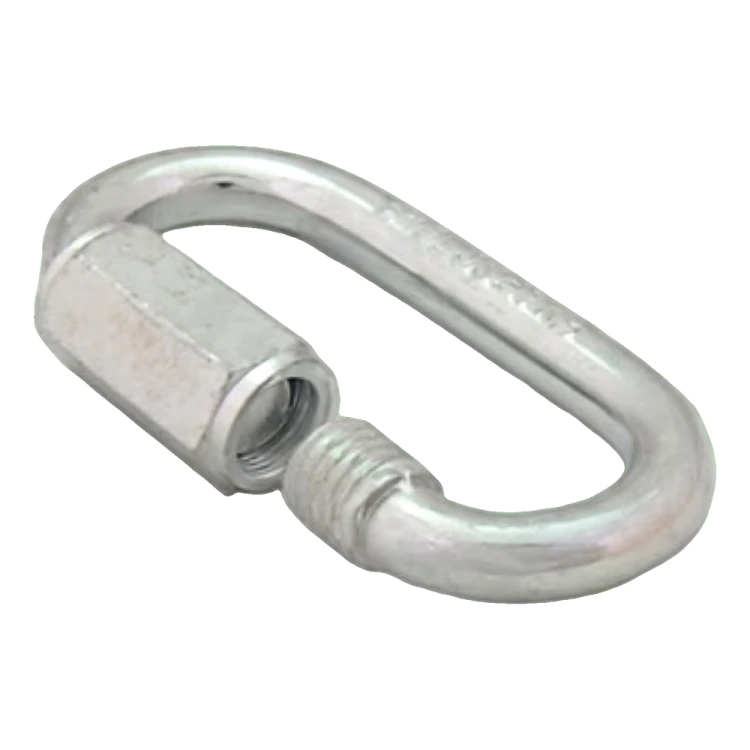

OGZ 3.5 mm quick link with threaded closure, galvanised, made of C15 steel. Dimensions: length 36 mm, width 18 mm, opening 13 mm. Rated load 60 kg, breaking load 240 kg. Weight 0.008 kg. For connecting chains and steel wire ropes.
Product code: 002-538
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Quick link
- Diameter 3.5
- Max. load capacity [kg] 60
Description
Quick links with threaded closure 3.5 galvanised
The galvanised OGZ 3.5 mm quick link is a compact connecting component designed for quickly and securely joining chains, steel wire ropes and other fittings. The design with a threaded closure allows the link to be opened and closed repeatedly without specialist tools, which significantly speeds up assembly work on the building site and in the workshop. The link is made of C15 steel with a galvanised coating, which provides corrosion protection in typical indoor and outdoor conditions. The fourfold safety factor (the ratio of breaking load to rated load) guarantees an adequate strength reserve in the installer's everyday work.
Features and benefits of the OGZ 3.5 quick link
- The threaded closure allows the link to be opened and closed repeatedly without damaging the component
- The galvanised coating protects against corrosion and extends service life in outdoor conditions
- Compact dimensions allow use in limited installation space
- High dimensional repeatability ensures a fit with standard chain fittings
- Minimal dead weight does not add extra load to slings and ropes
