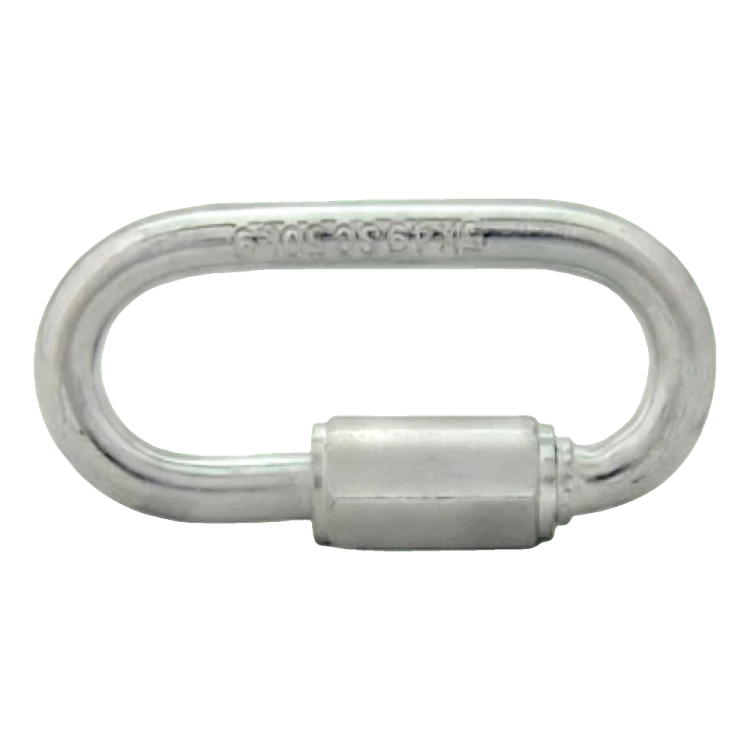

Quick link (quick connector) galvanised 10 mm – working load limit 500 kg
Leave feedback on the product

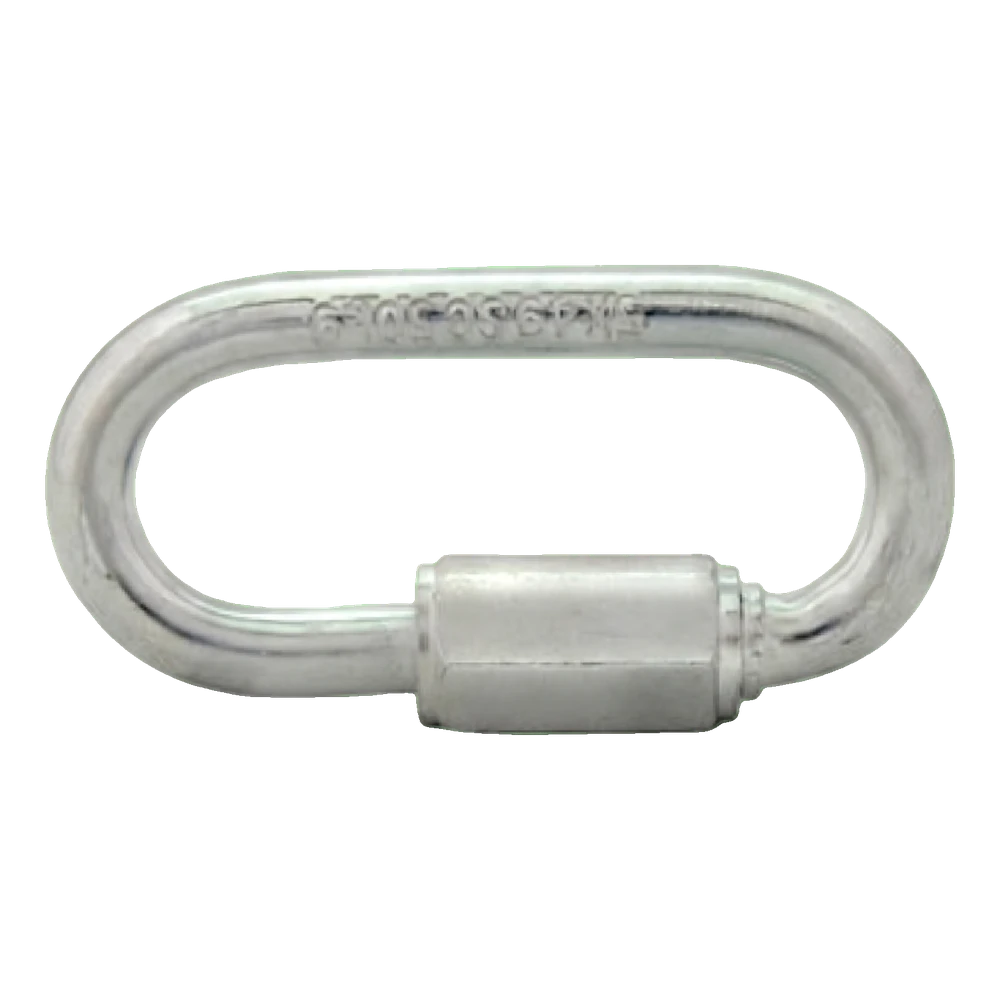

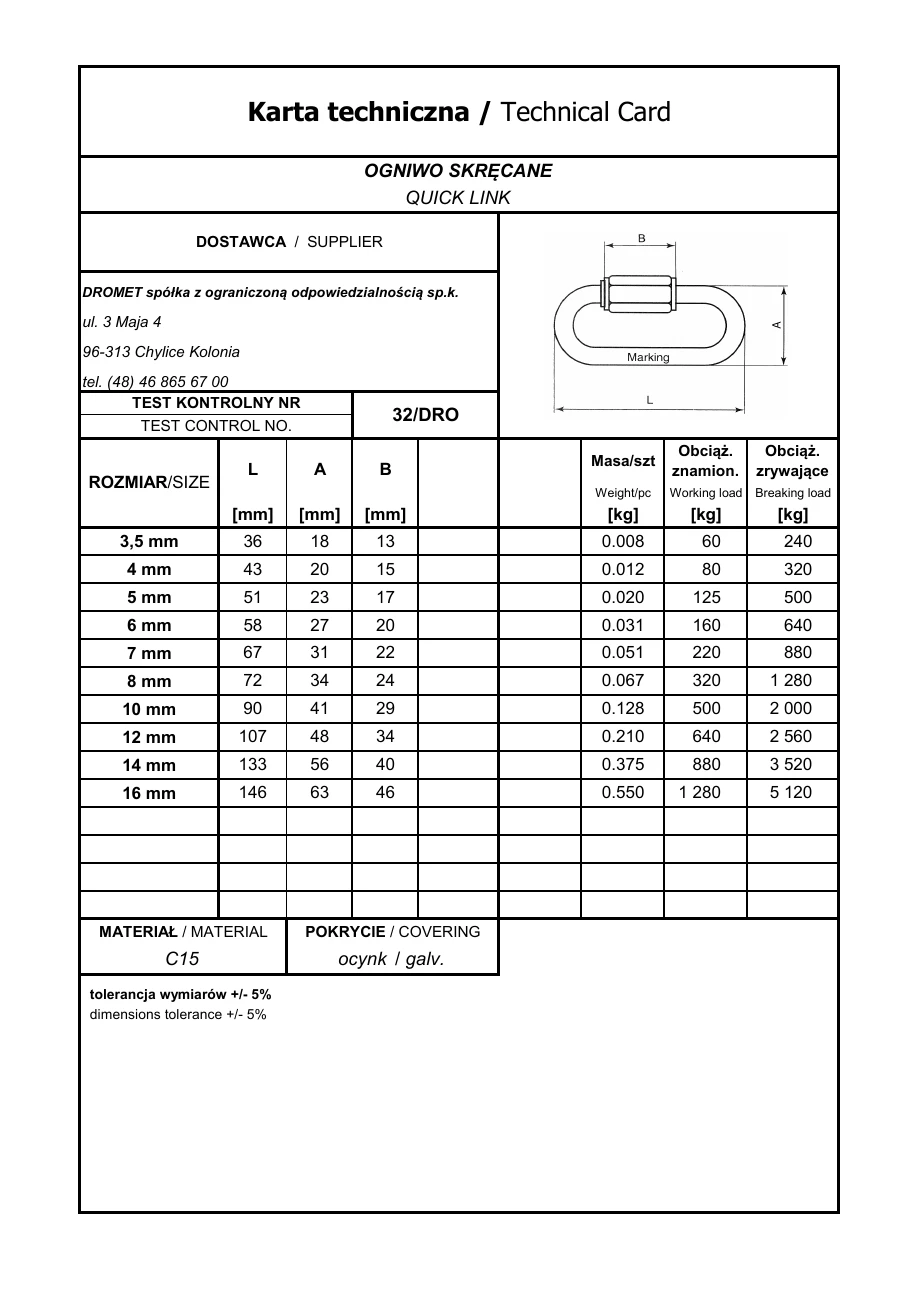

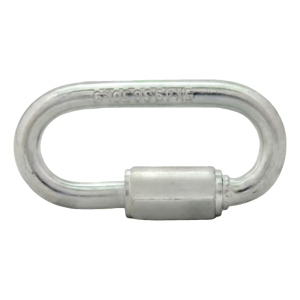

OGZ 10 quick link made of C15 steel, galvanised, with threaded closure. Diameter 10 mm, length 90 mm, width 41 mm, internal width 29 mm. Rated load 500 kg, breaking load 2000 kg. Weight 0.128 kg.
Product code: 002-543
Product features
[PIM] osprzet-do-lin-i-lancuchow #1023
- Fitting type Quick link
- Diameter 10
- Max. load capacity [kg] 500
Description
Quick links with threaded closure 10 galvanised

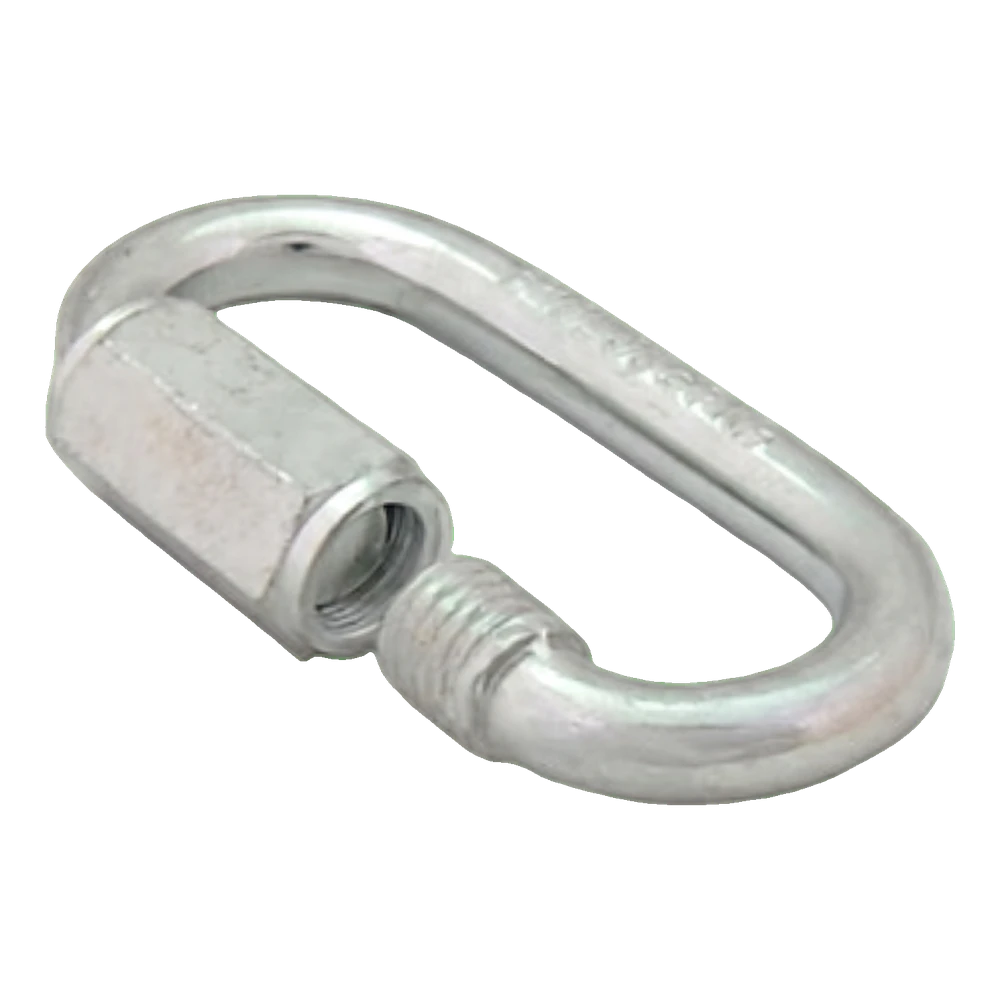

The galvanised OGZ 10 quick link from the manufacturer is a reliable connecting element designed for use with ropes and chains. The design with a screw-down threaded closure allows the link to be opened and closed repeatedly without additional tools, which significantly speeds up installation and servicing work. The link is made of C15 steel and finished with a galvanised coating, which protects it against corrosion even in demanding weather conditions. A breaking load that is four times the rated load provides an adequate safety margin in typical installation and industrial applications.
Versatile use and easy installation

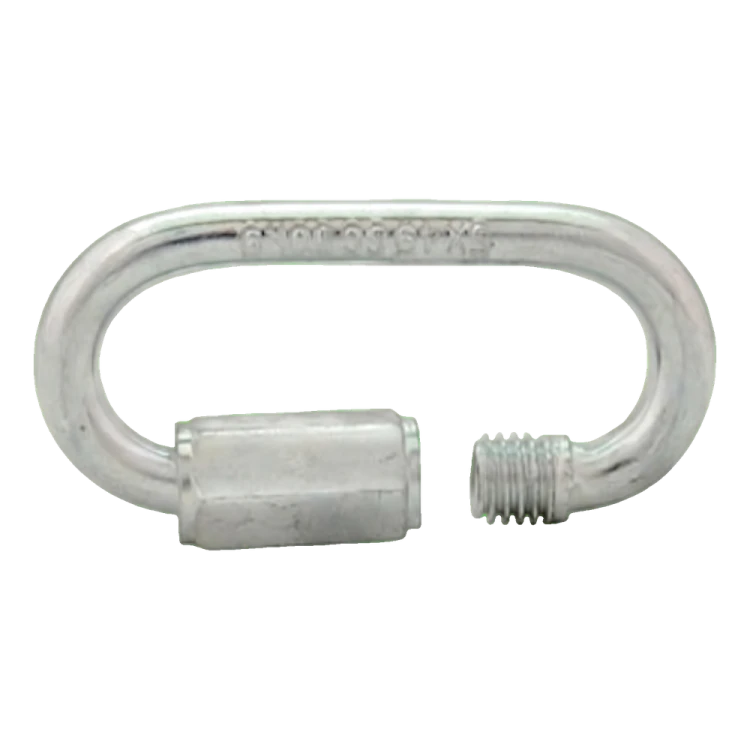

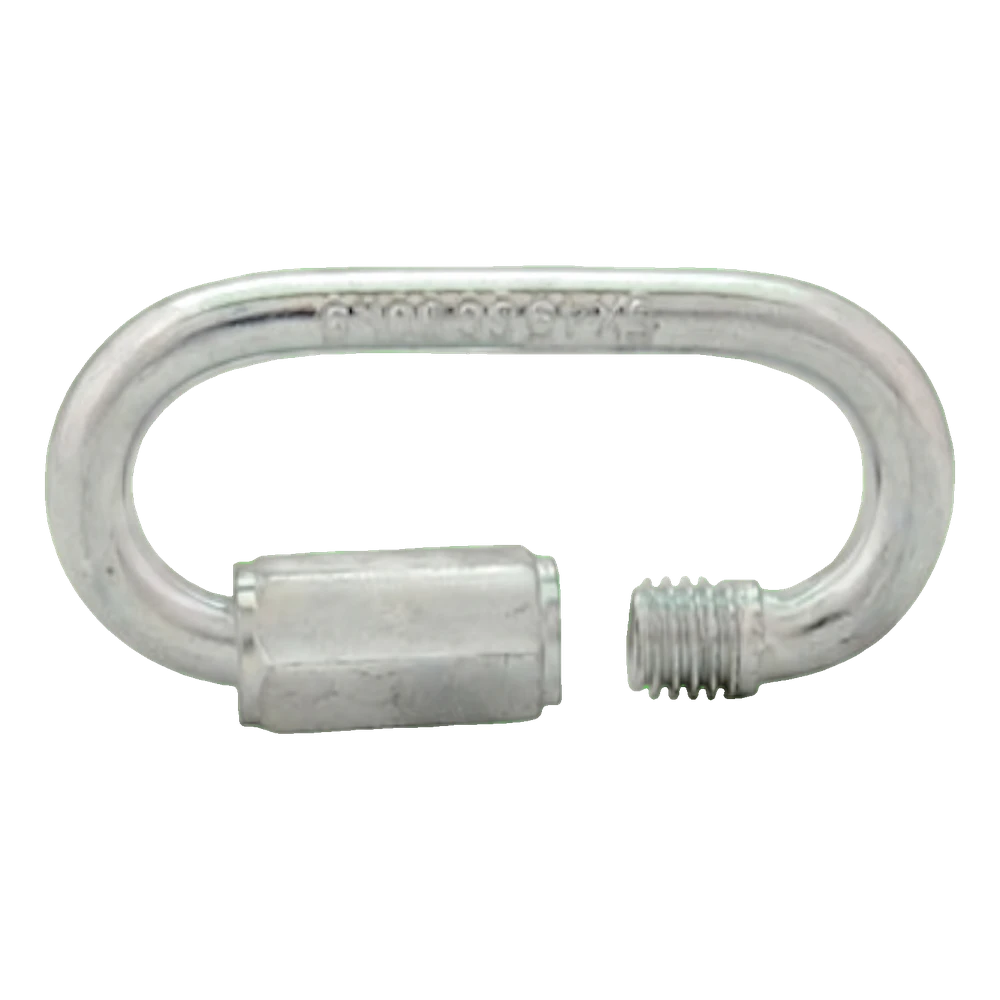

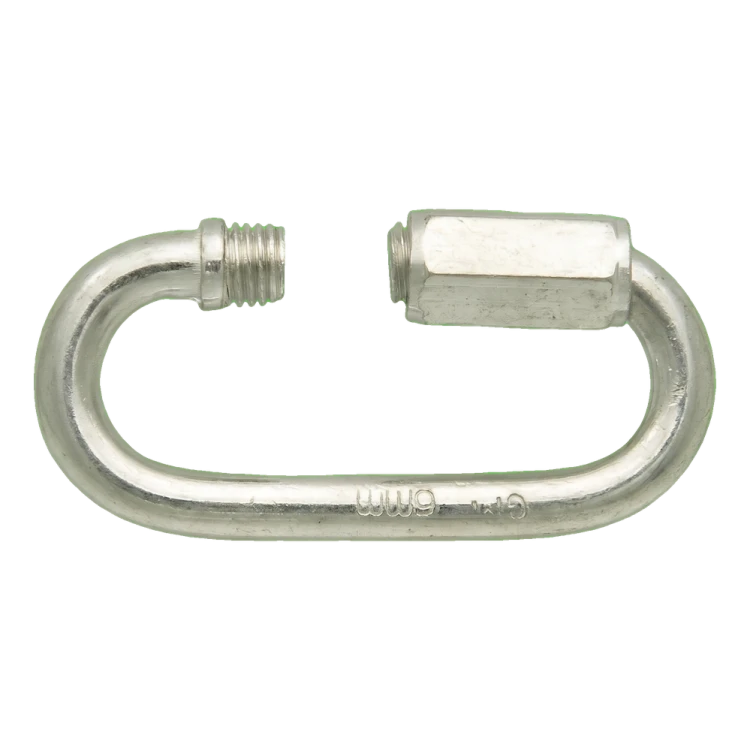

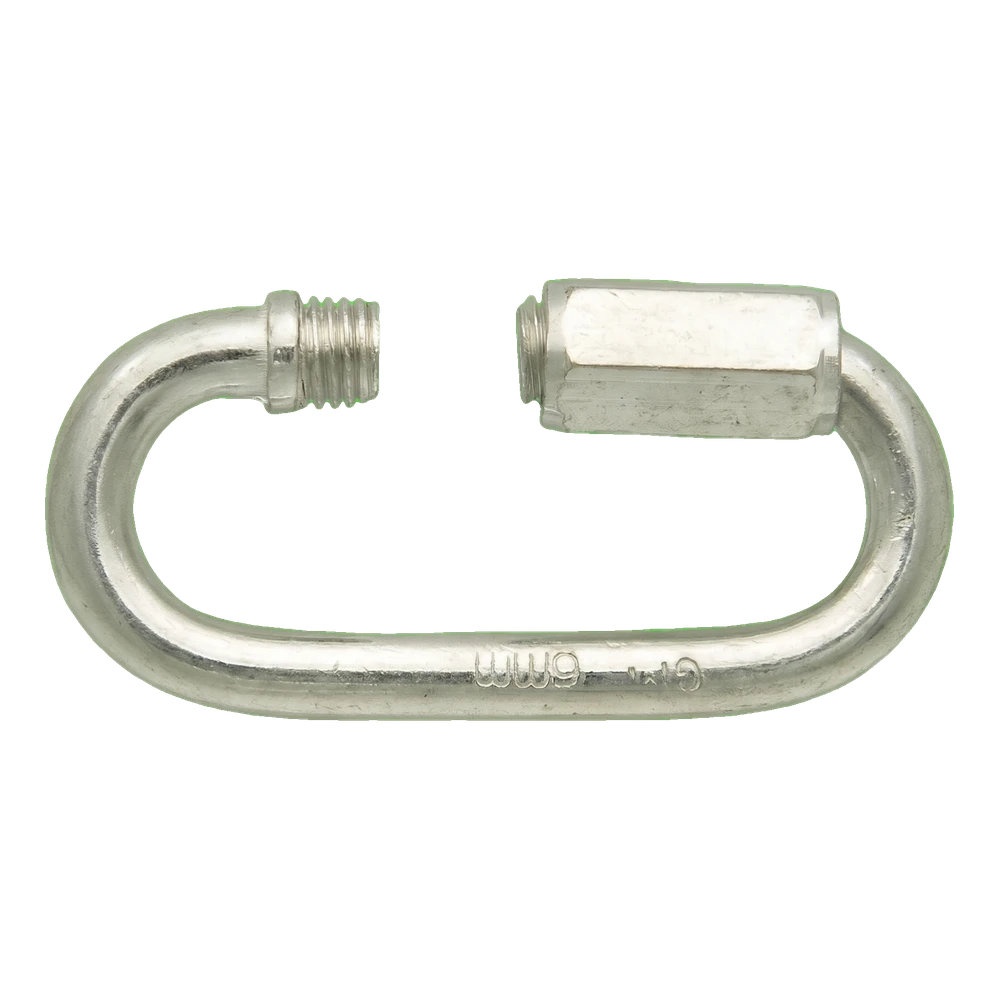

- Threaded closure opened and closed by hand — repeated use without permanent deformation of the component
- Galvanised surface provides lasting corrosion protection outdoors and in damp environments
- Works well as a connector in suspension systems, steel wire rope fixings, guy lines and chain slings
- Compact form makes installation easier even in a restricted working space
- Sold individually, so you can order exactly as many links as your project requires
