"Pressure test plug 3/4\" blue"
Description

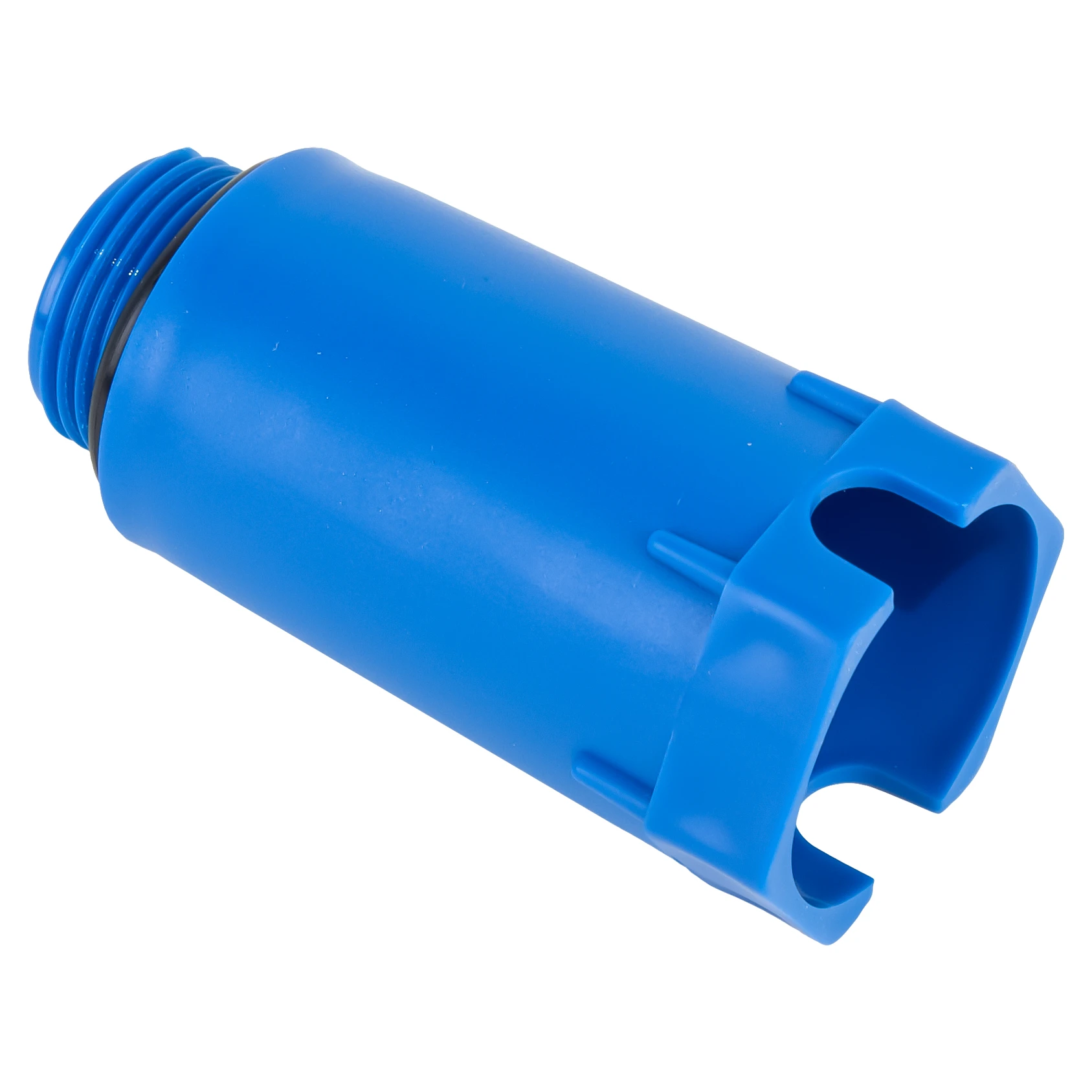

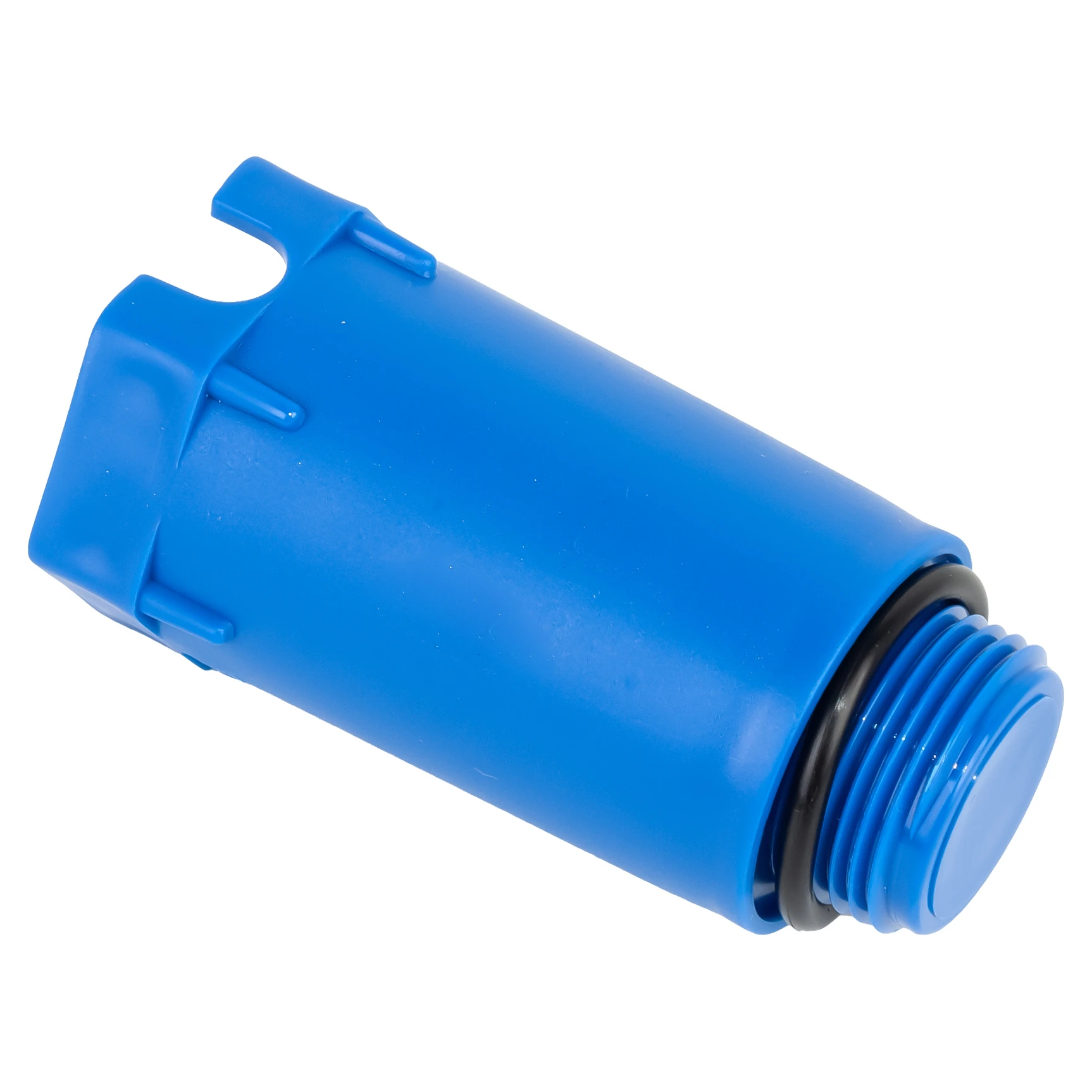

Pressure Test Plug 3/4" Blue
Pressure Test Plug 3/4" Blue is a tried-and-tested solution for installation companies carrying out pressure tests on water and central heating systems. By choosing this product, you gain a tool that will serve you across many jobs.
The plug is designed for blanking off pipes and fittings during pressure tests carried out using water or compressed air. The blue colour allows cold water connection points to be intuitively marked throughout the installation, making it easier to identify outlets at the construction stage.
The G 3/4" thread with an o-ring seal ensures a secure connection — once tightened, the plug maintains a leak-free seal at pressures exceeding those used in standard pressure tests. This means it replaces single-use press-fit connectors that generate unnecessary costs when testing incomplete installations.
Where does it excel?
- Pressure testing of water and central heating systems – blanking open pipe ends prior to pressure testing
- Underfloor heating installations – securing circuits before concrete screed is poured
- Wall penetrations – protecting pipes from construction debris during finishing works
- Testing in sub-zero temperatures – enables pressure tests using compressed air in winter conditions
- Point identification – the blue colour makes it easy to identify cold water connections
Technical Specifications
- Connection thread: G 3/4" B
- Plug material: PP (polypropylene)
- Seal material: NBR (o-ring)
- Colour: blue (cold water)
- Reusable: yes
Reusability is the key advantage — a single plug can be used across multiple successive projects, significantly reducing the cost of pressure testing per installation.

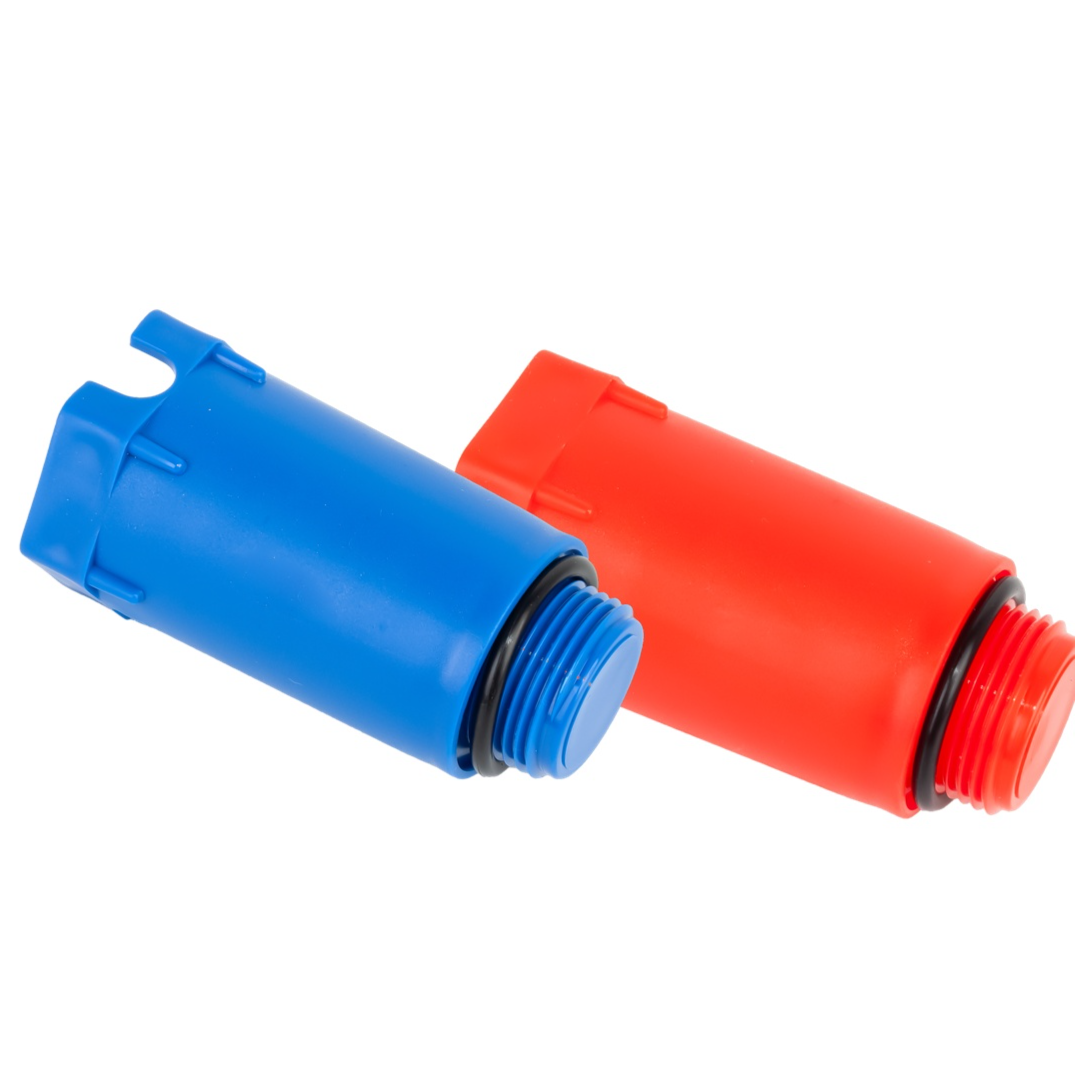

The blue version is intended for marking cold water connections — a red version for hot water is also available, allowing clear colour-coding and organisation throughout the entire installation.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Product Type | Pressure Test Plugs |
| Size | 3/4" |
| Colour | Blue |
