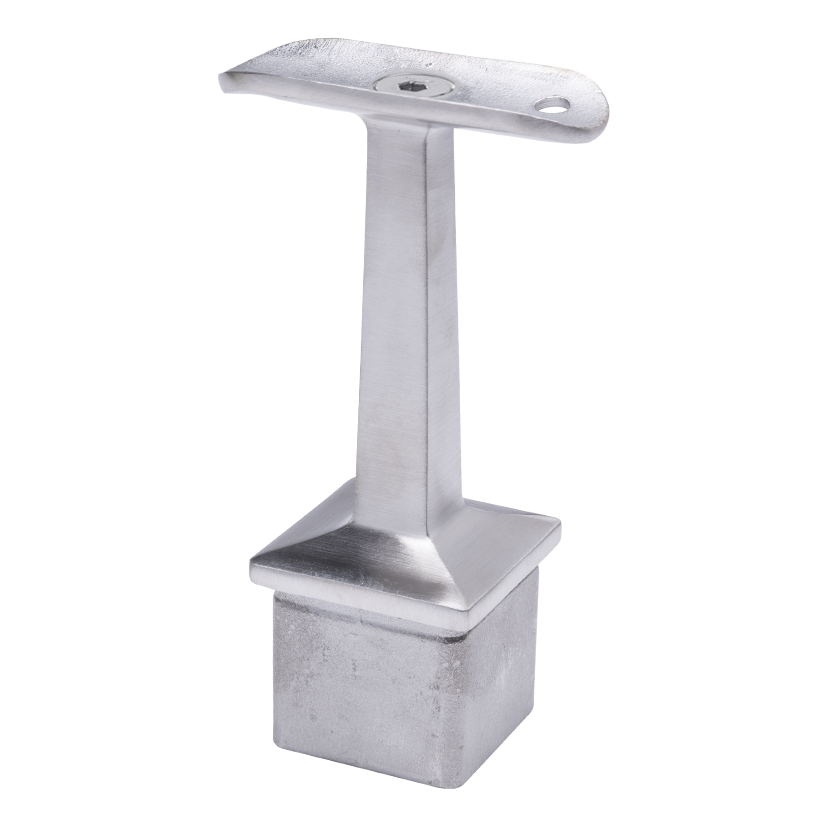

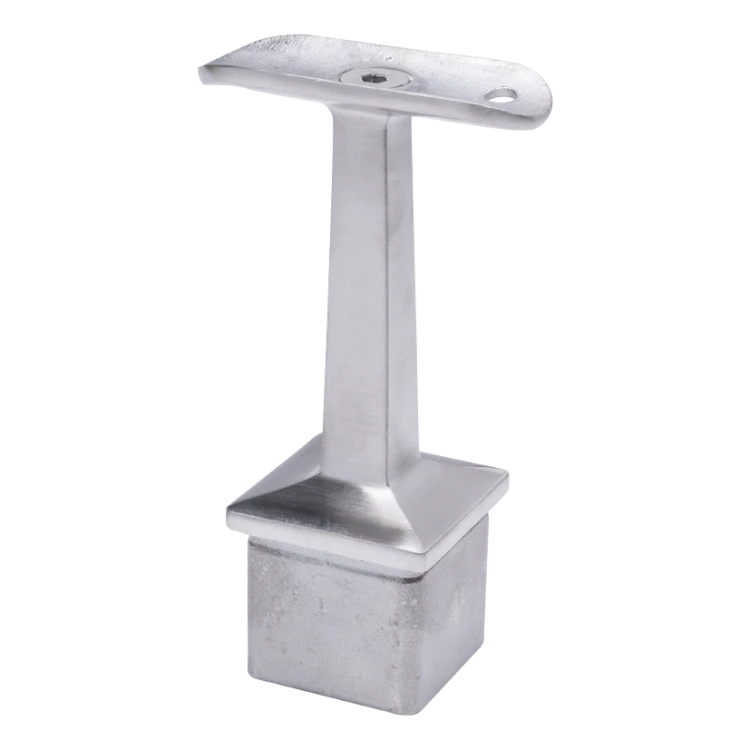

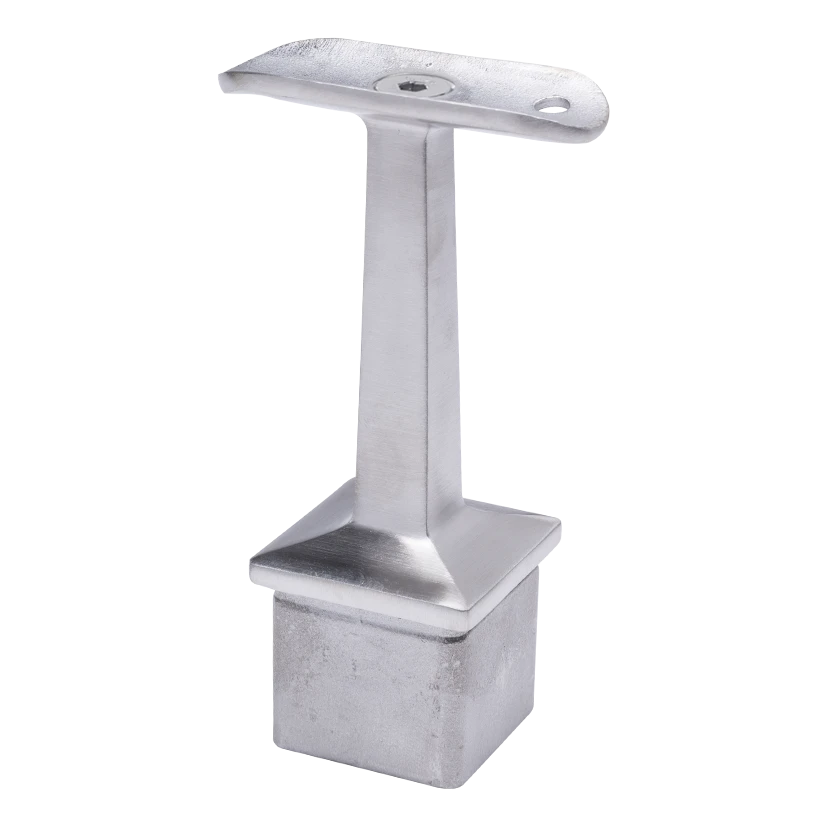

Postal – handrail support for balustrade Ø42.4 mm on 40x40x2 mm post, AISI 304 stainless steel satin
Description
Postal – handrail support for balustrade Ø42.4 mm on 40x40x2 mm post, AISI 304 stainless steel satin
Postal handrail support is a robust connector designed for mounting handrails with diameter Ø42.4 mm onto square posts of 40x40 mm system. The element is made from stainless steel AISI 304 with satin finish, combining aesthetic appearance with weather-resistant durability — an ideal choice for both internal and external balustrades.
The support is designed for bonding into the interior of the post using anaerobic adhesive. The adhesive bonds upon contact with metal and hardens when air supply is cut off, ensuring a permanent and invisible connection without the need for welding. The upper plate (saddle) with M6 screw hole enables secure handrail fixing.

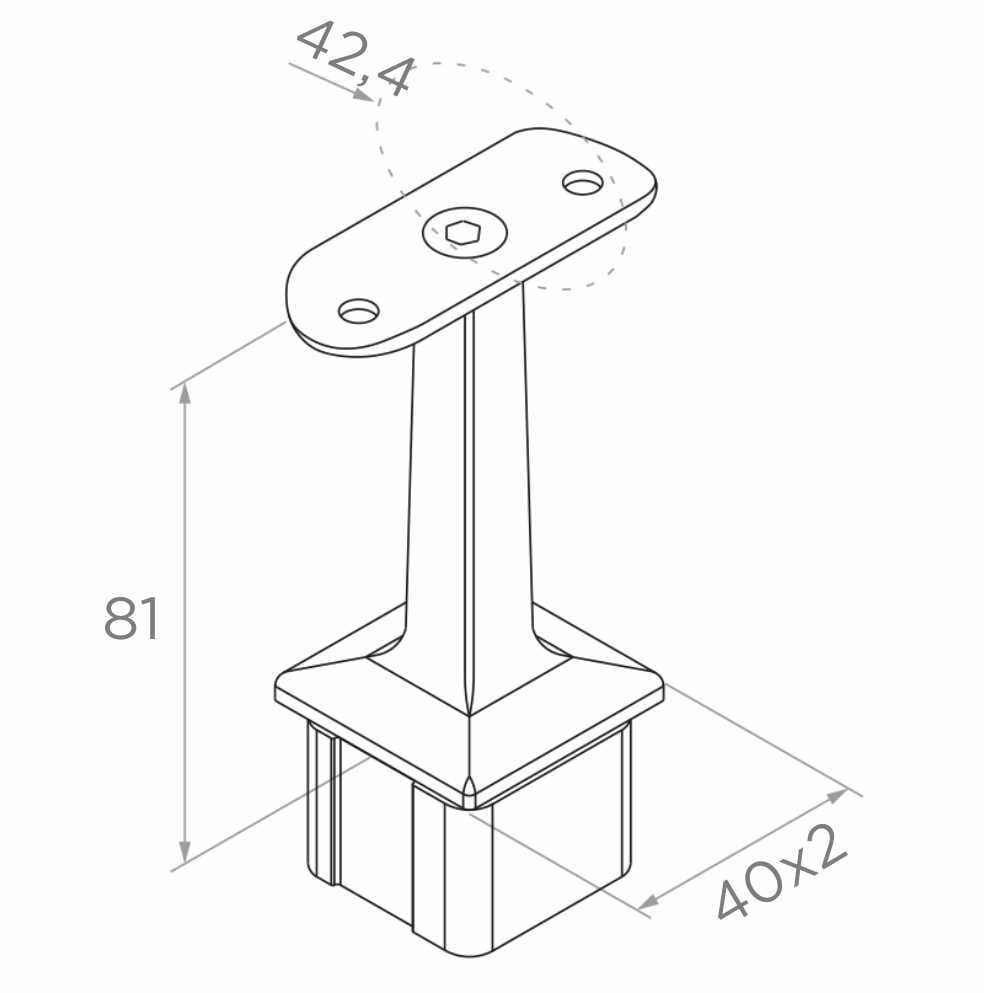

Dimensions and technical data
- Handrail diameter: Ø42.4 mm
- Post profile: 40×40×2 mm
- Bonded pin: 14×14 mm
- Total height (H): 81 mm
- Handrail fixing: plate (saddle) with M6 screw
- Material: stainless steel AISI 304
- Surface finish: satin
- Installation method: bonded (anaerobic adhesive)
- Balustrade system: 40×40 mm
- Weight: 0.24 kg
- EAN: 5901289672023
Installation and application
The support is intended for use in balustrade systems based on square posts 40×40 mm with tubular handrail Ø42.4 mm. The pin with cross-section 14×14 mm is inserted into the interior of the post and secured with anaerobic adhesive, which eliminates the need for welding on site and significantly speeds up installation. The solution is particularly effective for balcony, terrace and stair balustrades, where rigid and aesthetic construction is required.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
