Post spike type L500, silver galvanised
Leave feedback on the product

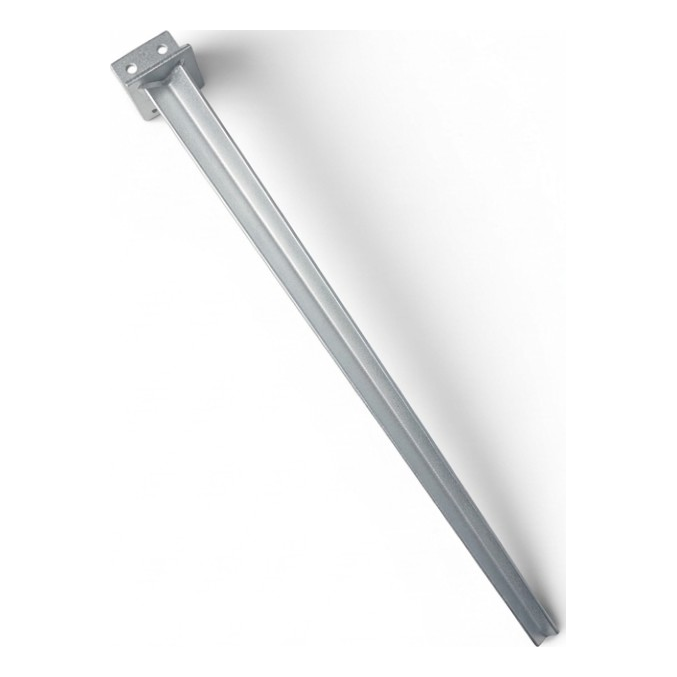

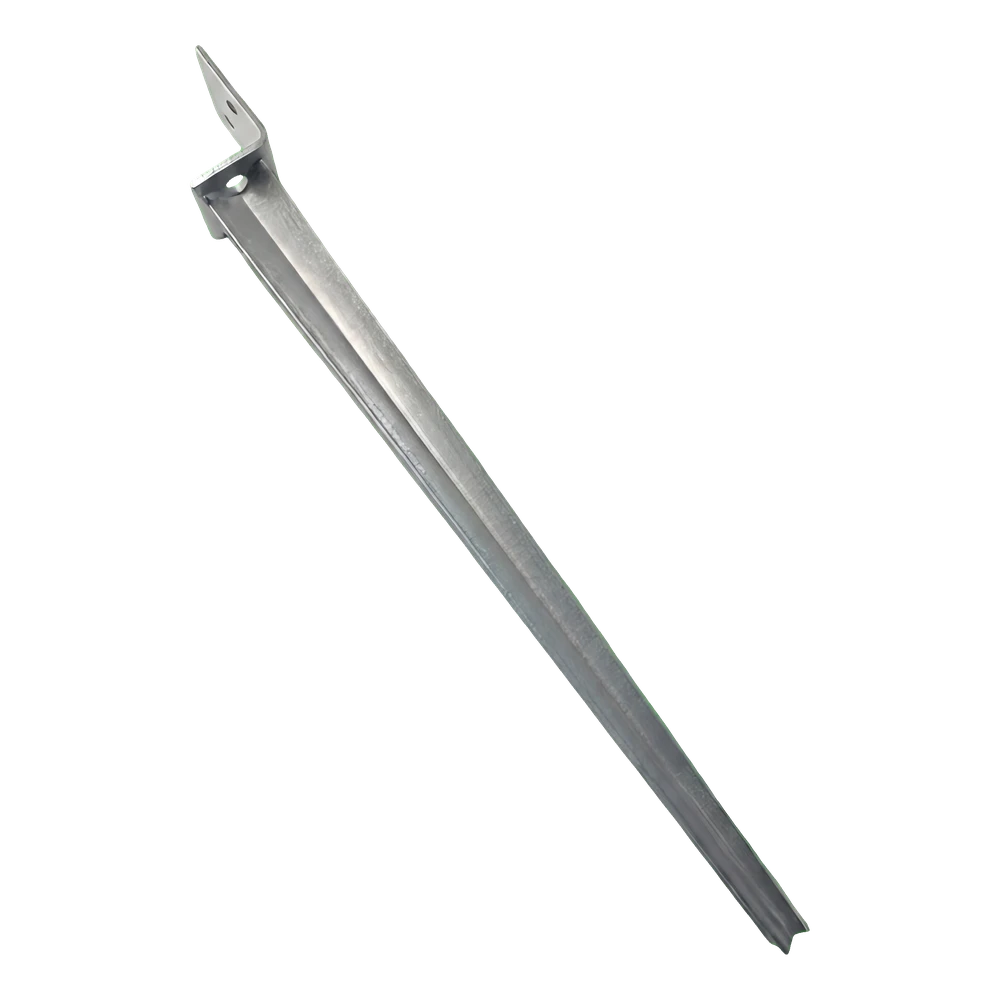

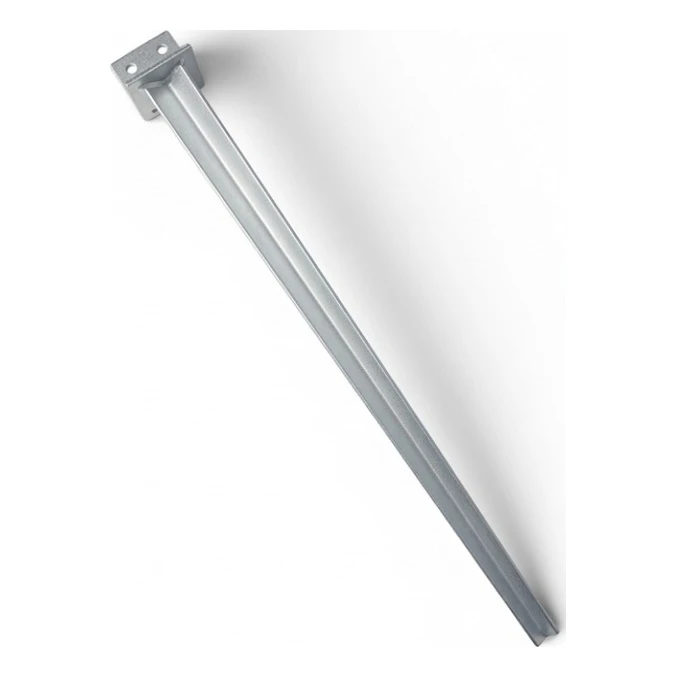

Drive-in post support type L500, steel, silver electro-galvanised. Overall length 565 mm, driven section 500 mm, angle bracket 65 x 50 x 50 mm. Two Ø8.5 mm mounting holes. Weight 0.60 kg. For timber and metal posts.
Product code: 002-500
Description
Drive-in Post Support Type L500, Silver Zinc Plated
The drive-in post support type L500 is a steel ground anchor designed for setting timber and metal posts directly into the ground. The 500 mm driven section provides a stable anchorage, while the mounting angle bracket allows a secure connection to the post using two bolts.

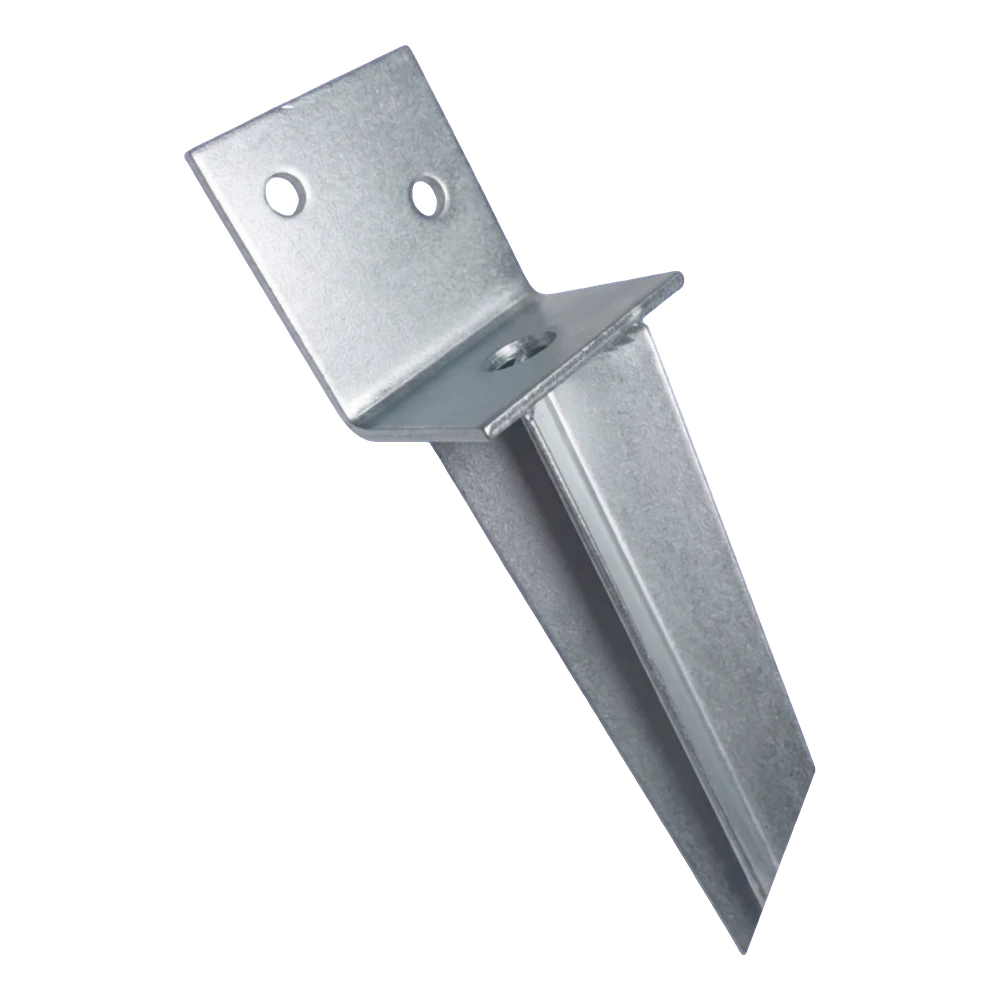

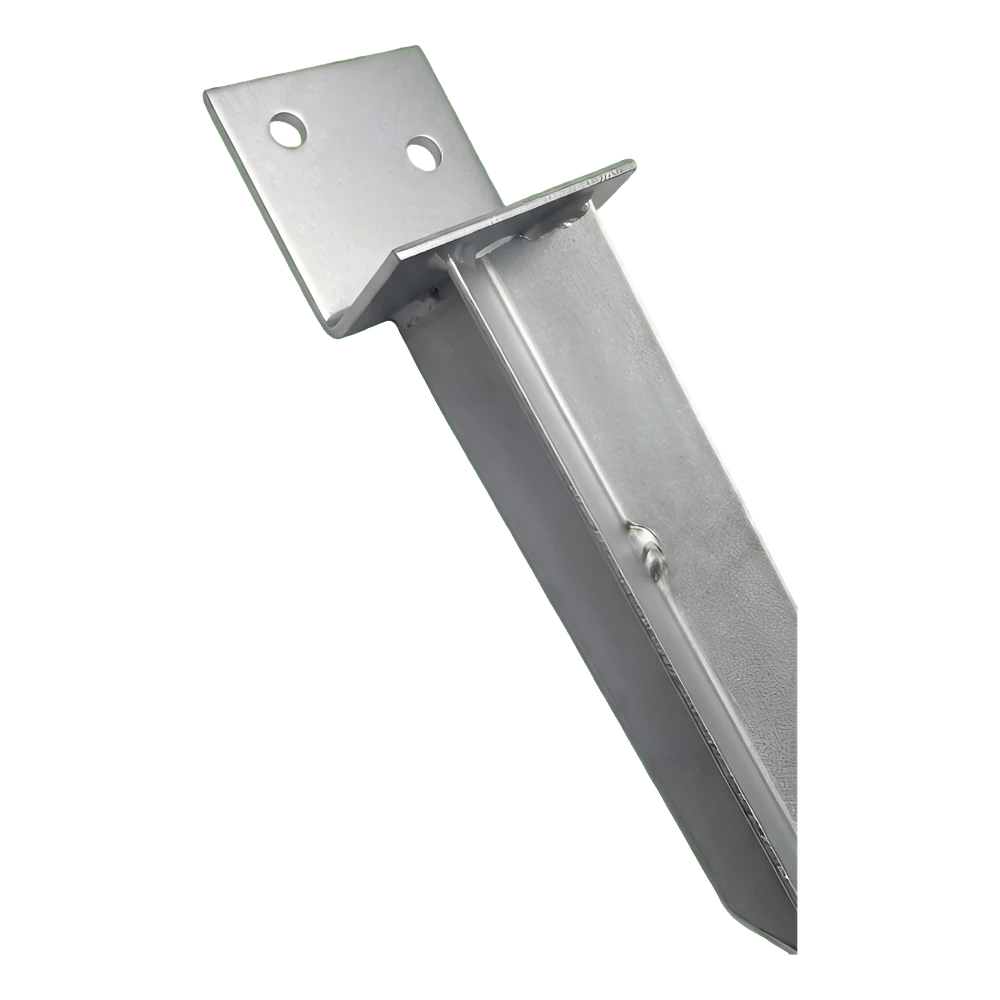

The support consists of a profiled spike driven into the ground and an angle bracket with two mounting holes. The bracket allows fast, repeatable fixing of fence posts, pergola posts or structural posts without the need for concreting.
The support has a silver electro-galvanised finish, which protects the steel against corrosion in contact with damp soil and ensures durability in outdoor conditions. The profiled cross-section of the spike makes it easier to drive in with a hammer and also increases the rigidity of the whole component. The product is sold individually — 1 piece per pack — so you can match the quantity precisely to the scope of work on site.
Features and benefits
- Installation without concreting — simply drive the spike into the ground with a hammer
- Pre-drilled holes in the angle bracket — instant bolted connection to the post
- Profiled spike — easier to drive in and provides rigidity in the ground
- Electro-galvanised coating — corrosion protection for years of service
- Compact size and low weight — convenient transport and storage
- Versatile applications — fences, pergolas, garden structures
- Single-unit sales — order exactly as many pieces as you need
Applications
- Fences — installing timber and metal posts without groundwork
- Pergolas and gazebos — fast anchoring of garden structures in the ground
- Photovoltaic structures — setting support posts in areas with soft ground
- Information boards and signs — stable point foundation without excavation
- Temporary supports — quick installation and removal without permanent ground disturbance
The L500 drive-in support is a practical alternative to traditional post concreting. It eliminates the need for digging holes and preparing mortar, which significantly speeds up installation work on site. Simply drive the spike into the ground with a hammer, then fix the post to the angle bracket with bolts through the pre-drilled holes.
