Pipe unroller with bag - for underfloor heating installation
product unavailable
add to wish list
0
Description

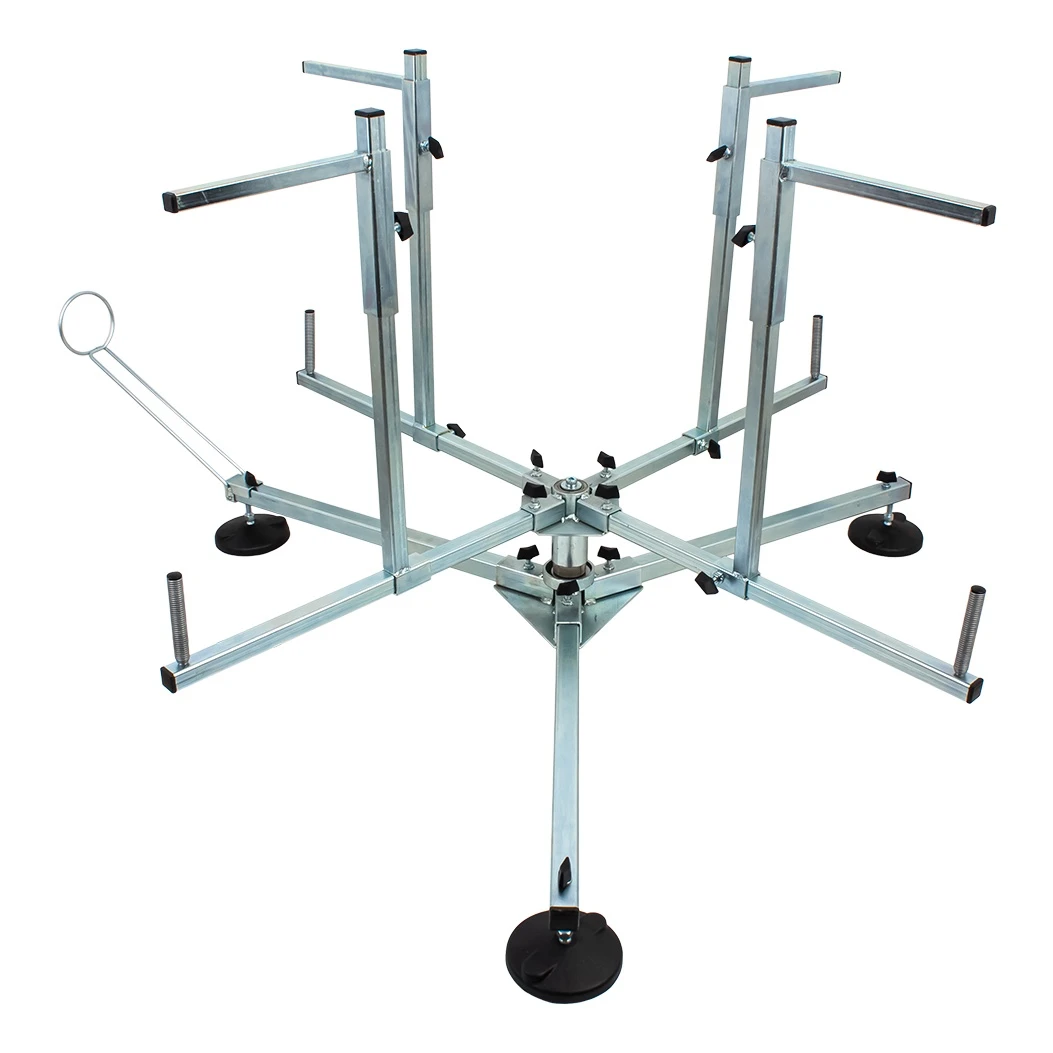

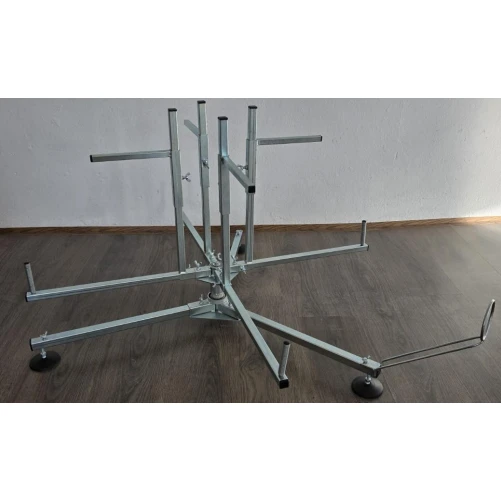

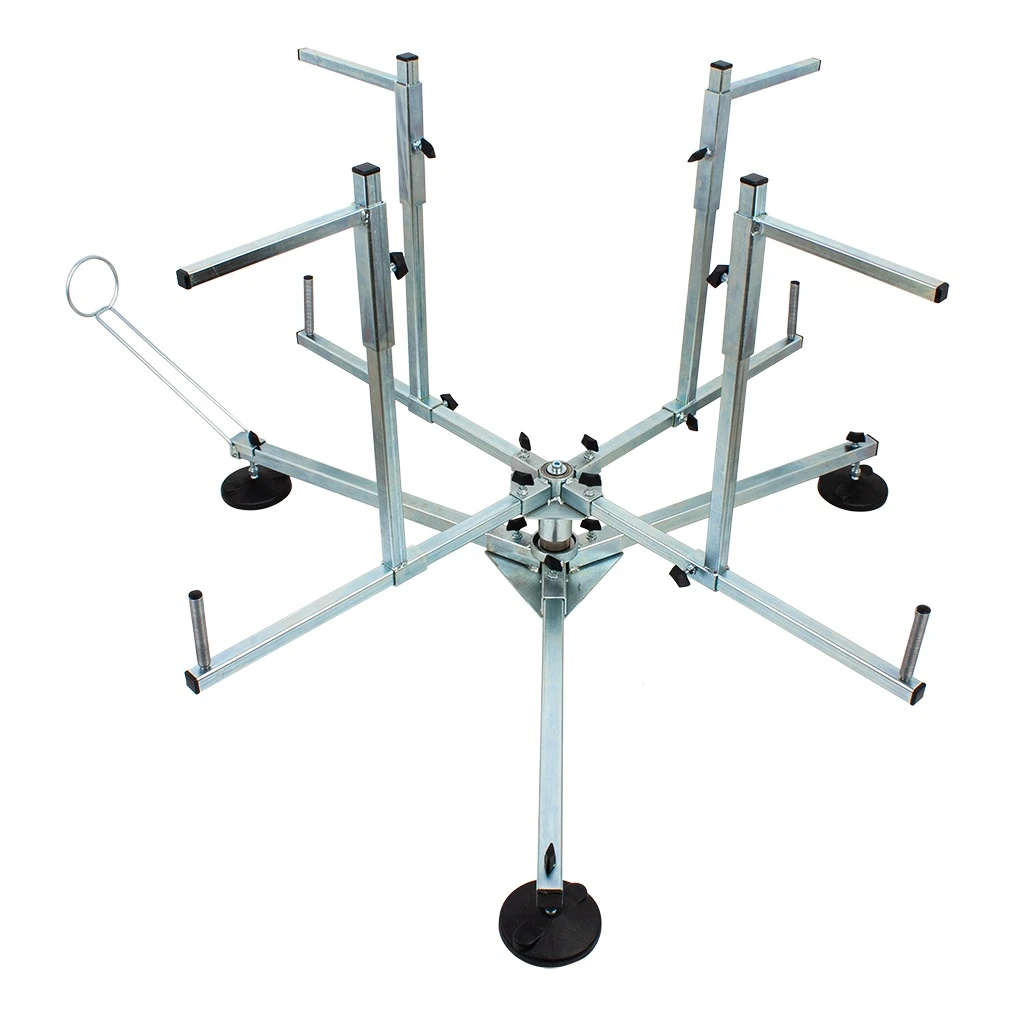

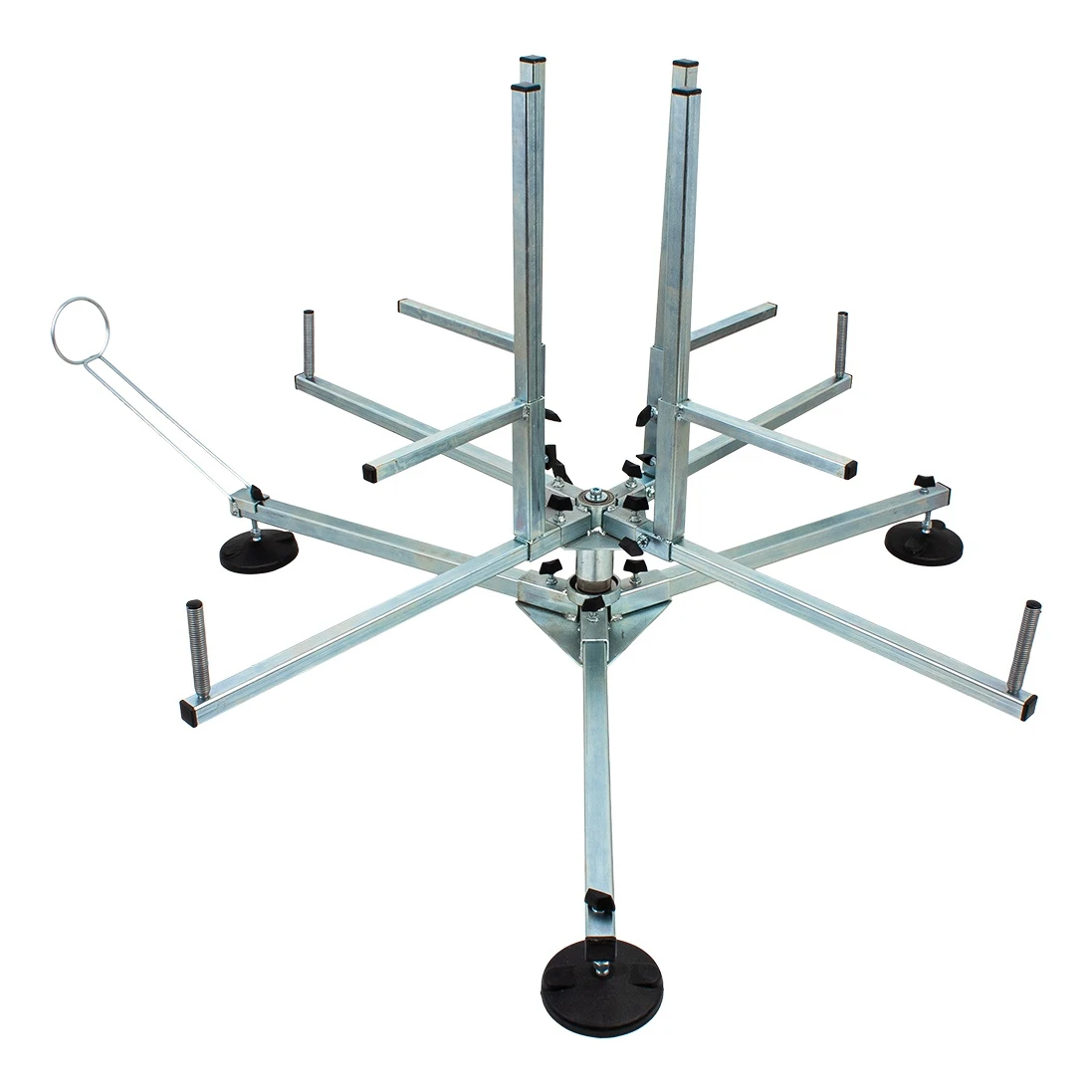

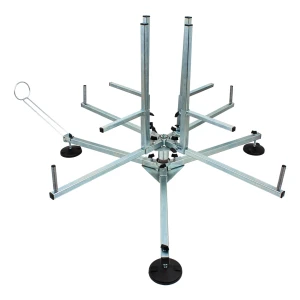

Pipe Uncoiler with Bag – Professional Tool for Underfloor Heating Installation
A pipe uncoiler is an essential tool for any installation team working with underfloor heating systems. It allows for smooth and controlled uncoiling of pipe coils, significantly speeding up the work and eliminating the problem of tangled material.
The structure is made from high-quality galvanised steel profiles, ensuring long-lasting durability even under intensive use on construction sites. The stable, star-shaped base with adjustable feet provides a secure footing on any surface.
Why choose this uncoiler? It significantly improves the efficiency and comfort of the installer's work. Instead of manually uncoiling a pipe coil – which is time-consuming and tiring – simply place the coil on the uncoiler and guide the pipe through the dedicated guide channel. Assembly and disassembly are quick and require no tools. The set also includes a practical carry bag, making it easy to transport and store the uncoiler.
Key Construction Features
- Galvanised steel profiles: high resistance to corrosion and mechanical damage
- Pipe guide channel: enables stable, even uncoiling without snagging
- Adjustable arms: adaptable to different coil sizes

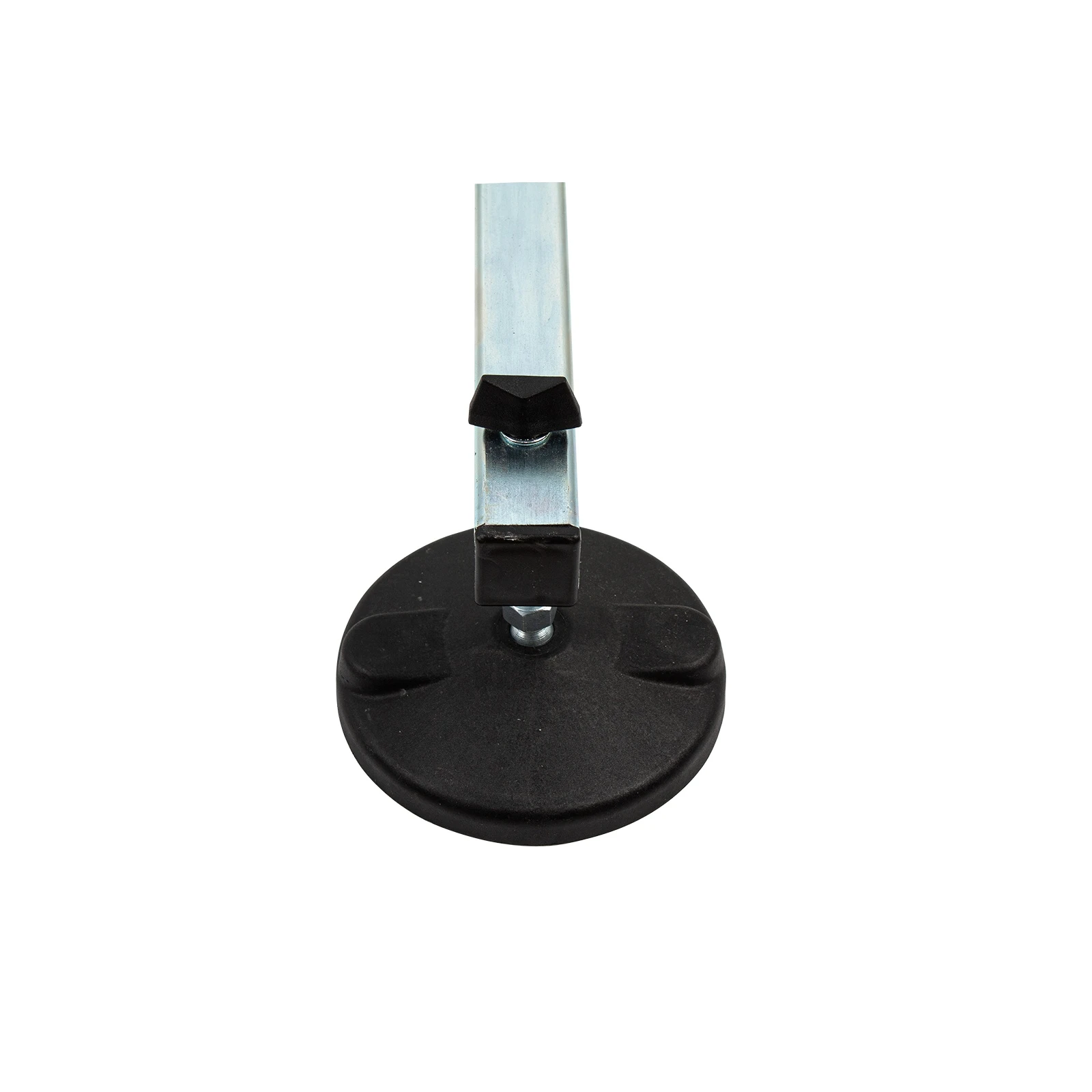

- Stable base: three legs with adjustable rubber feet – providing greater stability on uneven surfaces than typical four-legged designs

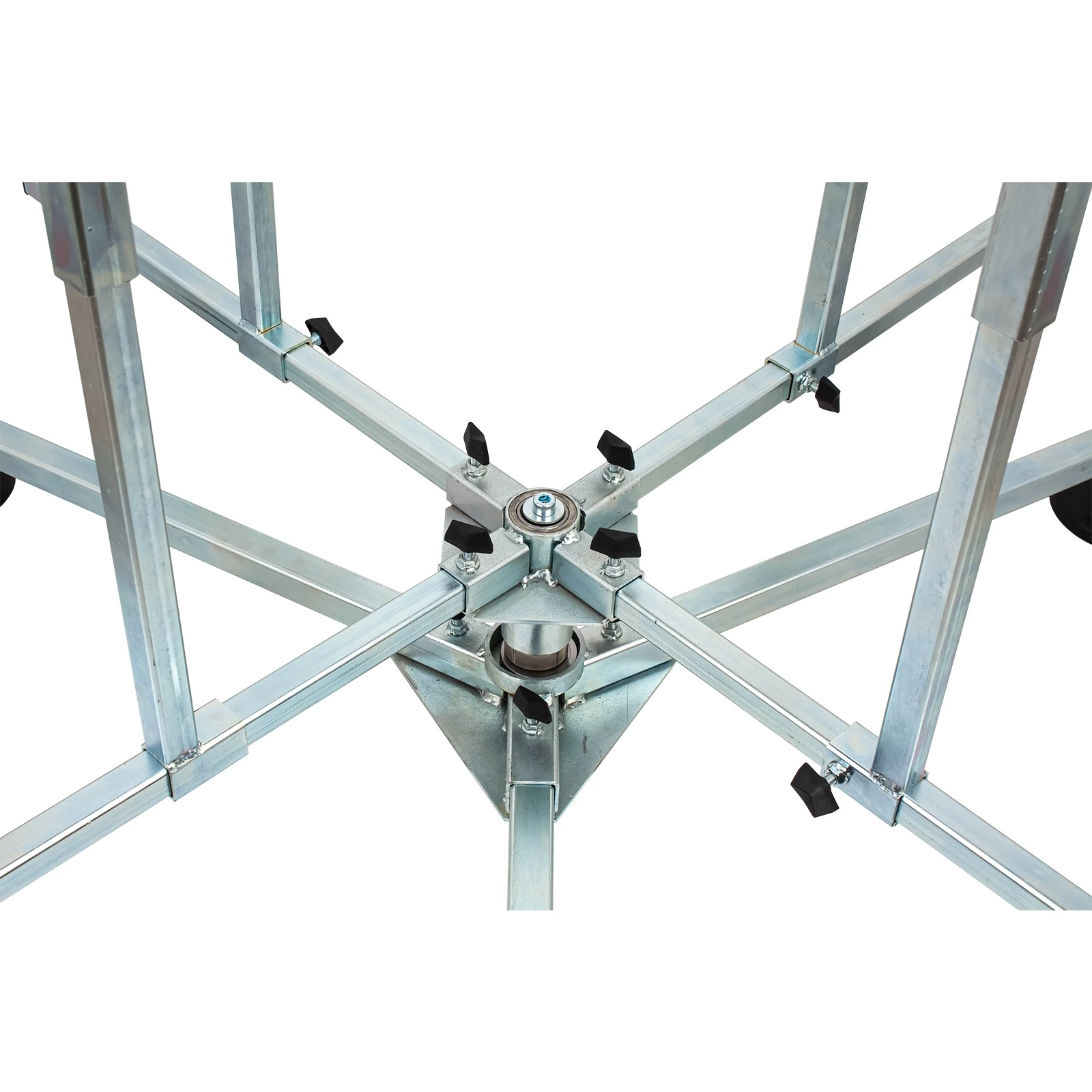

- Bearing-mounted rotation mechanism: smooth, effortless rotation of the coil
Technical Specifications
- Minimum internal coil diameter: 240 mm
- Maximum external coil diameter: 980 mm
- Maximum coil height: 550 mm
- Maximum pipe length: 600 m
- Colour: silver (galvanised steel)
The uncoiler is equally well suited to smaller projects in residential properties and large-scale installations in commercial buildings. Its universal design is compatible with pipe coils from various manufacturers and in the range of diameters used in underfloor heating systems.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Product Type | Pipe unwinders |
