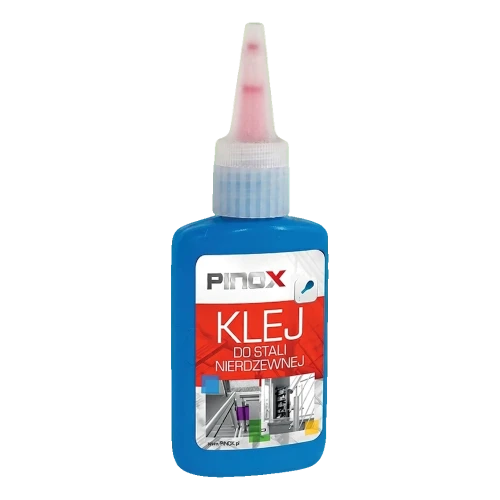

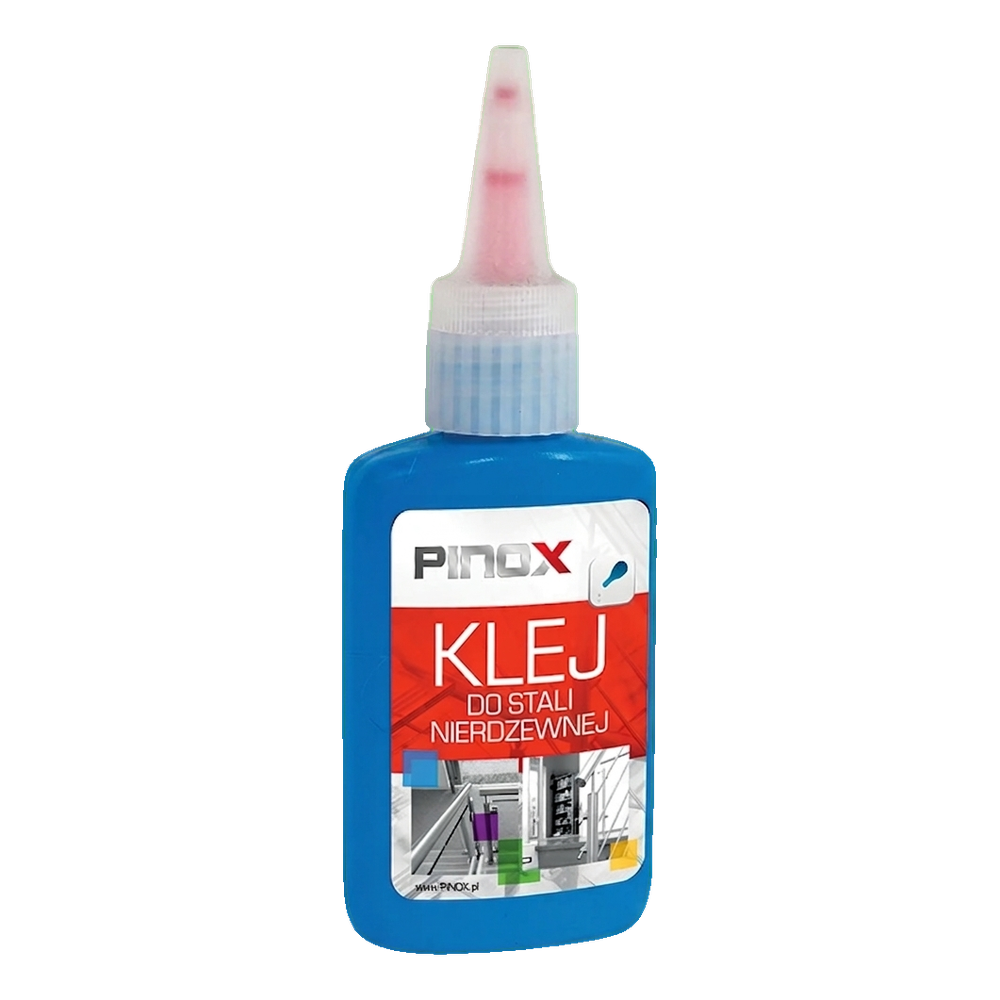

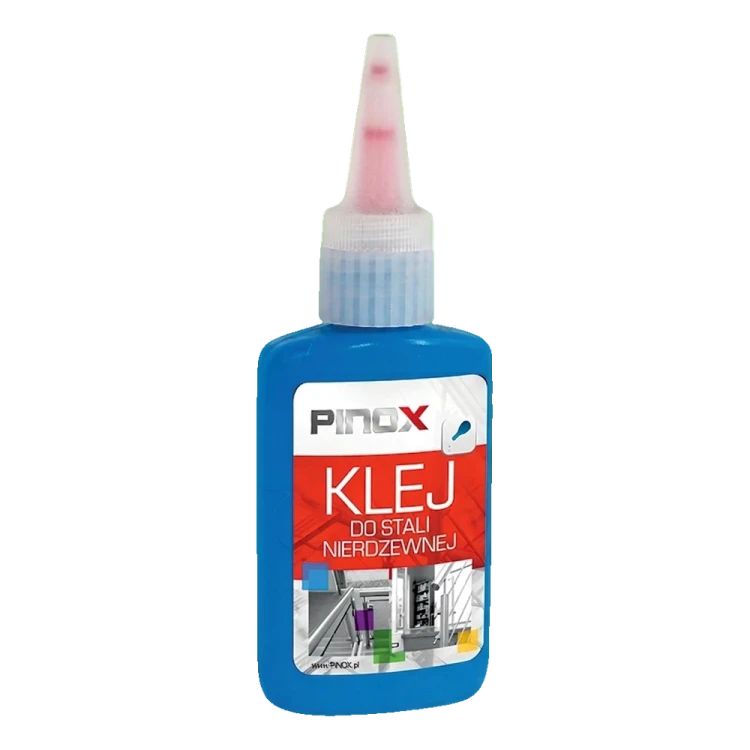

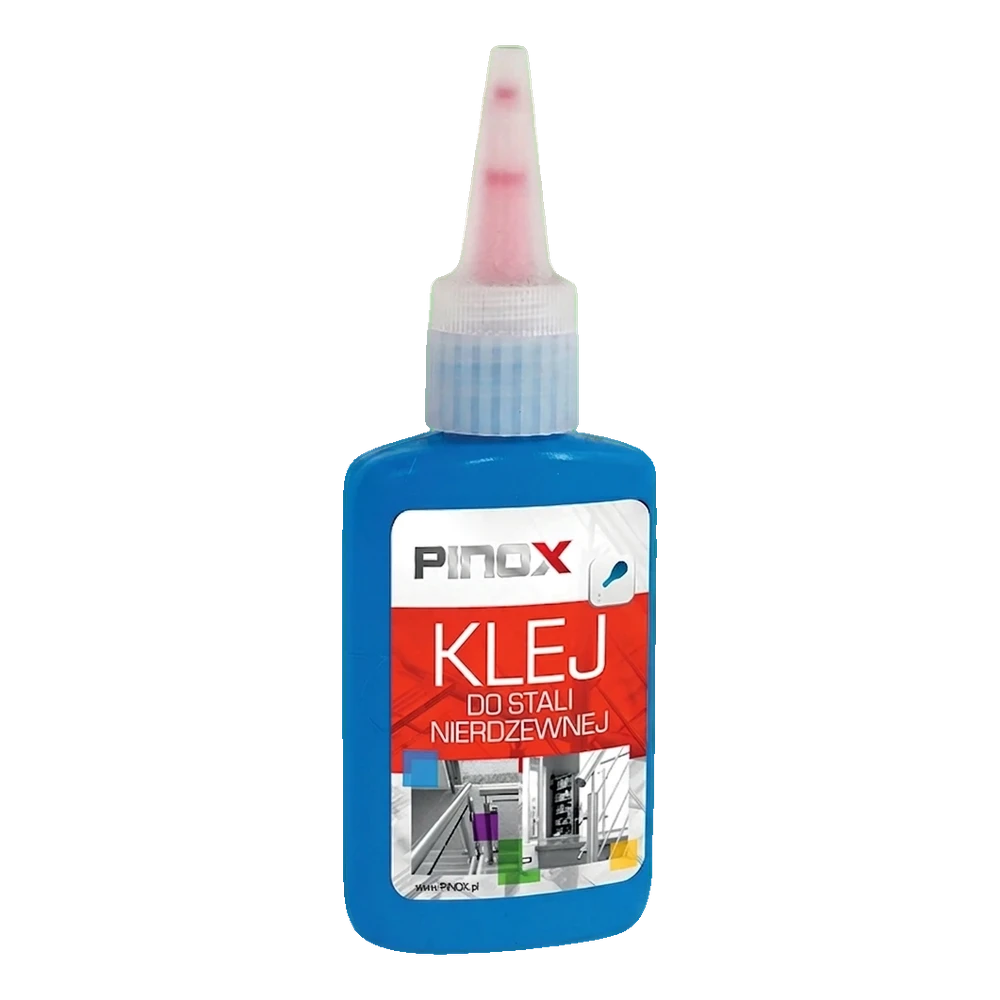

Pinox – anaerobic adhesive for stainless steel shaft-hub 5243, 50 g
Leave feedback on the product
Pinox 5243 anaerobic adhesive for stainless steel, shaft-hub, 50 g. Dimethacrylate ester, red thixotropic liquid. Shear strength 23-35 N/mm², breakaway torque 30-42 Nm. Temperature range -55°C to +200°C. Viscosity 2500-3000 mPa·s.
Product code: 000-825
Product features
[PIM] Cat 141 #141
- Material A2 - stainless steel
- Thread type M10
Description
Pinox – anaerobic adhesive for stainless steel shaft-hub 5243, 50 g
Pinox 5243 anaerobic adhesive is a single-component preparation designed for permanent bonding of stainless steel elements in shaft-hub connections. Thanks to its formula based on dimethacrylate ester, it cures in contact with metal and in an oxygen-free environment, creating a reliable, mechanically durable bond. The product performs excellently in mounting balustrades, handrails, stainless steel structures, and wherever precise and permanent fixation of cooperating parts is required.
The adhesive is in the form of a thixotropic liquid with a red colour, which facilitates visual control of application. A special applicator ensures even and precise dosing even in hard-to-reach places. The only required surface preparation is drying and degreasing of the bonded elements.
Key advantages
- Permanent bond – reliable strength preventing loosening of elements over time
- Damage resistance – formula resistant to cracking and crushing, which translates to long-lasting effectiveness
- Wide temperature range – maintains bonding properties from -55°C to +200°C
- High shear strength – 23–35 N/mm² and breakaway torque 30–42 Nm
- Fast bonding – bonds on ordinary steel in approx. 10 minutes, functional strength after 12 h, full after 24 h
- Precise application – applicator ensures accurate adhesive dosing
- Single component – requires no mixing, ready for immediate use
- Possibility to use activator to accelerate the bonding process
Technical parameters
- Product type: shaft-hub anaerobic adhesive
- Chemical base: dimethacrylate ester
- Form: thixotropic liquid
- Colour: red
- Strength: high
- Mixing ratio: single component
- Thermal resistance: -55°C / +200°C
- Shear strength: 23–35 N/mm²
- Breakaway torque: 30–42 Nm
- Maximum gap: < 0.20 mm
- Viscosity: 2500–3000 mPa·s
- Density: 1.1 g/ml
- Functional strength: 12 h
- Full strength: 24 h
- Package capacity: 50 g
- Weight: 0.05 kg
- EAN: 5901289674393
Application
Pinox 5243 adhesive is an ideal solution for mounting balustrades and stainless steel structures. It prevents loosening of connections, which is crucial for elements exposed to vibrations and mechanical loads. High thermal resistance allows it to be used in elevated temperature conditions – for example on elements exposed to direct sunlight. Before application, it is sufficient to clean and degrease the bonded surfaces, which allows for efficient assembly without complicated workplace preparation.
