Photovoltaic cable with anti-rodent additive (AR) - 6mm Black
Leave feedback on the product
Single-core solar cable 6 mm² with anti-rodent additive AR in the sheath. Voltage 1.5 kV DC, temperature range -40°C to +90°C, cross-linked halogen-free material. Compliant with EN 50618:2015.
Product code: 000-109
Product features
[PIM] Cat 92 #92
- Application Solar DC
- Cross-section [mm²] 6
- Colour Black
- Conductor Material Copper
- CPR Class D
- Rodent Protection Yes
- Cable type H1Z2Z2-K
- Brand MG WIRES
Description
Solar cable H1Z2Z2-K AR 6 mm2 black – with anti-rodent additive

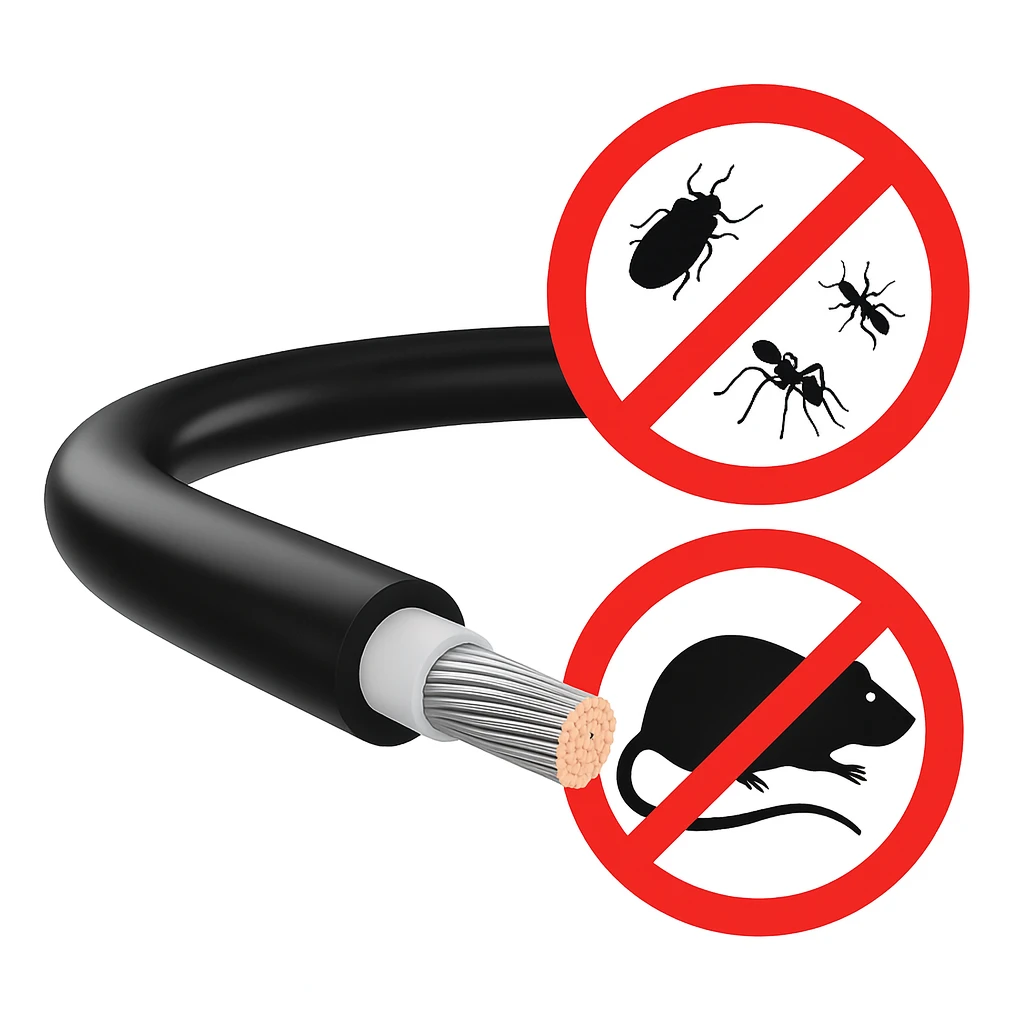

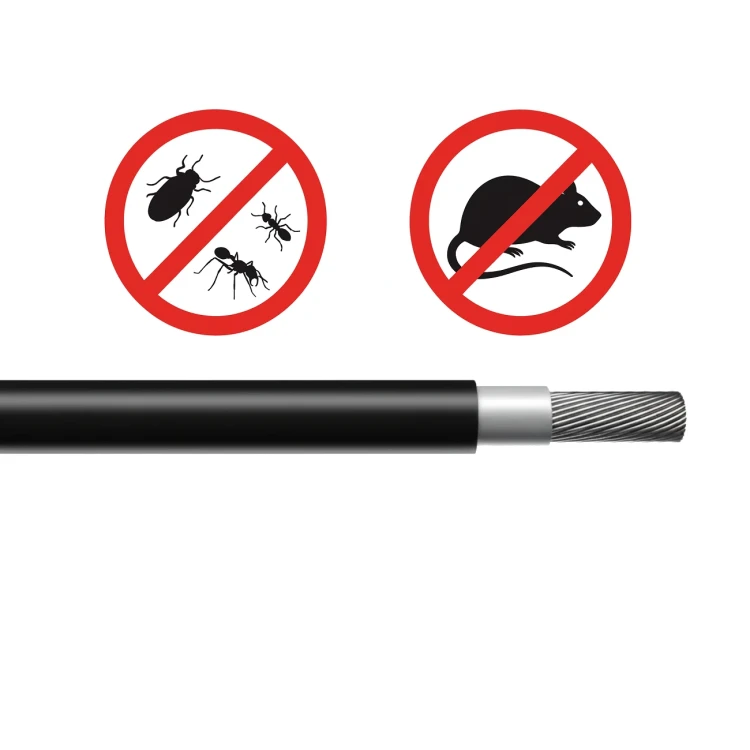

Photovoltaic cable H1Z2Z2-K AR 6 mm2 black is a single-core solar cable with built-in protection against rodents and insects. Thanks to the anti-rodent additive (AR) in the outer sheath, the cable effectively deters mice, rats, martens and termites — the most common cause of wiring damage in ground-mounted and rooftop installations.
Why choose the AR version? PV cable damage caused by rodents is one of the most common reasons for performance drops and costly warranty claims. The AR additive cable eliminates this problem at source — the active substance is permanently embedded in the sheath, so protection works throughout the entire service life of at least 25 years.
The construction based on cross-linked halogen-free compound ensures excellent resistance to UV radiation, ozone and variable weather conditions. The cable meets the requirements of EN 50618:2015 standard and can be used both indoors, on roofs and in extensive ground-mounted power plants — including direct burial.
Technical parameters
- Conductor cross-section: 6 mm2
- Sheath colour: black
- Rated voltage: 1.0/1.0 kV AC | 1.5 kV (1.8 kV) DC
- Operating temperature: from -40°C to +90°C (up to +120°C / 20,000 h)
- Short-circuit temperature: +250°C (max. 5 s)
- Test voltage 50 Hz: 6,500 V AC
- Max. outer diameter: 7.4 mm
- Min. bending radius (fixed installation): 4 × cable O
- Reaction to fire: class Dca according to EN 50575 (CPR)

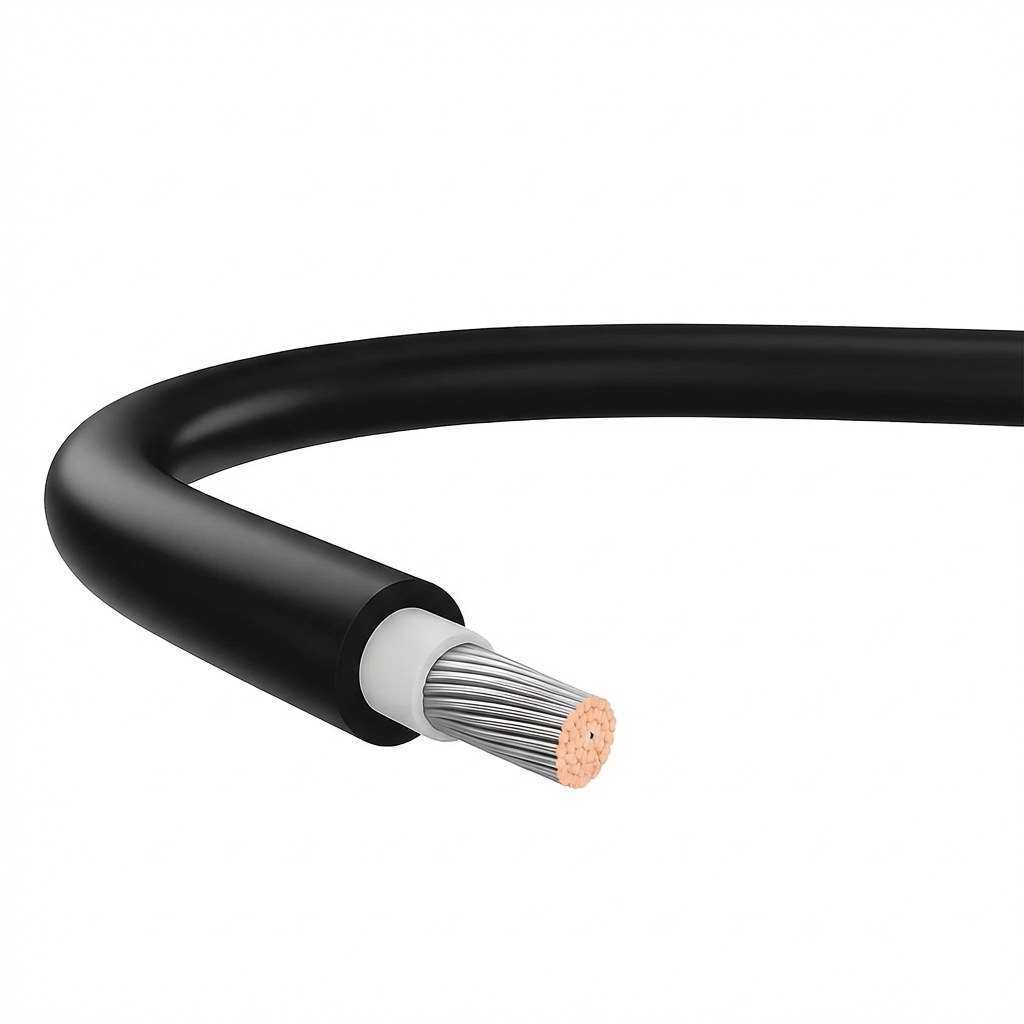

Cable construction
- Conductor: tinned soft copper wires, class 5 according to EN 60228
- Insulation: cross-linked halogen-free compound, white colour
- Sheath: cross-linked halogen-free compound with AR additive, black colour
- Optional: screen of CuSn wires or armouring of FeZn steel wires
Key advantages for installers
- AR protection: permanent anti-rodent additive embedded in the sheath — no additional sleeves or conduits required
- Halogen-free: low smoke emission and toxicity, fire safety according to EN 60332-1
- Versatility: installation on roofs, on the ground, direct burial and indoors
- Chemical resistance: enhanced resistance to hydrolysis, ammonia, acids and alkalis
- Service life: expected service life min. 25 years
- Certification: compliant with EN 50618, certificate no. 1200020
The cable is particularly recommended for ground-mounted installations and agricultural facilities, where the risk of rodent damage is highest. Used for connections between photovoltaic panels and between panels and inverters.
Cable cut to length – important information before you buy
This cable is sold by the metre: we cut it from the drum or coil to exactly the length stated in your order, so you only pay for what you actually need. A length cut to your specification is a made-to-order item and therefore cannot be returned – including under the right to cancel distance contracts. Before placing your order, please check the required length and cross-section carefully.
This does not affect your statutory rights: if the cable is faulty, or the length or cross-section delivered does not match your order, please let us know – we will handle your complaint under the general rules.
