Panel Post Base 60×40 mm with Ø20 mm Rod – Galvanised
Leave feedback on the product

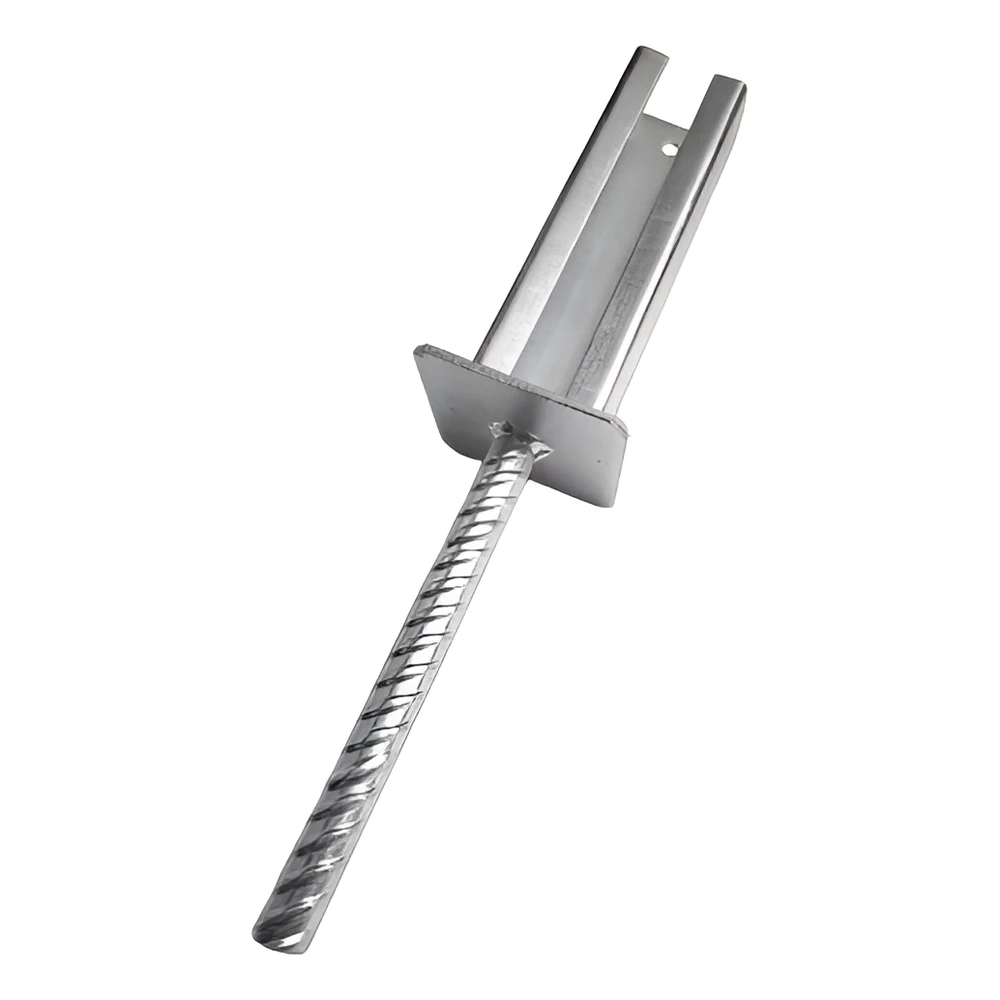

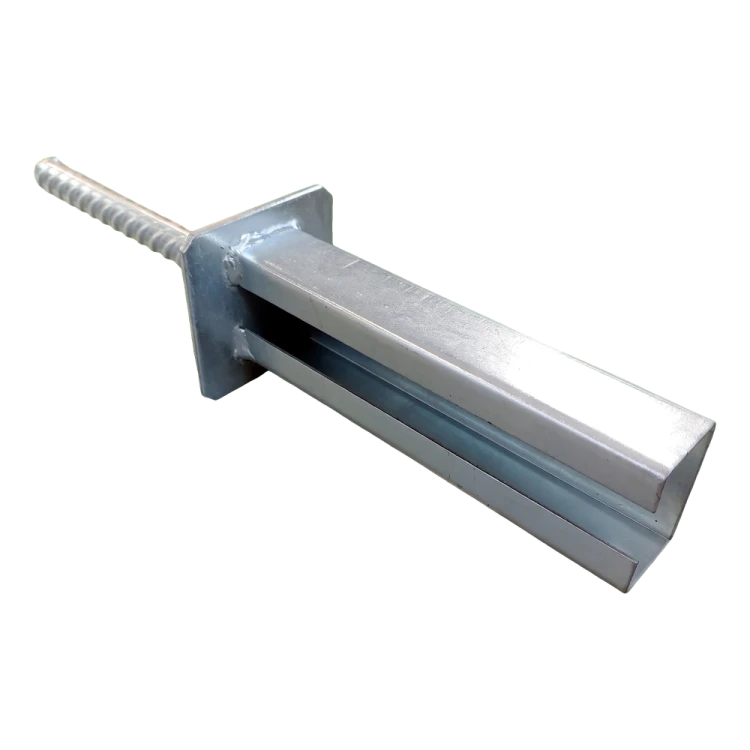

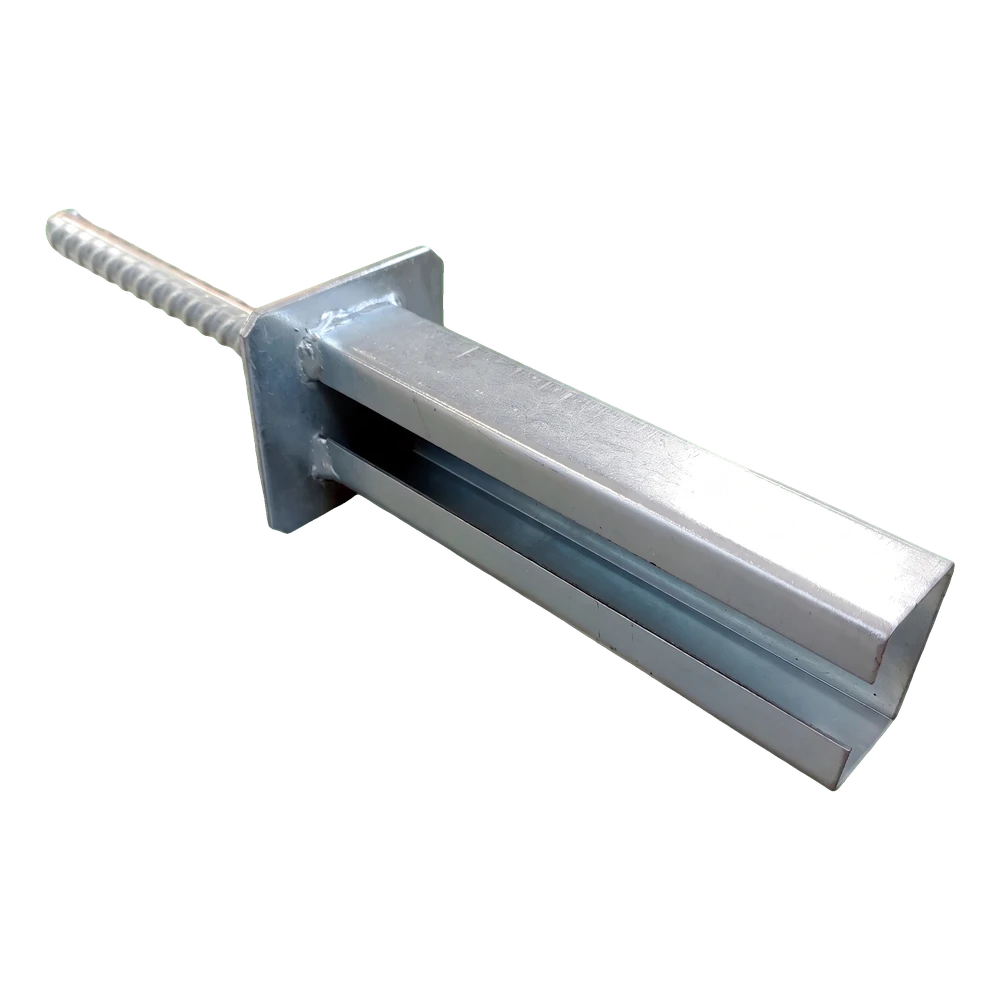

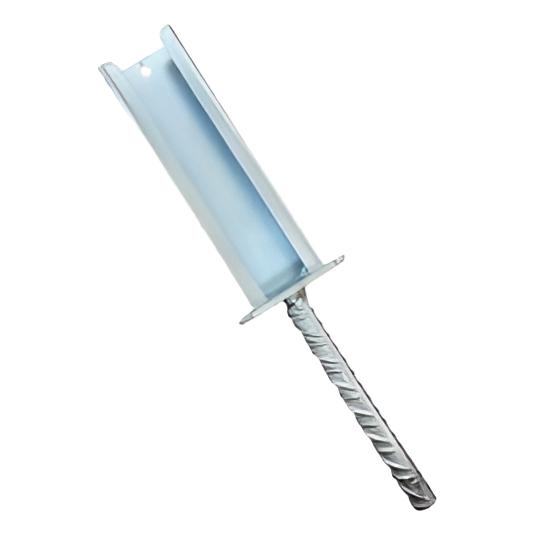

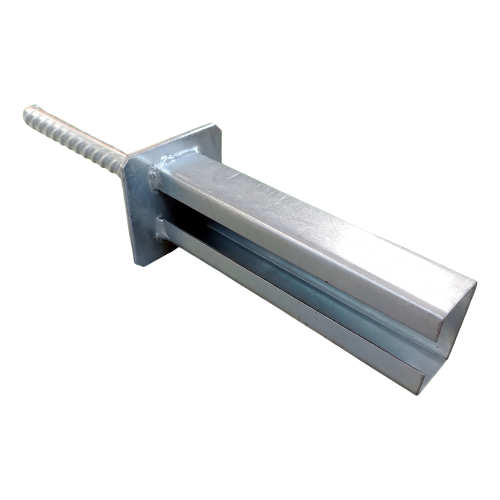

Fence post base 60x40 with ribbed rod, steel, silver zinc-plated. Bearing plate 80x80x4 mm, profile 56x36 mm, length 180 mm, wall thickness 1.5 mm. Rod Ø20 mm, length 170 mm. Weight approx. 1 kg.
Product code: 002-189
Description
Fence Post Base 60x40 with Rod, Silver Zinc-Plated
The 60×40 fence post base with rod is a steel mounting component designed for permanently setting fence posts in a concrete foundation. The construction consists of a guide profile, a bearing plate and a ribbed rod for embedding in concrete — the whole unit protected by a silver zinc-plated coating.
The guide profile acts as a sleeve into which the fence post is slid. The steel bearing plate prevents settling and distributes the load evenly across the foundation. The ribbed rod is set in the concrete footing, and its ribbed surface provides excellent adhesion to the concrete — once the concrete has set, the element will neither rotate nor pull out.
Electro-galvanised zinc plating (silver) protects the base against corrosion both in storage and after it has been set in concrete. The guide profile allows the post to be slipped on easily, with the possibility of minor plumb adjustment before final tightening. The mounting hole in the profile allows the post to be additionally bolted in place, which eliminates the need to weld the anchor on site and significantly speeds up the installation of the entire fence. The base is ready to use straight out of the packaging — simply position it in the formwork or trench, level it and pour in the concrete.
Design features
- Ribbed rod ensures secure anchoring in concrete with no risk of rotation
- Bearing plate stabilises the post vertically and distributes pressure across the foundation
- Guide profile suited to 60 × 40 mm posts, with the possibility of plumb adjustment
- Silver zinc plating protects against atmospheric corrosion and ground moisture
- Mounting hole in the profile allows additional securing with a bolt
- Compact construction — low weight makes transport easier for large orders
- Sales unit: 1 pc — flexible ordering to suit your project
Applications
- Panel fences — setting posts in concrete footings when building residential and industrial fences
- Fences with a plinth wall — mounting posts in a strip foundation or prefabricated plinth
- Gates and wicket gates — individual foundations for the support posts of swing and sliding gate leaves
- Temporary fences — quick concreting of foundations with the possibility of removing the post later
- Garden structures — anchoring posts for pergolas, shelters and canopies based on 60 × 40 mm profiles
Installation comes down to three steps: placing the base in the formwork with the rod pointing downwards, pouring the concrete and levelling the bearing plate, and, once the foundation has set, sliding the post onto the guide profile and securing it with a bolt through the mounting hole. The simple construction eliminates the need for on-site welding, which speeds up the work and reduces equipment requirements on site.
