PSG

PSG wall-mounted handrail bracket 42.4 mm – AISI 304 stainless steel polished

Go to Product feedback

PSG wall-mounted handrail bracket made from AISI 304 stainless steel, polished. Compatible with 42.4 mm tube. Rose plate ø60 mm, arm ø12 mm, projection 75 mm, height 50 mm. 3 mounting holes, weight 0.22 kg. For internal and external balustrades.

Go to full description
with VAT without VAT
Price €6.39
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

[PIM] uchwyty-scienne-poreczy #158

  • Material AISI 304
  • Finish High Gloss
  • Mounting System 42.4 mm

Description

PSG wall-mounted handrail bracket 42.4 mm – AISI 304 stainless steel polished

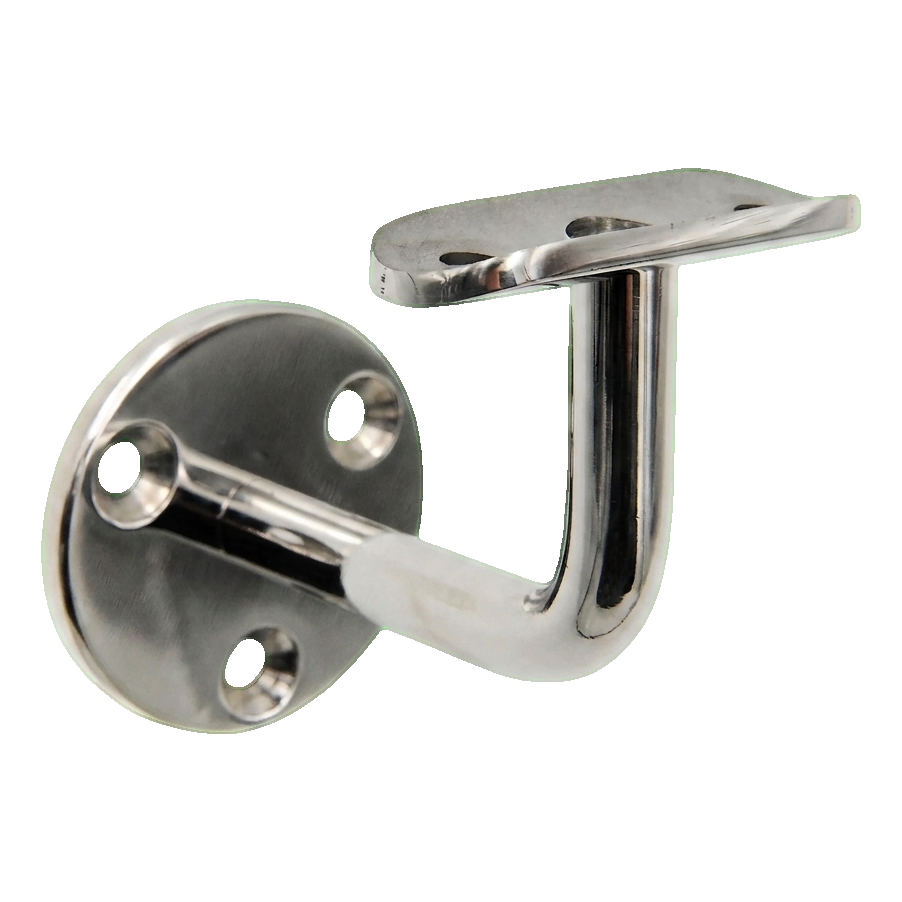

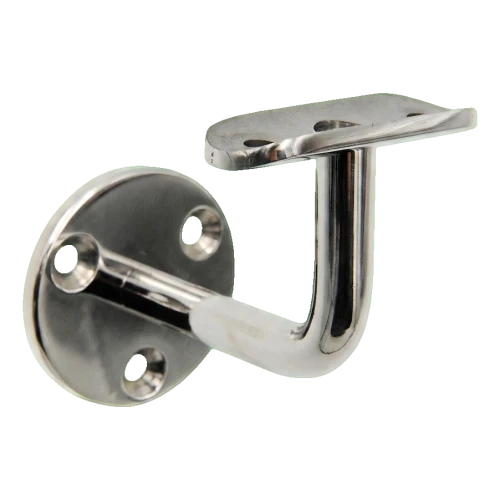

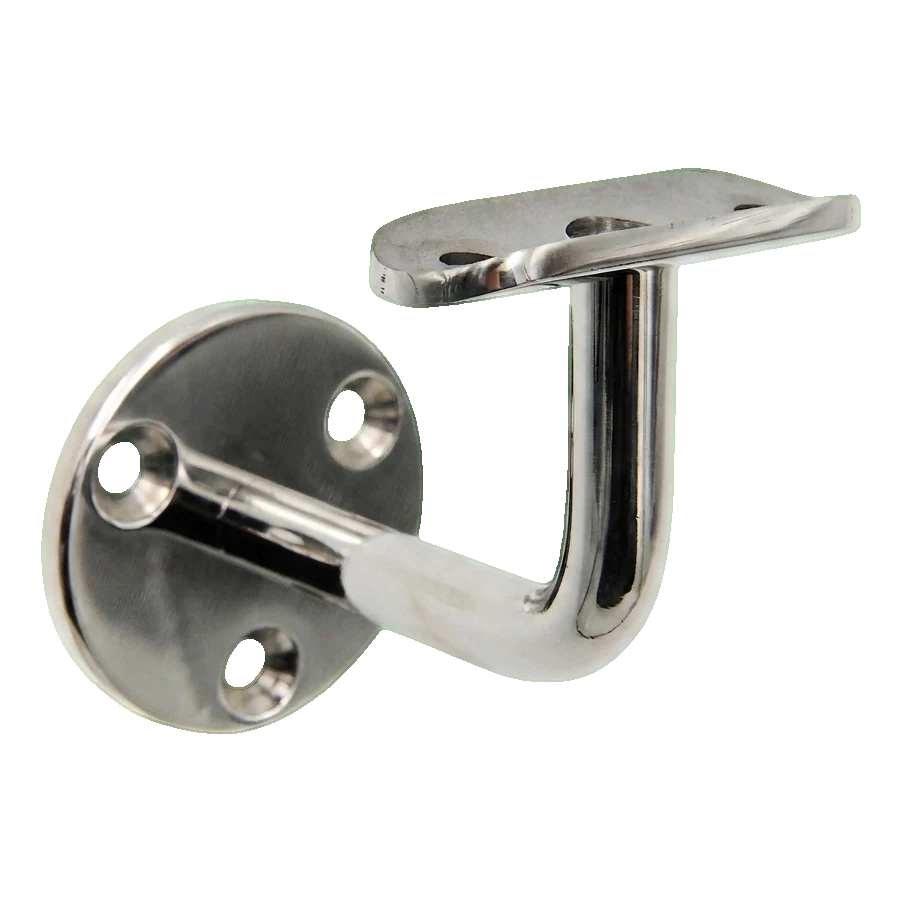

Wall-mounted handrail bracket 42.4 mm made from AISI 304 stainless steel with polished finish – main view
Wall-mounted handrail bracket 42.4 mm made from AISI 304 stainless steel with polished finish – main view

Wall-mounted handrail bracket ø 60/12 mm is a solid structural element for stainless steel balustrades, designed for mounting handrails with tube diameter 42.4 mm directly to the wall. Made from high-grade stainless steel AISI 304 with polished finish (mirror), it ensures years of durability and aesthetic appearance of the balustrade for years to come. For installation companies, this means fewer warranty claims and quick, repeatable installation thanks to three mounting holes in the wall rose plate.

The top plate with mounting holes provides stable handrail support, whilst the profiled arm with diameter ø12 mm guarantees rigidity and secure mounting. The polished stainless steel surface is extremely easy to keep clean — most dirt can be removed with a dry soft microfibre cloth, and greasy stains with a special stainless steel cleaner.

Advantages

  • Years of durability — AISI 304 steel resistant to corrosion and atmospheric conditions
  • Solid structural support — rigid ø12 mm arm and stable top plate
  • Easy installation — 3 mounting holes in rose plate allow quick fixing to wall
  • Easy cleaning — polished surface doesn't retain dirt
  • Aesthetic design — mirror finish enhances visual appeal of balustrade

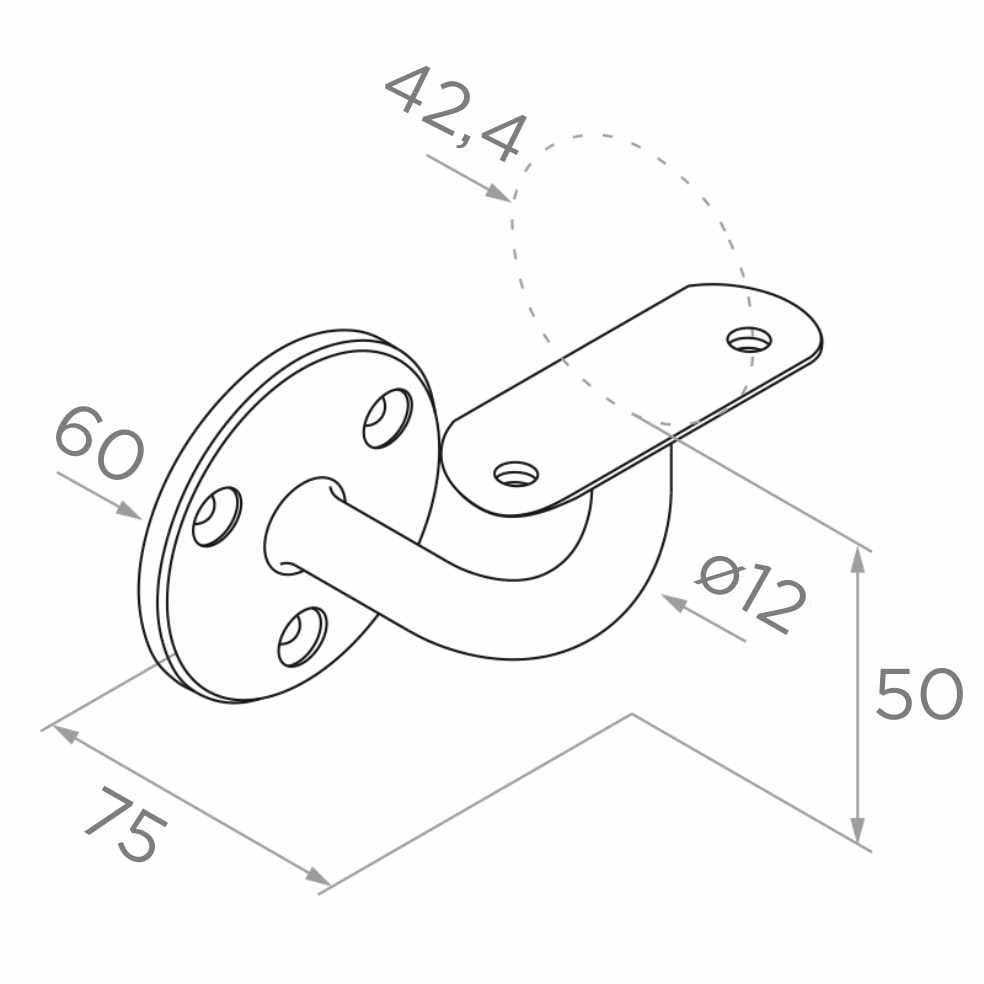

Dimensional drawing of handrail bracket – diagram with dimensions 75×50 mm, rose plate ø60 mm, arm ø12 mm, handrail 42.4 mm
Dimensional drawing of handrail bracket – diagram with dimensions 75×50 mm, rose plate ø60 mm, arm ø12 mm, handrail 42.4 mm

Dimensions and technical parameters

  • Compatible handrail diameter: 42.4 mm
  • Wall rose plate diameter: ø60 mm
  • Arm diameter: ø12 mm
  • Projection from wall: 75 mm
  • Height: 50 mm
  • Mounting holes in rose plate: 3 pcs
  • Material: AISI 304 stainless steel
  • Finish: mirror (polished)
  • Weight: 0.22 kg
  • EAN: 5901289671675

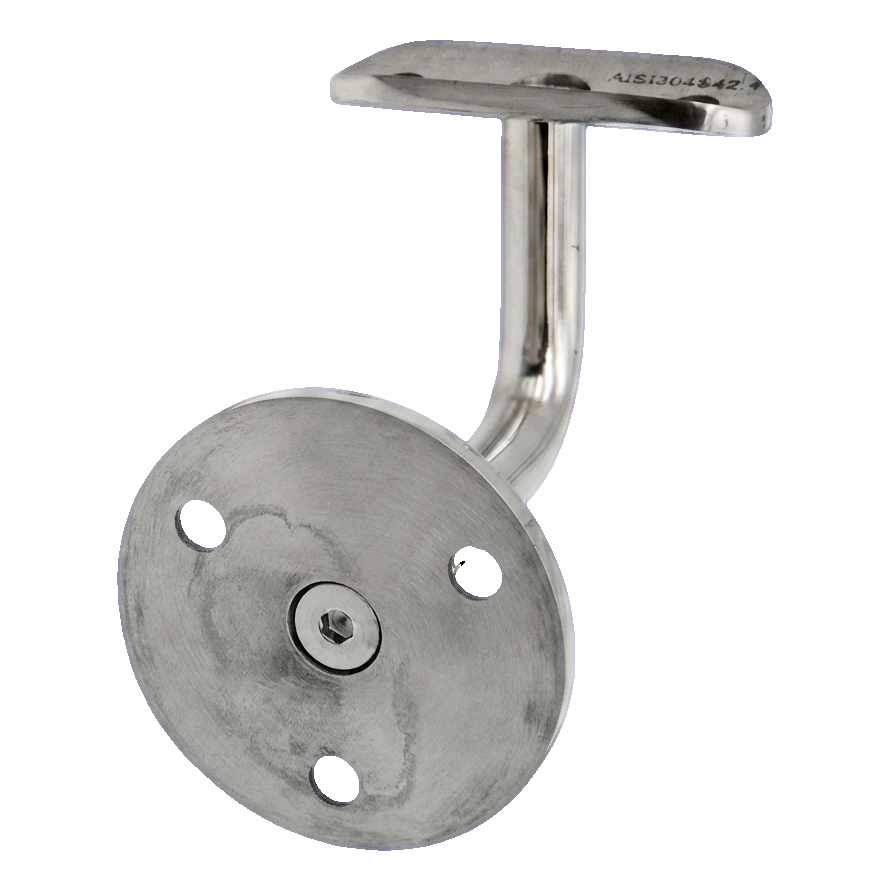

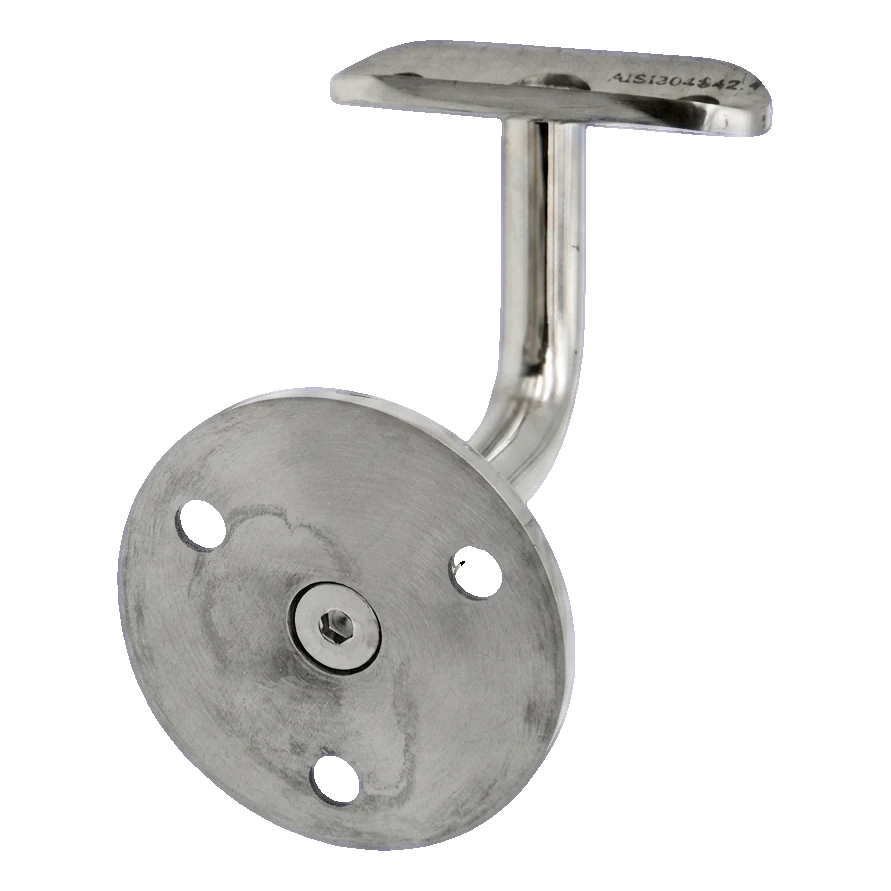

Wall-mounted handrail bracket – view from rose plate side with visible AISI 304 marking and Allen screw
Wall-mounted handrail bracket – view from rose plate side with visible AISI 304 marking and Allen screw

Application

The bracket is intended for professional stair balustrade and wall handrail constructions in residential, office and public buildings. Thanks to the use of AISI 304 stainless steel, it is suitable for both internal applications and external conditions with moderate exposure to atmospheric factors. The 42.4 mm mounting system is one of the most commonly used standards in the stainless steel balustrade industry, ensuring full compatibility with popular tubes and accessories available on the market.
