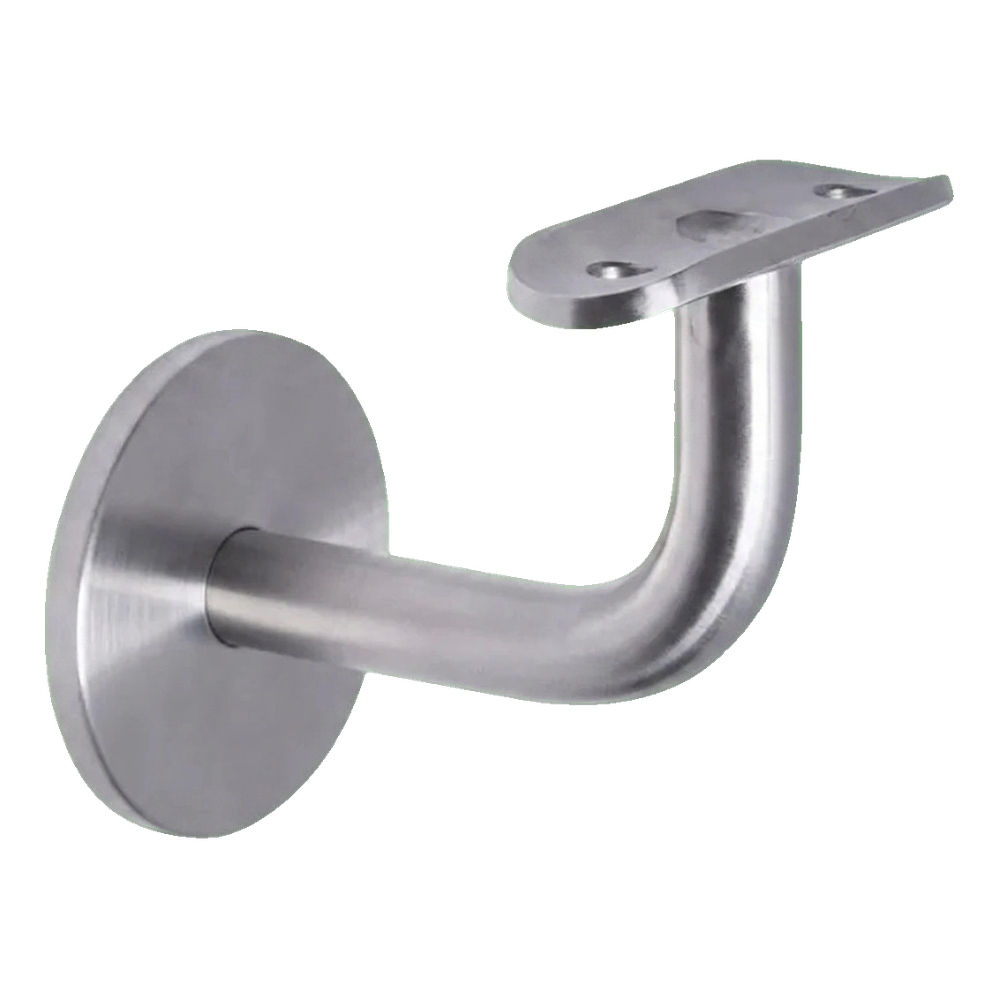

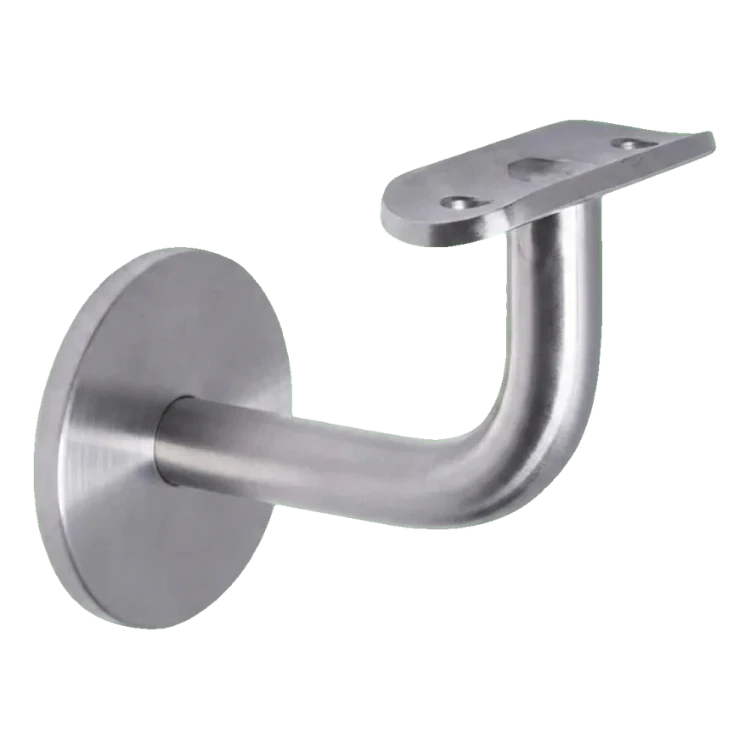

PSG wall bracket for handrail ø42.4 mm – stainless steel AISI 304, rosette ø60 mm
Description
PSG wall bracket for handrail ø42.4 mm – stainless steel AISI 304, rosette ø60 mm
Wall bracket for balustrade handrail designed for pipe systems with diameter ø42.4 mm. Solid construction made from AISI 304 stainless steel ensures long-lasting durability and corrosion resistance — both inside buildings and in partially sheltered outdoor spaces. Aesthetic polished finish ensures the bracket perfectly complements modern balustrades in commercial buildings, office blocks and residential buildings.
The bracket is mounted directly to the wall using an M8 thread, guaranteeing secure and stable handrail mounting. Compact construction with a single mounting hole simplifies the installation process — simply drill one hole, insert the anchor and tighten the bracket. The flat ø60 mm rosette aesthetically conceals the mounting point, giving the installation a professional appearance.

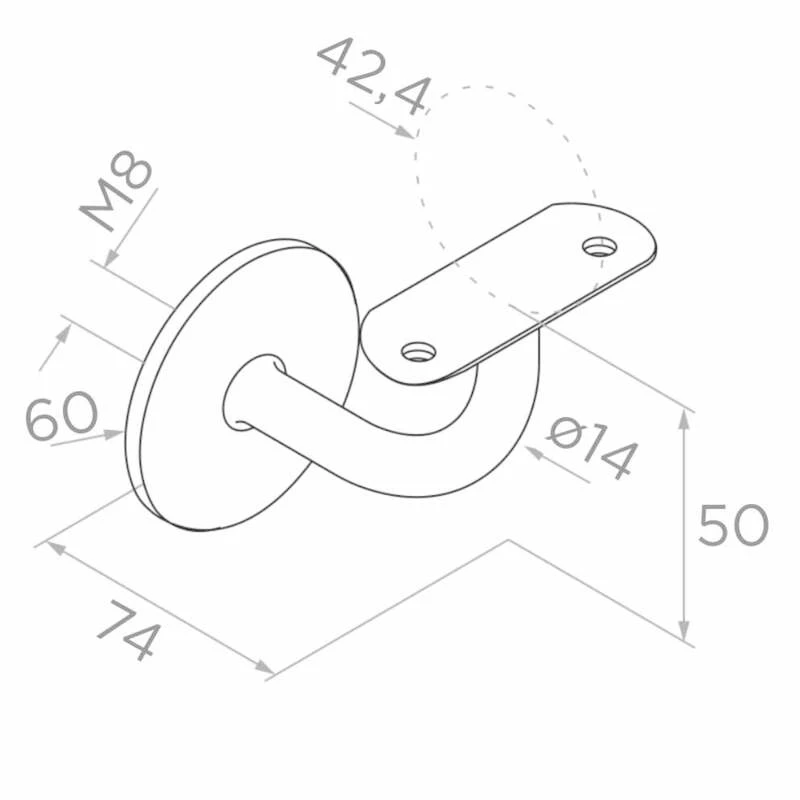

Dimensions and technical data
- Handrail diameter: ø42.4 mm
- Rosette diameter (wall base): ø60 mm
- Arm diameter: ø14 mm
- Projection from wall: 74 mm
- Height (from mounting axis to handrail support): 50 mm
- Mounting thread: M8
- Number of mounting holes: 1
- Material: AISI 304 stainless steel
- Finish: polished
- Weight: 0.29 kg
- EAN: 5901289671644
Easy to keep clean
AISI 304 stainless steel with polished finish is exceptionally easy to maintain. Daily soiling can be removed with a dry, soft microfibre cloth, and stubborn, greasy stains with a dedicated stainless steel cleaning product. This ensures balustrades maintain their aesthetic appearance for years of use, which is particularly important in public buildings.
Application
The bracket is designed for mounting handrails with diameter ø42.4 mm directly to the wall. It finds application in the construction of stair balustrades, handrails along corridors, ramps for disabled people and all installations where the handrail must be wall-mounted. The element belongs to the 42.4 mm balustrade system — compatible with other accessories in this standard.
Technical data
| Material | AISI 304 |
| Finish | High Gloss |
| Mounting System | 42.4 mm |
