PSG wall bracket for 64×68 mm profile for suspended gates
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
1.8 kg
Description
PSG wall bracket for 64×68 mm profile for suspended gates

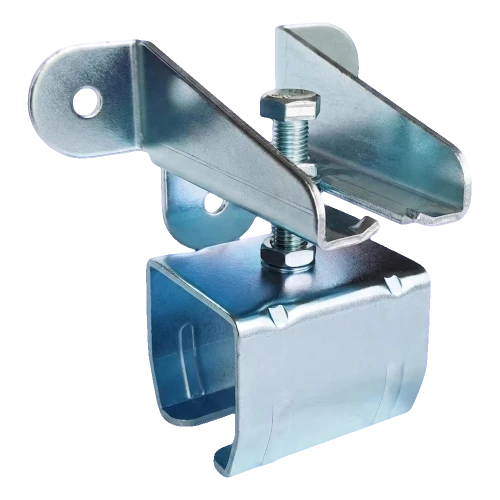

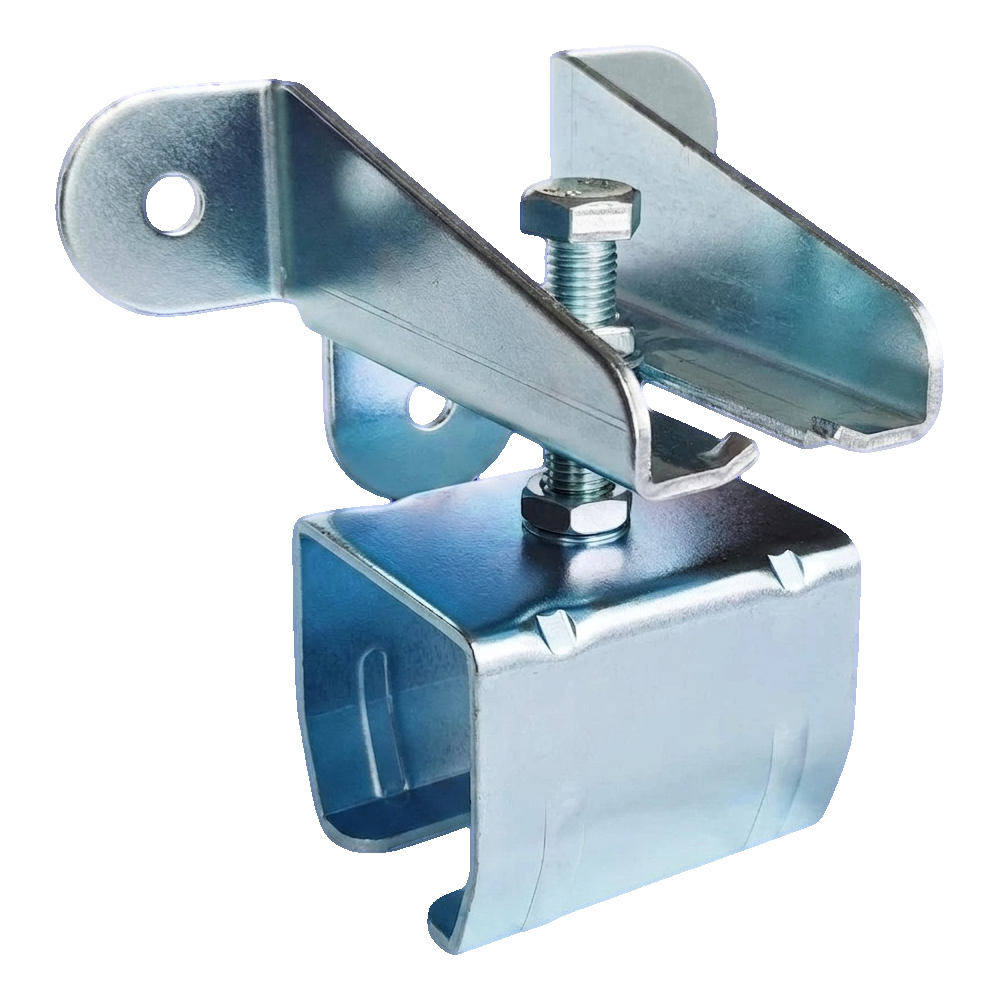

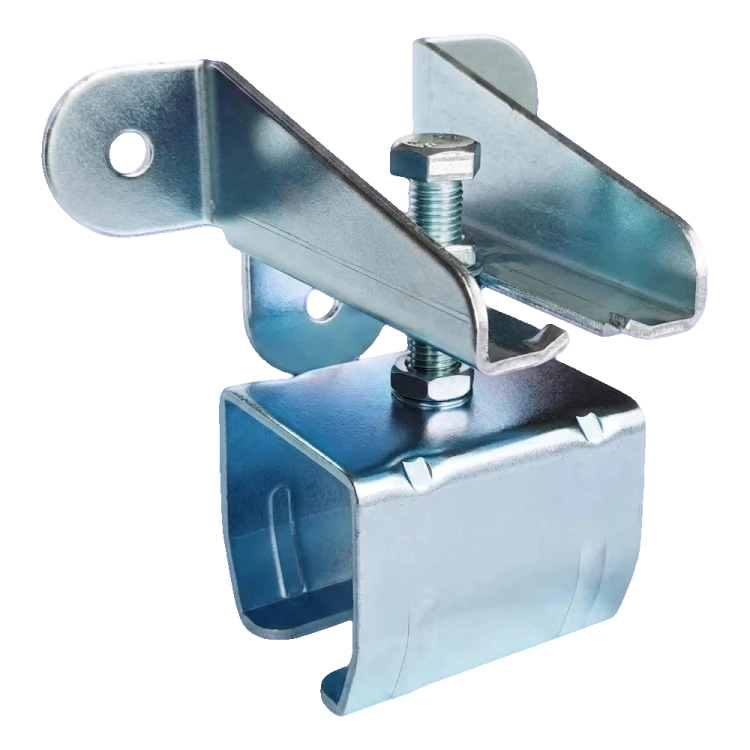

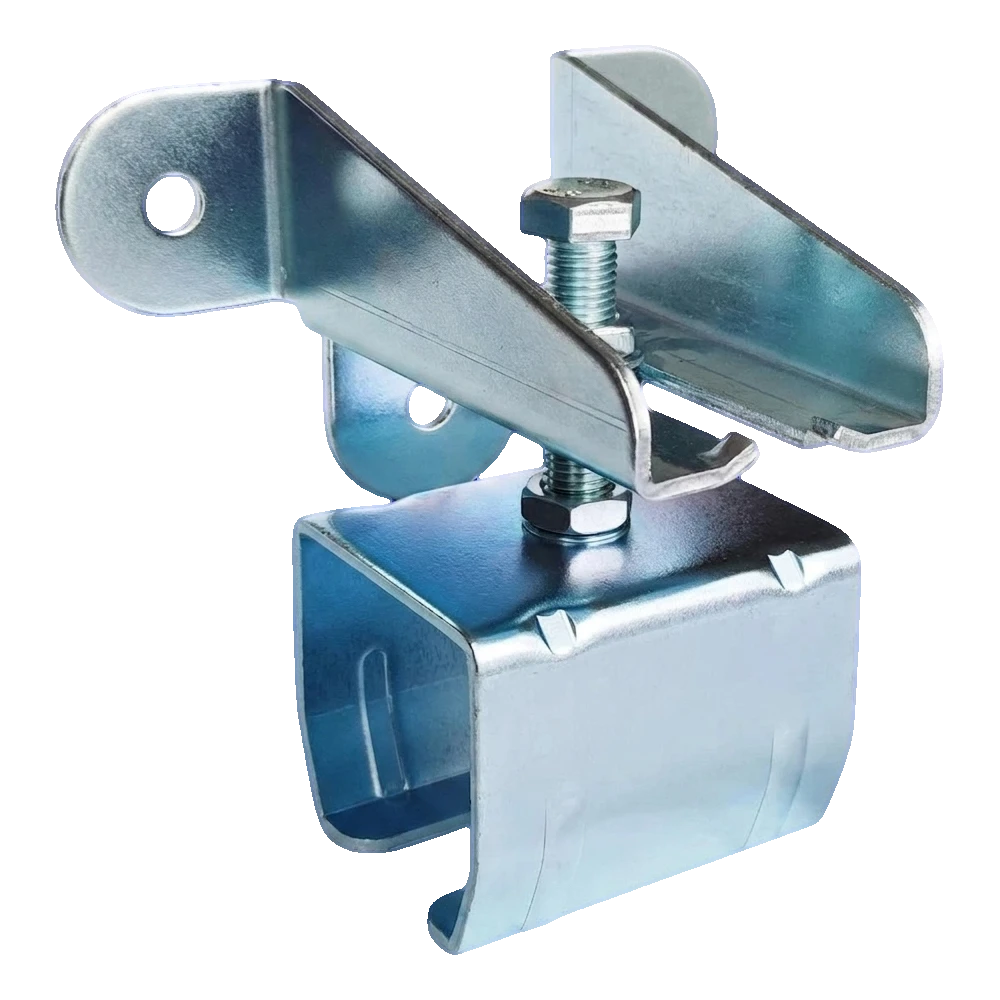

Wall bracket for 64×68 mm profile by PSG is a robust suspension element for running rails used in suspended gate systems. Made from thick steel sheet of 4 mm thickness with zinc coating, it provides durable and stable mounting of the rail to the wall or lintel. Thanks to the M16 bolt with nuts, the installer gains smooth adjustment of distance from wall within the range of 52–125 mm, which allows precise alignment of the gate track even with uneven mounting surfaces.
Three mounting holes with diameter Ø12.5 mm in the angle bracket base enable secure anchoring to the wall using standard expansion bolts, which significantly speeds up installation on site.

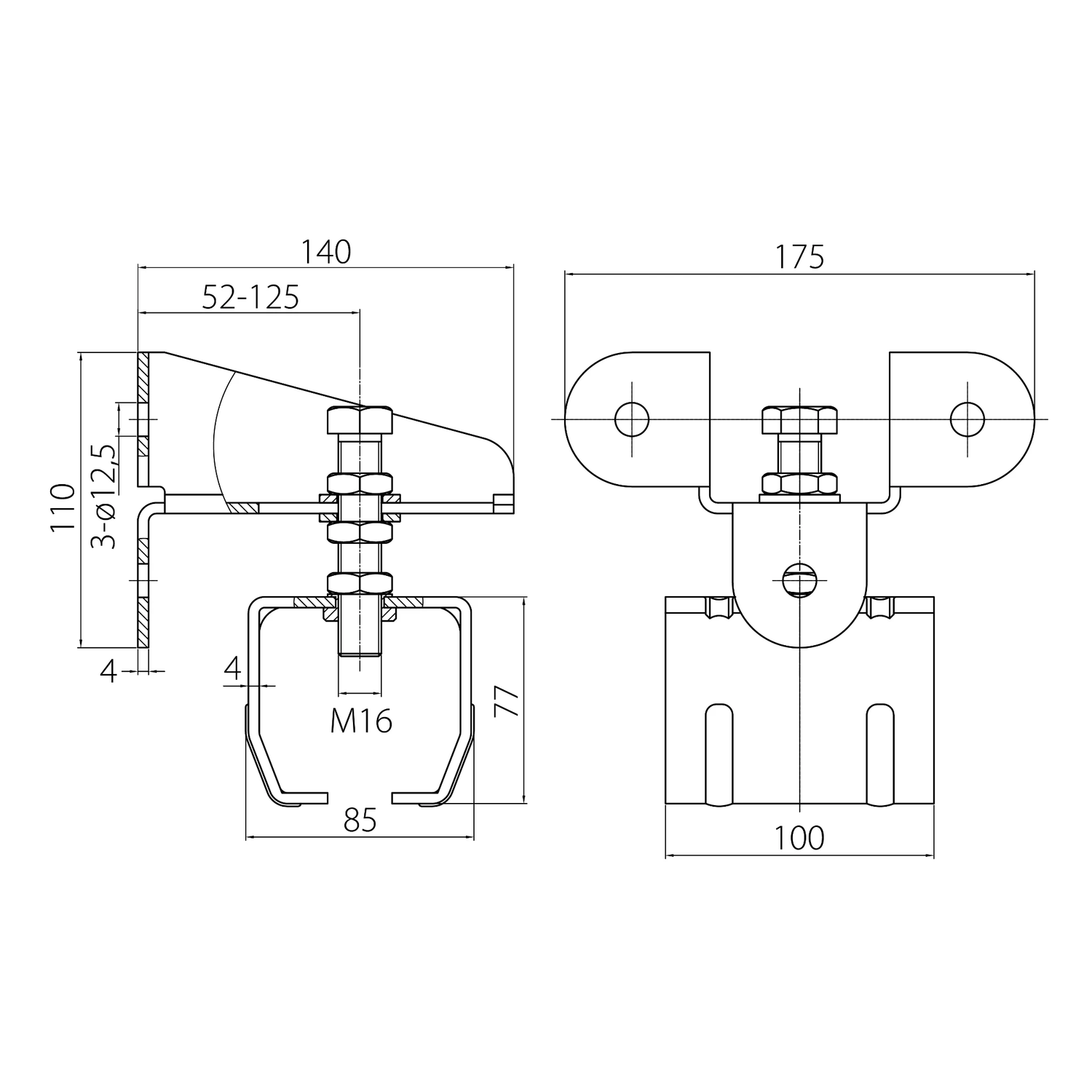

Dimensions and technical data
- Manufacturer: PSG
- Application: running rail (profile) 64×68 mm for suspended gates
- Material: galvanised steel, sheet thickness 4 mm
- Adjustment bolt thread: M16
- Wall distance adjustment range: 52–125 mm
- Bracket height (mounting base): 110 mm
- Total depth (from wall): 140 mm
- Total width: 175 mm
- Profile holder dimensions: width 85 mm × height 77 mm × length 100 mm
- Mounting holes: 3 × Ø12.5 mm
- Total height (H): 250 mm
- Total length (L): 175 mm
- Weight: 1.8 kg
- EAN: 5903313203739
Advantages for installers
- Smooth adjustment of distance from wall (52–125 mm) — easy adaptation to irregularities and various mounting conditions
- 3 mounting holes Ø12.5 mm — quick and secure anchoring using standard expansion plugs
- Thick 4 mm sheet with zinc coating — high load capacity and corrosion resistance
- M16 bolt — reliable transfer of loads from gate leaf weight
- Compatibility with 64×68 mm running rails — standard dimension used in suspended gates
